Wallbox dé 22 kW EV Wall Charger with 10 m Cable, Type 2
dé
| Products ID: | 186409 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005268 |
Delivery options to:

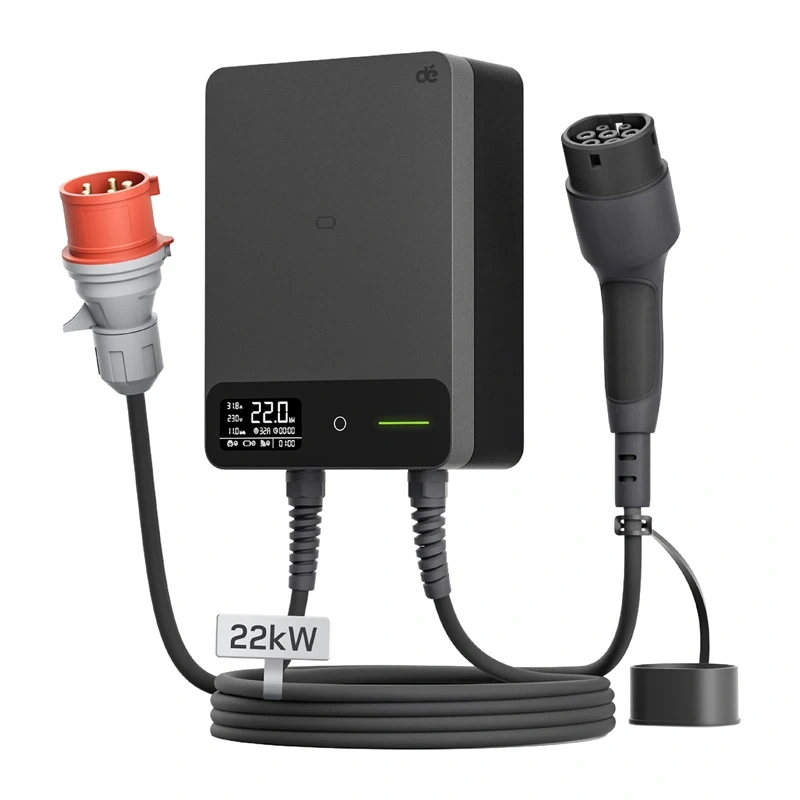

Choose countryThe DEPOW 22 kW Wallbox wall-mounted EV charger with a 10-meter cable is designed for charging electric vehicles equipped with a Type 2 connector. It provides up to 22 kW of charging power, supports 1-phase and 3-phase electrical installations, and features current adjustment from 6 to 32 A via a mobile application.
Parameter Adjustment and Charging Scheduling
Adjusting the current between 6 and 32 A enables tailoring the charging session to the capabilities of the power supply. The companion application provides the following controls:
- Remote start and stop
- Real-time process monitoring
- Current adjustment
- Daily charging schedules for specific hours
- Charging history logs
Safety Features and Temperature Control
The charger is equipped with a Type B RCD (AC 30 mA + DC 6 mA) and monitoring circuits for continuous safety during operation. The system safeguards against overload, overvoltage, undervoltage, leakage current, and short circuits, while monitoring grounding and internal temperature. Dedicated LED indicators display power, standby, charging, and fault states alongside the LCD screen.
Suitable for Garages and Outdoor Installation
The control module enclosure is rated IP54, while the connection achieves an IP55 rating when the Type 2 plug is engaged. Engineered for operating temperatures from -25°C to 55°C, this 297 × 214 × 105 mm unit can be mounted on garage walls or prepared exterior structures, with the 10 m cable offering flexible vehicle placement.
| Manufacturer | DEPOW |
|---|---|
| Model | deWB22B10A_DL |
| Maximum power | 22 kW |
| Cable length | 10 m |
| Voltage | 400 V AC |
| Frequency | 50 Hz |
| Support | 1-phase / 3-phase installation |
| Current adjustment range | 6–32 A |
| Connector | Type 2 |
| Connectivity | Wi-Fi / Bluetooth |
| Control | app |
| Display | LCD |
| App features | remote start/stop, real-time monitoring, current adjustment, charging schedule, charging history |
| Enclosure protection rating | IP54 |
| Protection rating when connected via Type 2 | IP55 |
| Operating temperature | -25°C to 55°C |
| Storage temperature | -40°C to 80°C |
| Ambient humidity | 5–95% RH, non-condensing |
| Control module dimensions | 297 × 214 × 105 mm |
| Standby power consumption | less than 5 W |
| Total harmonic distortion (THD) | ≤5% |
| RCD | Type B, AC 30 mA + DC 6 mA |
| Protections | overload, overvoltage, undervoltage, leakage current, short circuit, grounding, and temperature monitoring |
| LED indicators | power, standby, charging, error |
| Intended Use | Indoors / Outdoors |
What is the length of the integrated charging cable?
The wallbox is equipped with a 10-meter charging cable terminated with a Type 2 connector.
Can the charging current be adjusted?
Yes, the charging current can be configured between 6 A and 32 A via the mobile app.
What safety protections are integrated into the wallbox?
It includes a Type B RCD (AC 30 mA + DC 6 mA) along with protections against overload, overvoltage, undervoltage, short circuit, leakage current, grounding faults, and overheating.
