Portable EV charger dé 11 kW, Type 2, 7m cable
dé
| Products ID: | 186397 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005107 |
Delivery options to:

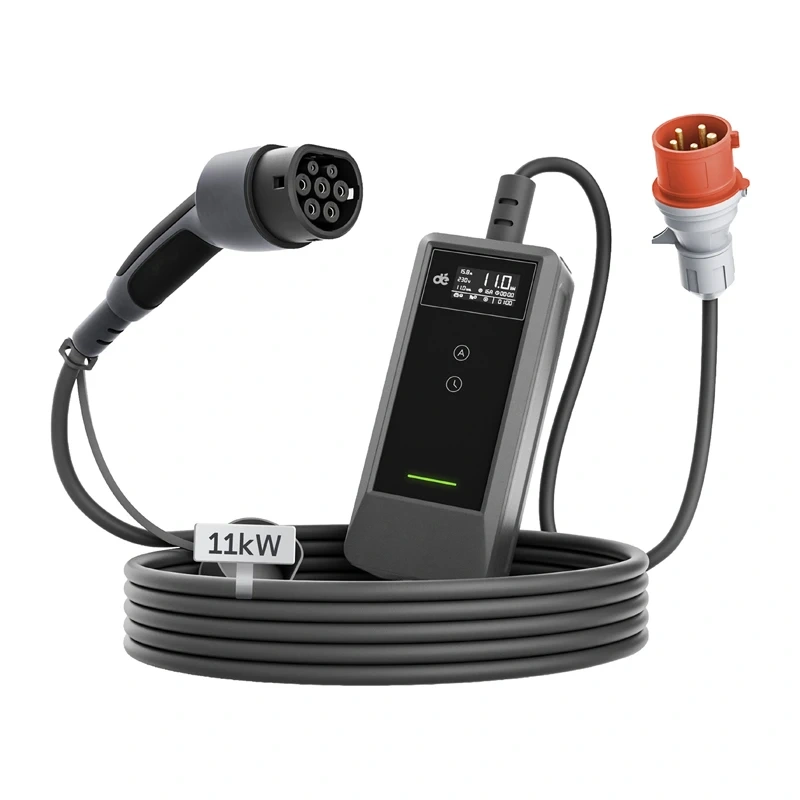

Choose countryThe portable EV charger is a three-phase 11 kW charging device operating at 400 V, designed for electric vehicles fitted with a Type 2 inlet. Operating in Mode 2 with Plug & Play convenience, it provides dependable charging at home, in the garage, or on the road.
Current Adjustment and Clear Monitoring
Five selectable current settings (6 A, 8 A, 10 A, 13 A, and 16 A) enable users to match charging performance to the available electrical installation. The integrated LCD display presents real-time operating metrics, while dedicated LED indicators clearly show power, standby status, active charging, and fault alerts.
Scheduled Charging and 7-Meter Reach
A built-in scheduled charging timer allows charging sessions to begin at a preset time, making it practical to charge vehicles overnight. The 7-meter cable provides ample reach to position the vehicle conveniently relative to the power supply.
Comprehensive Safety and Durability
Equipped with a 30 mA Type A AC RCD and 6 mA DC residual current protection, the unit protects against overvoltage, undervoltage, overload, leakage current, and short circuits. It also features relay welding inspection alongside continuous temperature and grounding monitoring. The control box carries an IP66 rating and the Type 2 connector is rated IP55 for indoor and outdoor use.
| Manufacturer | DEPOW |
|---|---|
| Model | deM2D11B10 |
| Maximum Power | 11 kW |
| Power Supply | Three-phase |
| Voltage | 400 V AC |
| Frequency | 50 Hz |
| Connector | Type 2 |
| Cable Length | 7 m |
| Current Setting | 6 A / 8 A / 10 A / 13 A / 16 A |
| Application | Indoor and outdoor |
| Control box dimensions | 220 × 95 × 57 mm |
| Control box protection rating | IP66 |
| Type 2 connector protection rating | IP55 |
| Operating temperature | from -25°C to 50°C |
| Storage temperature | from -40°C to 80°C |
| Operating humidity | 5–95% RH, non-condensing |
| Total harmonic distortion (THD) | ≤5% |
| Power consumption in standby mode | ≤5 W |
What current options can be selected on this charger?
Current can be adjusted across five discrete levels: 6 A, 8 A, 10 A, 13 A, and 16 A.
Can this portable charger be operated outdoors?
Yes, it is designed for both indoor and outdoor use. The control box has an IP66 ingress protection rating, while the Type 2 plug meets IP55 standards.
What protection systems are included?
It incorporates 30 mA AC and 6 mA DC residual current protection, protections against overload, short circuit, overvoltage, undervoltage, and leakage, as well as grounding, temperature, and relay welding monitoring.
