Portable EV Charger DEPOW 11 kW Type 2 with 15 m Cable
dé
| Products ID: | 186399 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005138 |
Delivery options to:

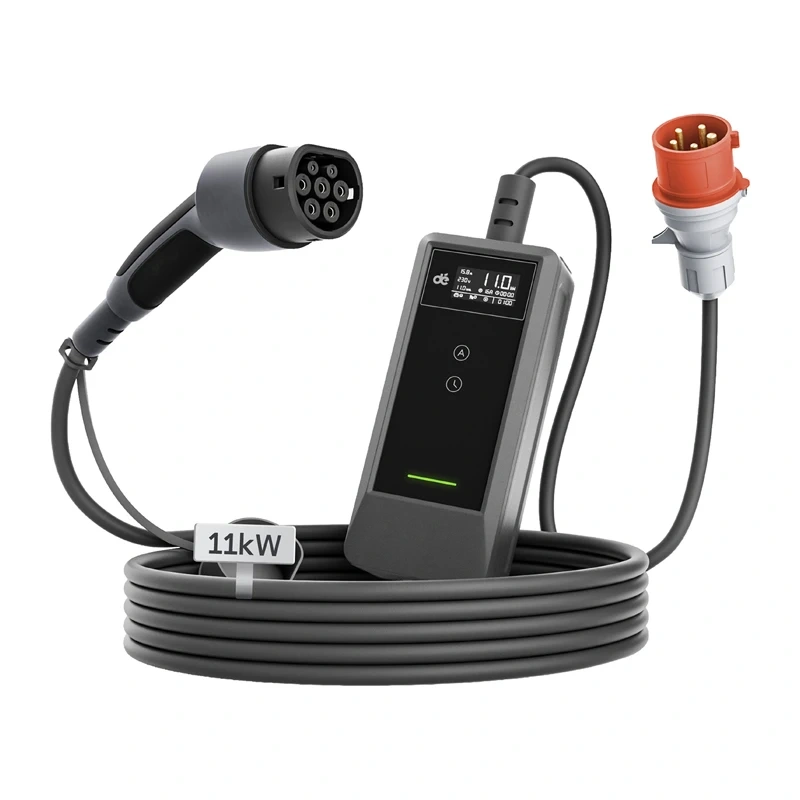

Choose countryThe DEPOW 11 kW portable EV charger is a three-phase device operating at 400 V, designed to charge electric vehicles equipped with a Type 2 connector. Operating in Mode 2, it features a Plug & Play setup suitable for use in garages, driveways, or while traveling.
Adjustable Current and Clear Monitoring
The charger offers five current settings: 6 A, 8 A, 10 A, 13 A, and 16 A, allowing you to match charging parameters to your electrical supply. The built-in LCD display tracks operating status and metrics, while LED indicators on the control box show power, standby mode, charging progress, and faults.
Scheduled Charging and 15-Meter Cable
A scheduled charging function allows you to program the device to begin charging at a specific time, such as overnight. The 15-meter cable offers substantial reach, providing flexibility when positioning your vehicle relative to the power outlet.
Comprehensive Protection and Weather Resistance
Equipped with a 30 mA Type A AC RCD and a 6 mA DC safeguard, the unit also includes protection against overload, overvoltage, undervoltage, ground faults, and short circuits. It continuously monitors grounding, control box temperature, and relay function. The control box carries an IP66 rating, while the Type 2 plug meets IP55 standards for dependable indoor and outdoor operation.
| Manufacturer | DEPOW |
|---|---|
| Model | deM2D11B15A_DL |
| Maximum power | 11 kW |
| Power supply | three-phase |
| Voltage | 400 V AC |
| Frequency | 50 Hz |
| Connector | Type 2 |
| Cable length | 15 m |
| Current settings | 6 A / 8 A / 10 A / 13 A / 16 A |
| Application | indoor and outdoor |
| Control box dimensions | 220 × 95 × 57 mm |
| Control box protection rating | IP66 |
| Type 2 plug protection rating | IP55 |
| Operating temperature | from -25°C to 50°C |
| Storage temperature | from -40°C to 80°C |
| Operating humidity | 5–95% RH, non-condensing |
| Total harmonic distortion (THD) | ≤5% |
| Standby power consumption | ≤5 W |
What current levels can be selected?
Current can be adjusted across five levels: 6 A, 8 A, 10 A, 13 A, and 16 A.
What are the ingress protection ratings of this charger?
The control box is rated IP66, and the Type 2 vehicle connector is rated IP55.
Can charging be scheduled in advance?
Yes, the charger includes a scheduled charging function that allows you to set the start time.
