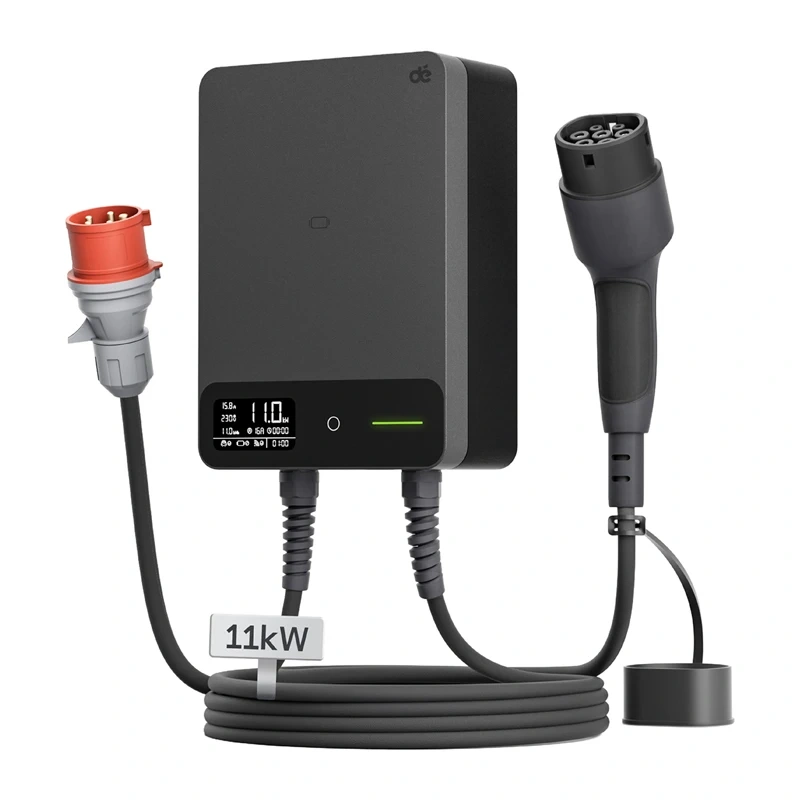

Wallbox dé 11 kW Wall-Mounted EV Charger with 10 m Type 2 Cable
dé
| Products ID: | 186406 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005220 |
Delivery options to:
Choose countryThe Wallbox 11 kW wall-mounted EV charger with a 10-meter cable is engineered for charging electric vehicles at home, in a garage, or on private premises. Delivering up to 11 kW of power, it features adjustable charging current from 6 to 16 A and compatibility with both single-phase and three-phase power supplies.
Current Control and Scheduling
Adjustable current settings between 6 and 16 A allow users to tailor electrical load to installation limits. The scheduling function enables charging during specific time frames, such as overnight. Operational data is visible in real time on the built-in LCD display.
App Connectivity and RFID Access
Integrated Wi-Fi and Bluetooth connectivity support remote management via mobile application. Users can start or stop sessions remotely, monitor status in real time, and view historical charging data. Built-in RFID authentication allows access restriction to authorized users.
Built-In Safety and Ingress Protection
Safety features include a Type B residual current device (AC 30 mA + DC 6 mA), thermal monitoring, and protection against overcurrent, overvoltage, undervoltage, ground faults, short circuits, and improper grounding. The wallbox housing is IP54 rated, and the connected Type 2 plug carries an IP55 rating for indoor and outdoor installations.
| Manufacturer | DEPOW |
|---|---|
| Model | deWB11B10A_DL |
| Cable length | 10 m |
| Maximum charging power | 11 kW |
| Power supply | 400 V AC, 50 Hz |
| Supports | 1-phase and 3-phase installations |
| Current adjustment | 6–16 A |
| Connector | Type 2 |
| Connectivity | Wi-Fi / Bluetooth |
| Display | LCD |
| RFID support | Yes |
| Scheduled charging | Yes |
| Remote start and stop of charging | Yes |
| Real-time monitoring | Yes |
| Charging history | Yes |
| Wallbox IP rating | IP54 |
| IP rating of the connected Type 2 connector | IP55 |
| RCD | Type B AC 30 mA + DC 6 mA |
| Protections | Overcurrent, overvoltage, undervoltage, ground fault, short circuit, improper grounding, and overheating |
| Operating temperature range | from -25°C to 55°C |
| Storage temperature range | from -40°C to 80°C |
| Operating humidity | 5–95% RH, non-condensing |
| Total harmonic distortion (THD) | ≤5% |
What connector type and cable length does this charger have?
It is equipped with a 10-meter integrated charging cable fitted with a standard Type 2 connector.
How can the charger be controlled?
The charger can be controlled via Wi-Fi and Bluetooth using a smartphone app for remote start/stop, monitoring, scheduling, and history, or activated using RFID cards.
