Wallbox dé 11 kW Electric Car Charger, 7 m Cable, Type 2
dé
| Products ID: | 186400 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005213 |
Delivery options to:

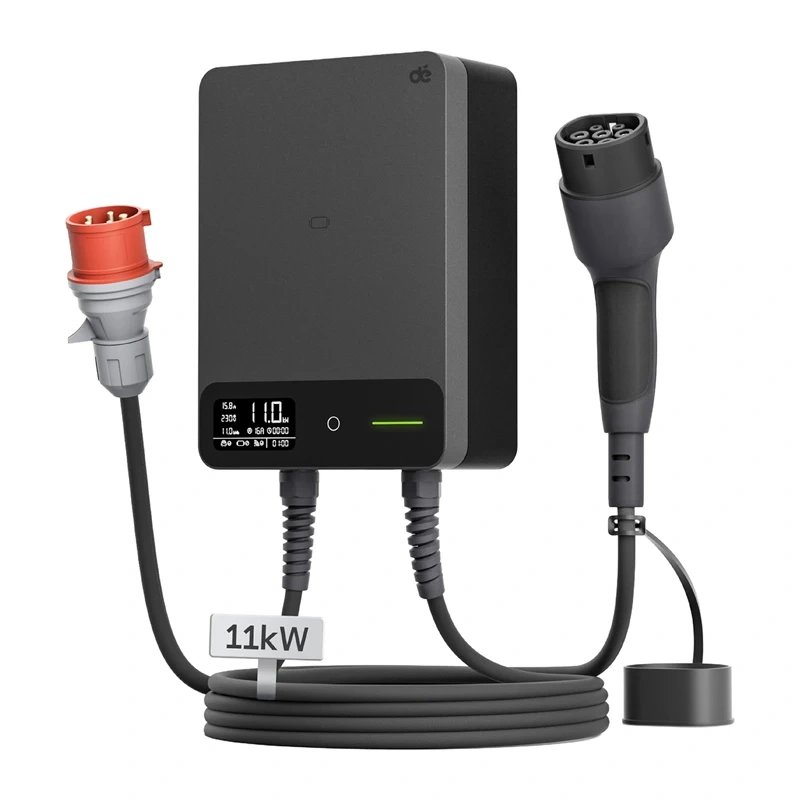

Choose countryThe DEPOW Wallbox 11 kW electric car charger with an integrated 7-meter cable is designed for charging electric vehicles at home, in garages, or on private property. Providing up to 11 kW of power with current regulation between 6 and 16 A, it supports both single-phase and three-phase electrical systems to match your local installation capacity.
Current Control and Scheduled Charging
Adjustable current settings from 6 to 16 A allow you to balance electrical load based on current needs. The scheduling feature enables planning charging sessions for specific hours, such as overnight. Real-time operating parameters can be viewed directly on the integrated LCD display.
App Management via Wi-Fi and Bluetooth
Built-in Wi-Fi and Bluetooth connectivity allow remote control through a mobile application. Users can start or stop charging remotely, observe charging metrics in real time, and view historical session data. RFID authentication helps control access and prevent unauthorized operation.
Safety Systems and Weather Protection
The charger is equipped with a 30 mA AC + 6 mA DC RCD and comprehensive protections against overcurrent, overvoltage, undervoltage, leakage current, short circuit, incorrect grounding, and overheating. With an IP54-rated housing and an IP55 rating for the connected Type 2 plug, it is suited for operating in temperatures between -25°C and 55°C.
| Manufacturer | DEPOW |
|---|---|
| Model | deWB11B05A_DL |
| Cable length | 7 m |
| Maximum charging power | 11 kW |
| Power supply | 400 V AC, 50 Hz |
| Supports | 1-phase and 3-phase installations |
| Current control | 6–16 A |
| Connector | Type 2 |
| Connectivity | Wi-Fi / Bluetooth |
| Display | LCD |
| RFID support | Yes |
| Scheduled charging | Yes |
| Remote start and stop of charging | Yes |
| Real-time monitoring | Yes |
| Charging history | Yes |
| Wallbox protection rating | IP54 |
| Protection rating of the connected Type 2 connector | IP55 |
| RCD | Type B AC 30 mA + DC 6 mA |
| Protections | Overcurrent, overvoltage, undervoltage, earth leakage, short circuit, improper grounding, and overheating |
| Operating temperature range | from -25°C to 55°C |
| Storage temperature range | from -40°C to 80°C |
| Operating humidity | 5–95% RH, non-condensing |
| Total harmonic distortion (THD) | ≤5% |
What type of charging connector is attached?
The charger includes a permanently connected 7-meter cable fitted with a standard Type 2 connector.
Can the charging current be adjusted?
Yes, the charging current can be regulated between 6 A and 16 A to suit your electrical installation.
Does the unit support remote app control?
Yes, it features Wi-Fi and Bluetooth connectivity for remote control, schedule planning, and monitoring via a mobile application.
