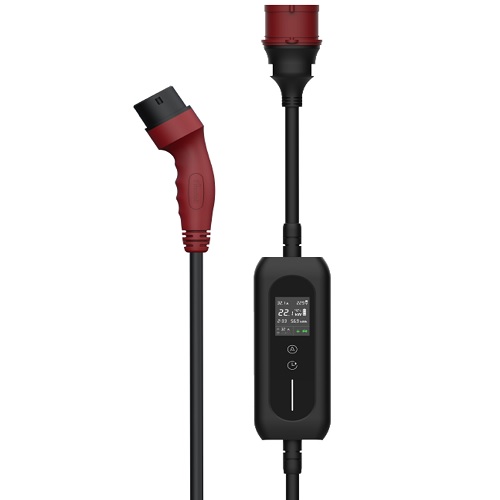

Portable EV Charger Type 2 to CEE Red, 11kW, 6-16A, 3-Phase, 5m
241.00 €
Hismart
Products ID: 187230
In supplier warehouse
Available to order: 5 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryPortable electric vehicle charger with a Type 2 vehicle connector and red CEE industrial plug, designed for charging from a 3-phase power supply.
Key Features
- 3-phase design and 16A current support charging power up to 11kW.
- Selectable charging current: 6A, 8A, 10A, 13A, or 16A.
- IP66 rating provides dust and water resistance, making it suitable for outdoor use.
- Compact dimensions and hanging option ensure convenient storage and transport.
- 5-meter cable provides practical reach for daily connection.
| Charging current | 6A / 8A / 10A / 13A / 16A (3-phase) |
|---|---|
| Max. charging power | 11kW (3-phase) |
| Rated voltage | 230V AC |
| Cable length | 5m |
| Power connector | IEC 60309, CEE Red, 16A, 5-pin |
| EV plug | IEC 62196, Type 2 (European standard), Mennekes, 7-pin |
| Cable cross-sectional area | 5x2.5mm² + 1x0.75mm² |
| Conductors | 3P + PE + N |
| Protection rating | IP66 |
| Operating temperature | -25°C to +45°C |
| Certificates | CE, TUV |
| Color | Black |
| Warranty | 24 months |
| EAN | 9990000200955 |
|---|
What is the maximum charging output of this charger?
The maximum charging power is 11kW when used with a 3-phase supply at 16A.
Can this EV charger be used outdoors?
Yes, it has an IP66 rating that protects the unit against water and dust intrusion.
