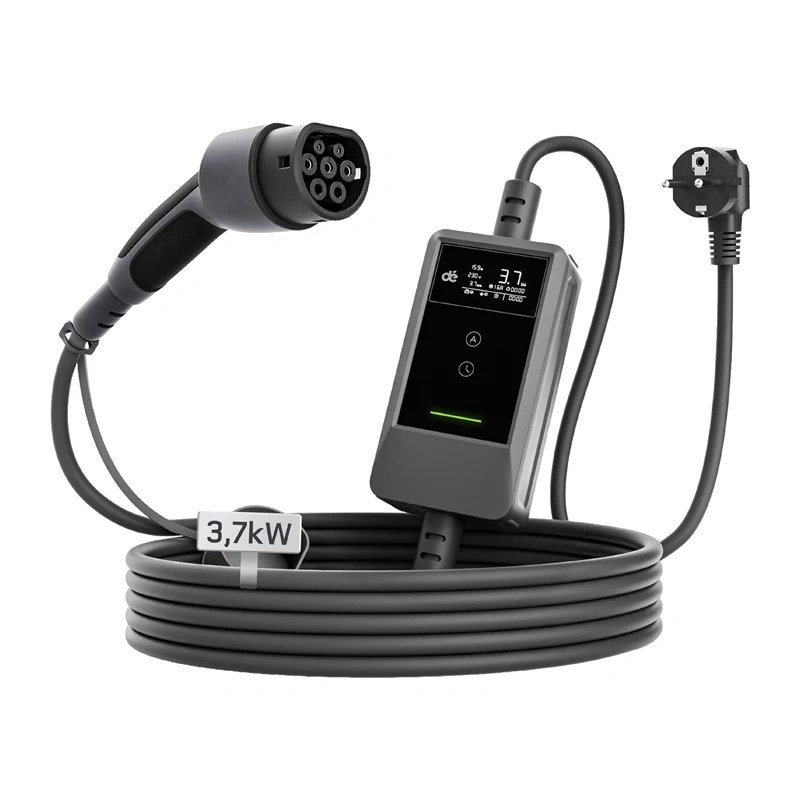

Portable EV Charger dé 3.7kW with 7m Cable, Mode 2, IP66
The DEPOW 3.7 kW portable EV charger is a single-phase Mode 2 unit engineered for charging electric vehicles at home and on the go. Its 7-meter cable provides flexible reach when parking away from the electrical socket, while the IP66-rated control module ensures dependable operation indoors and outdoors.
Current Adjustment from 6 A to 16 A
Adjustable charging current allows users to match power draw to their electrical system's capacity, preventing circuit overload when other appliances are running. The touch button offers quick selection between 6 A, 8 A, 10 A, 13 A, and 16 A steps, while the mobile app allows smooth, continuous regulation across the entire 6–16 A range.
Smart App Control and Charging Schedules
The unit can be operated via the onboard touch control or remotely through the smartphone app. Scheduling and delayed-start capabilities allow you to automate charging according to off-peak hours or personal routines. A built-in multifunctional LED display and three-color status indicators clearly show power status, charging progress, and system warnings.
Comprehensive Safety and Thermal Protection
For safe charging, the unit integrates a Type A 30 mA RCD with 6 mA DC residual current protection, along with monitoring for overvoltage, undervoltage, overload, PE conductor continuity, and relay contact welding. Integrated temperature sensors actively check both the plug and internal electronics: if temperatures exceed 70°C, output drops to 6 A, and if temperatures exceed 75°C, charging halts immediately.
| Manufacturer | DEPOW |
|---|---|
| Model | deM2D03B7NA_DL |
| Type | Portable EV Mode 2 charger |
| Power supply | Single-phase |
| Power | Up to 3.7 kW |
| Current adjustment | 6–16 A |
| Button adjustment | 6 A / 8 A / 10 A / 13 A / 16 A |
| App adjustment | Continuous, 6–16 A |
| Operating voltage | 85–280 V AC |
| Frequency | 50 Hz ±2% |
| Control | App and touch button |
| Timed functions | Charging schedule and delayed start |
| RCD | Type A 30 mA + DC 6 mA |
| Control module protection rating | IP66 |
| Operating temperature | -25°C to 50°C |
| Storage temperature | -40°C to 80°C |
| Maximum operating altitude | ≤2000 m |
| EAN | 6975828005060 |
|---|
What is the length of the charging cable?
The charger is equipped with a 7-meter-long cable, facilitating connection to vehicles parked away from the wall outlet.
How does the thermal control feature work?
The unit monitors temperature at the plug and internally. If the temperature exceeds 70°C, current is reduced to 6 A; if it exceeds 75°C, charging stops automatically.
What are the dimensions and rating of the control box?
The control module measures 176 × 93 × 49 mm and features an IP66 ingress protection rating against dust and high-pressure water jets.
