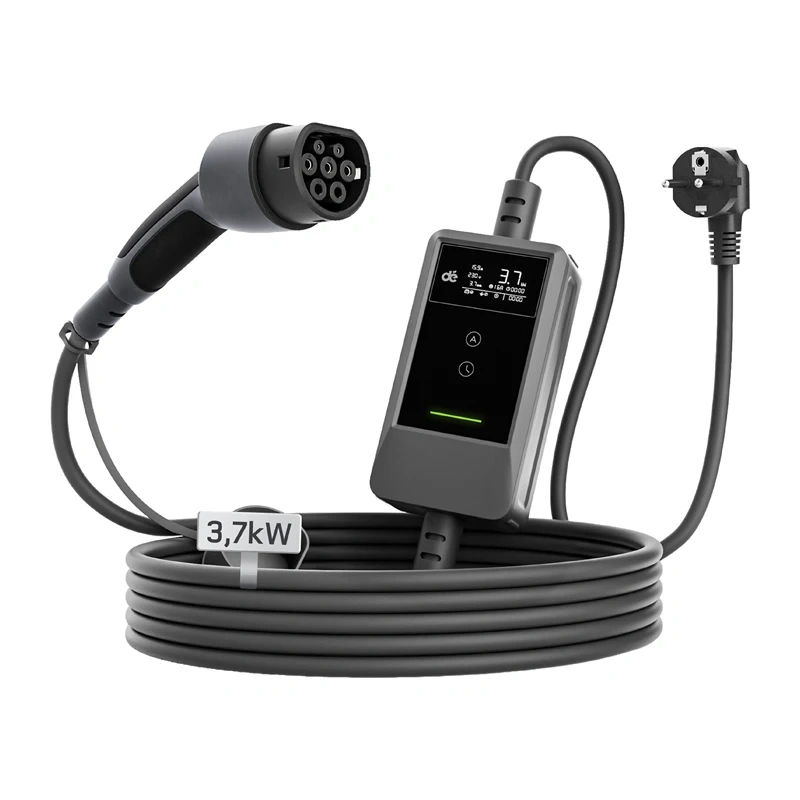

Portable EV Charger Dé deM2D03B10A_DL, up to 3.7 kW, 10m Cable
dé
| Products ID: | 186387 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005077 |
Delivery options to:
Choose countryThe DEPOW deM2D03B10A_DL is a single-phase Mode 2 portable EV charger delivering up to 3.7 kW, designed for charging electric vehicles at home and while traveling. A 10-meter cable provides flexible reach even when power outlets are situated further from the vehicle.
Current Adjustment and Smart Controls
Charging current can be adjusted within the 6–16 A range. The touch button allows selecting predefined levels of 6 A, 8 A, 10 A, 13 A, or 16 A, while the mobile app provides continuous adjustment across 6–16 A. The device also supports scheduled and delayed charging, paired with an informative LED display and three-color status indicators.
Safety Systems and Thermal Monitoring
Equipped with a 30 mA Type A RCD and 6 mA DC fault current protection, the charger actively monitors supply voltage, overload, and protective earth continuity. Thermal sensors track temperatures at the power plug and internal components, automatically reducing current to 6 A above 70°C and shutting off charging if temperature surpasses 75°C.
Indoor and Outdoor Suitability
The control module features an IP66 enclosure rating against dust and powerful water jets, operating reliably across temperatures from -25°C to 50°C. With DEKRA certification and compact control dimensions (176 × 93 × 49 mm), it is well-suited for everyday garage use and travel.
| Manufacturer | DEPOW |
|---|---|
| Model | deM2D03B10A_DL |
| Type | Portable EV Mode 2 charger |
| Power supply | Single-phase |
| Power | Up to 3.7 kW |
| Current control | 6–16 A |
| Button adjustment | 6 A / 8 A / 10 A / 13 A / 16 A |
| App adjustment | Continuous, 6–16 A |
| Operating voltage | 85–280 V AC |
| Frequency | 50 Hz ±2% |
| Control | App and touch button |
| Timed functions | Charging schedule and delayed start |
| RCD | Type A 30 mA + DC 6 mA |
| Control module protection rating | IP66 |
| Operating temperature | -25°C to 50°C |
| Storage temperature | -40°C to 80°C |
| Maximum operating altitude | ≤2000 m |
What is the length of the charging cable?
The charger includes a 10-meter cable, allowing convenient vehicle connection when the power outlet is located farther from your parking spot.
What are the dimensions of the control module?
The control module measures 176 × 93 × 49 mm.
How does the temperature protection function?
If internal or plug cable temperatures exceed 70°C, the charger limits the current to 6 A. If the temperature exceeds 75°C, charging stops completely.
