Portable EV Charger DEPOW 11 kW, Type 2, 20 m Cable
dé
| Products ID: | 186403 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005114 |
Delivery options to:

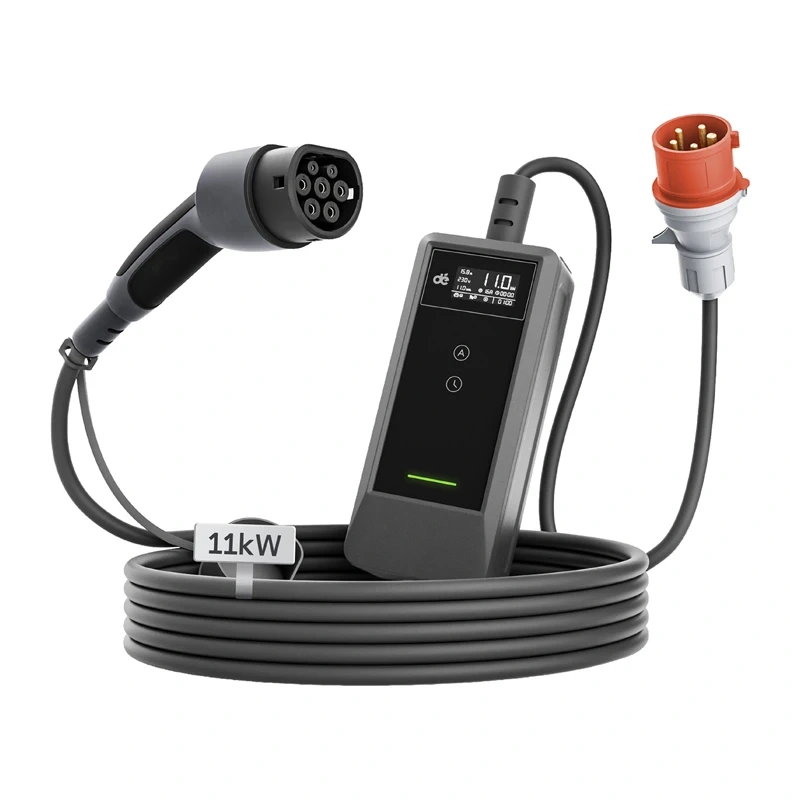

Choose countryThe DEPOW 11 kW portable EV charger is a three-phase unit operating at 400 V AC, designed for charging electric vehicles equipped with a Type 2 connector. Operating in Mode 2, it allows current adjustment across five levels to match the capabilities of your electrical installation. It is suitable for both indoor and outdoor use, including garages, driveways, or travel scenarios.
Adjustable Current and Clear Status Monitoring
With current selection options of 6 A, 8 A, 10 A, 13 A, and 16 A, the charger easily adapts to available power supplies. An integrated LCD screen provides direct visibility of key parameters and operating status. In addition, LED indicators on the control box show power, standby status, active charging, and error states.
Scheduled Charging and 20 m Cable Reach
The scheduled charging function allows you to preset the start time, making it practical for overnight charging. A Plug & Play setup ensures immediate usability, while the 20-meter cable gives flexibility when parking at a distance from the electrical supply socket.
Comprehensive Safety Safeguards and Ingress Protection
The charger features a 30 mA Type A RCD for AC leakage and a 6 mA DC safeguard, alongside protections against overload, overvoltage, undervoltage, ground faults, and short circuits. It also monitors grounding, control box temperature, and relay contacts for welding. The control box carries an IP66 rating, while the Type 2 plug meets IP55 standards across an operating temperature range of -25°C to 50°C.
| Manufacturer | DEPOW |
|---|---|
| Model | deM2D11B20A_DL |
| Maximum power | 11 kW |
| Power supply | Three-phase |
| Voltage | 400 V AC |
| Frequency | 50 Hz |
| Connector | Type 2 |
| Cable length | 20 m |
| Current rating | 6 A / 8 A / 10 A / 13 A / 16 A |
| Application | Indoor and outdoor |
| Control box dimensions | 220 × 95 × 57 mm |
| Control box protection rating | IP66 |
| Type 2 plug protection rating | IP55 |
| Operating temperature | -25°C to 50°C |
| Storage temperature | -40°C to 80°C |
| Operating humidity | 5–95% RH, non-condensing |
| Total harmonic distortion (THD) | ≤5% |
| Power consumption in standby mode | ≤5 W |
Which current settings are supported by this charger?
The charger supports five current levels: 6 A, 8 A, 10 A, 13 A, and 16 A.
What is the length of the charging cable?
The charging cable is 20 meters long and has a Type 2 connector.
Can this unit be used outdoors?
Yes, it is designed for both indoor and outdoor use. The control box is rated IP66 and the Type 2 plug is rated IP55.
