Portable EV Charger Dé deM2D22B10_DL 22kW 10m Type 2
dé
| Products ID: | 186404 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005176 |
Delivery options to:

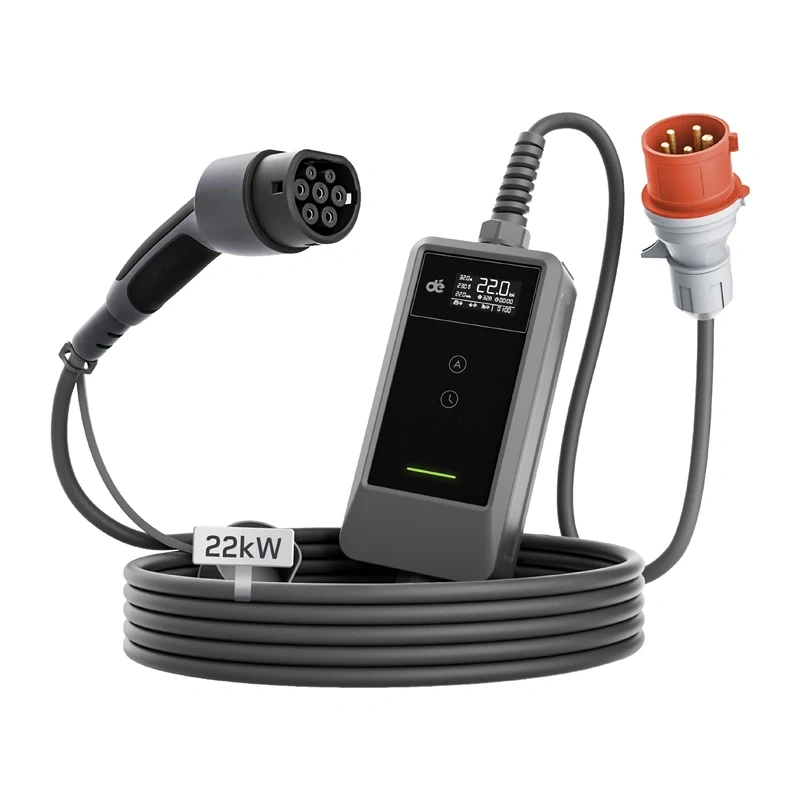

Choose countryThe portable EV charger delivers up to 22 kW of power and includes a 10-meter cable with a Type 2 connector. Designed for Mode 2 single-phase and 3-phase charging, it provides current adjustment from 6 A up to 32 A to adapt to available electrical capacity.
Wireless Control and Display
Equipped with an LCD screen, this charger connects via Wi-Fi and Bluetooth to a dedicated smartphone app. Users can remotely initiate or stop charging sessions, monitor power flow in real time, view historical sessions, set schedules, and utilize digital access locking through the RFID Toggle feature.
Integrated Protections for Everyday Reliability
Built-in safeguards detect overvoltage, undervoltage, overload, leakage current, short circuits, and abnormal control box temperatures, supported by an integrated RCD Type A 30 mA AC + 6 mA DC. With an IP66 rating on the control box and IP55 on the Type 2 connector, the unit operates reliably indoors and outdoors.
| Manufacturer | DEPOW |
|---|---|
| Model | deM2D22B10_DL |
| Maximum power | 22 kW |
| Charging type | Single-phase / 3-phase, Mode 2 |
| Voltage | 400 V AC, 50 Hz |
| Connector | Type 2 |
| Cable Length | 10 m |
| Current Control | 6 A / 10 A / 13 A / 16 A / 20 A / 24 A / 32 A |
| Display | LCD |
| Connectivity | Wi-Fi, Bluetooth |
| App features | remote start/stop, real-time monitoring, current adjustment, charging schedule, charging history, digital authorization/lock “RFID Toggle” |
| RCD | Type A 30 mA AC + 6 mA DC |
| Protections | overload, overvoltage and undervoltage, ground fault current, short circuit, ground check, temperature monitoring |
| Control box protection rating | IP66 |
| Type 2 plug protection rating | IP55 |
| Operating temperature | -25°C to 50°C |
| Storage temperature | -40°C to 80°C |
| Operating humidity | 5–95% RH, non-condensing |
| THD | ≤5% |
| Standby power consumption | < 5 W |
What current settings can be selected?
The charger supports current selection at 6 A, 10 A, 13 A, 16 A, 20 A, 24 A, and 32 A to match your electrical installation.
Does the charger require a physical RFID card?
No, the RFID Toggle feature in this model operates as a digital authorization and session lock setting directly inside the mobile app.
What ingress protection ratings do the components have?
The control box is rated IP66 for dust and water resistance, while the Type 2 vehicle connector is rated IP55.
