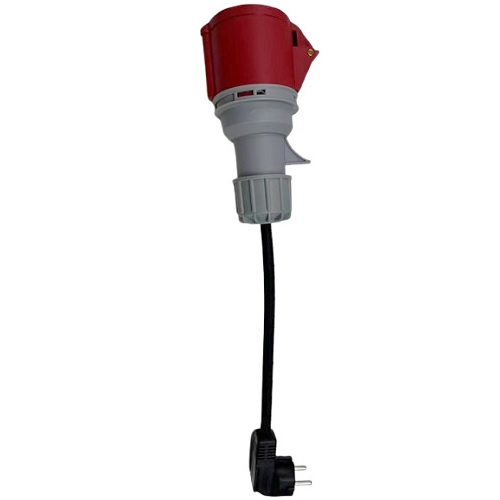

EV charger adapter Schuko to CEE 16 A female, 3.5 kW
32.10 €
Hismart
Products ID: 197569
In supplier warehouse
Available to order: 3 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThis adapter connects a portable EV charger with a red CEE 16 A, 5-pin, three-phase plug to a standard Schuko 230 V household socket. It has a Schuko plug, a CEE female connector and a 0.2 m cable.
The charger receives only one 230 V phase rather than three, reducing its maximum charging power from 11 kW to approximately 3.5 kW. Designed for use with a portable 11 kW, 16 A EV charger, this adapter does not provide 11 kW charging from a Schuko socket.
| Maximum charging power | 3.5 kW |
|---|---|
| Voltage | 230 V AC |
| Connector 1 | Schuko plug, 16 A, 230 V, 2P+E |
| Connector 2 | IEC 60309 CEE red female connector, 16 A, 5-pin (3P+N+PE) |
| Cable length | 0.2 m |
| Operating temperature | -25 °C to +45 °C |
| Certifications | CE, TUV |
| Colour | Black |
| Intended charger | Portable 11 kW, 16 A EV charger with a red CEE 5-pin, three-phase plug |
| Supply through adapter | Single-phase, 230 V |
| EAN | 9990000200962 |
|---|
Can this adapter provide 11 kW charging?
No. The Schuko socket supplies only one 230 V phase to the charger, reducing maximum charging power from 11 kW to approximately 3.5 kW.
