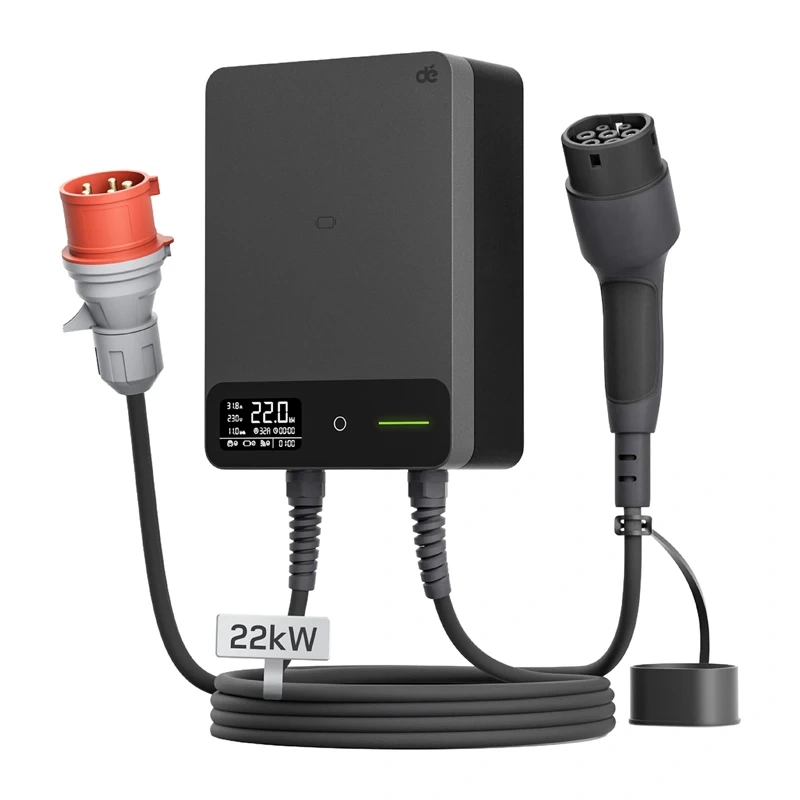

DEPOW Wallbox 22 kW EV Charger, Type 2 with 7 m Cable
dé
| Products ID: | 186408 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005251 |
Delivery options to:
Choose countryThe DEPOW 22 kW Wallbox electric vehicle charger with a 7-meter cable is designed for charging electric vehicles equipped with a Type 2 connector. Delivering up to 22 kW of charging power, it supports both single-phase and three-phase electrical installations and offers adjustable charging current from 6 to 32 A.
Parameter Adjustment and Charging Scheduling
The 6 to 32 A current adjustment range allows you to adapt the charging rate to your electrical supply and charging schedule. Through the dedicated app, users can:
- start and stop charging sessions remotely;
- track active charging data in real time;
- configure daily charging schedules and view charging history.
Safety Protections and Temperature Monitoring
The unit features a built-in Type B RCD (AC 30 mA + DC 6 mA) along with comprehensive system protections. It safeguards against overloads, overvoltage, undervoltage, ground faults, and short circuits while actively monitoring grounding and internal temperature. LED indicators clearly display power, standby, active charging, and fault statuses.
Indoor and Outdoor Installation
The housing is rated IP54, increasing to IP55 when the Type 2 plug is engaged. Operating within a temperature range of -25°C to 55°C, the wallbox is suited for both indoor garage and outdoor wall installation. The control unit measures 297 × 214 × 105 mm, and the 7-meter cable provides ample reach for parking convenience.
| Manufacturer | DEPOW |
|---|---|
| Model | deWB22B07A_DL |
| Maximum Power | 22 kW |
| Cable Length | 7 m |
| Voltage | 400 V AC |
| Frequency | 50 Hz |
| Operation | 1-phase / 3-phase installation |
| Current Adjustment Range | 6–32 A |
| Connector | Type 2 |
| Connectivity | Wi-Fi / Bluetooth |
| Control | app |
| Display | LCD |
| App features | remote start/stop, real-time monitoring, current adjustment, charging schedule, charging history |
| Enclosure protection rating | IP54 |
| Protection rating when connected via Type 2 | IP55 |
| Operating temperature | –25°C to 55°C |
| Storage temperature | –40°C to 80°C |
| Ambient humidity | 5–95% RH, non-condensing |
| Control module dimensions | 297 × 214 × 105 mm |
| Standby power consumption | less than 5 W |
| Total harmonic distortion (THD) | ≤5% |
| RCD | Type B, AC 30 mA + DC 6 mA |
| Protections | overload, overvoltage, undervoltage, ground fault, short circuit, grounding, and temperature monitoring |
| LED Indicators | Power, Standby, Charging, Error |
| Intended Use | Indoors / Outdoors |
Can this charger be installed on single-phase and three-phase supplies?
Yes, the DEPOW Wallbox supports both 1-phase and 3-phase electrical installations at 400 V AC and 50 Hz.
What is the length of the integrated charging cable?
The wallbox comes equipped with a 7-meter charging cable terminating in a Type 2 vehicle connector.
How can the charging process be managed remotely?
You can monitor and control charging via the companion smartphone app using Wi-Fi or Bluetooth connectivity.
