DEPOW Portable EV Charger Traveler Set 22kW, 7m, Type 2
dé
| Products ID: | 186405 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005190 |
Delivery options to:
Choose country

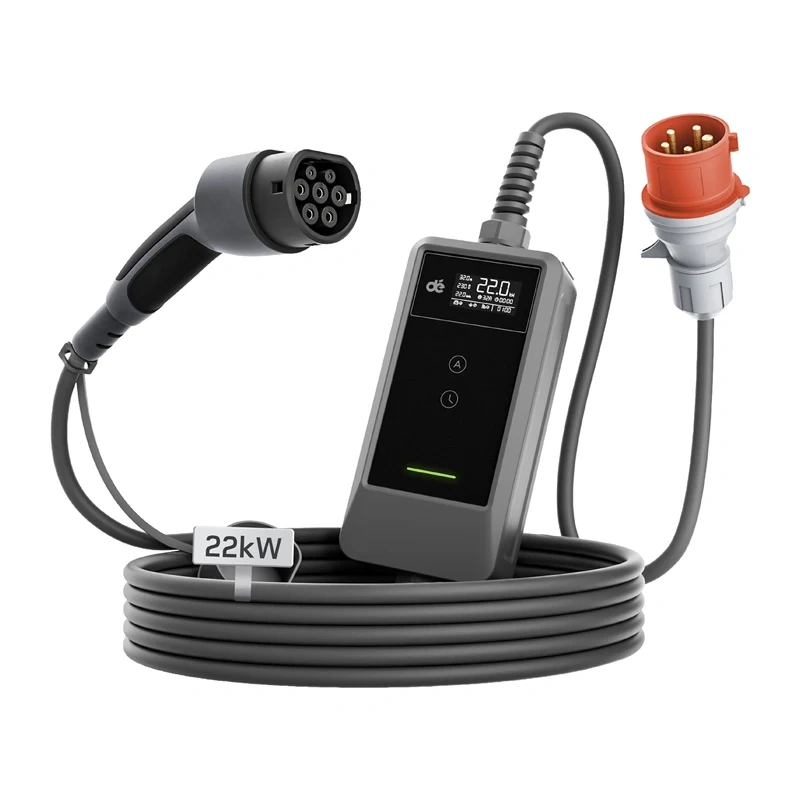

The DEPOW portable EV charger provides a power output of up to 22 kW and is equipped with a 7-meter cable and a Type 2 vehicle connector, offering practical flexibility when connecting your car to a power source. It supports both single-phase and 3-phase charging in Mode 2, with user-selectable current levels from 6 to 32 A. The charger features an integrated LCD display, Wi-Fi and Bluetooth connectivity, mobile app management, and scheduled charging capabilities. Designed for indoor and outdoor environments, its control box boasts an IP66 protection rating.
Current Adjustment for Diverse Electrical Setups
Adjustable current settings allow users to match the charging session to the specific limits of their electrical installation. Available levels include 6 A, 10 A, 13 A, 16 A, 20 A, 24 A, and 32 A, helping prevent overdrawing current on restricted circuits. The built-in LCD screen provides immediate visibility into operational parameters and charging status.
Wireless App Management via Wi-Fi and Bluetooth
Using the companion mobile app over Wi-Fi or Bluetooth, users can remotely initiate or halt charging sessions, monitor power metrics in real time, review historical charging data, and program charging schedules. The digital "RFID Toggle" feature in the app acts as session authorization to safeguard against unauthorized access.
Comprehensive Safety Mechanisms
Integrated safeguards continuously monitor against overload, overvoltage, undervoltage, leakage current, short circuits, ground connectivity, and control box temperature. The built-in RCD Type A (30 mA AC + 6 mA DC) detects both alternating and direct current irregularities, while onboard LED indicators display operational modes, standby, active charging, and fault statuses.

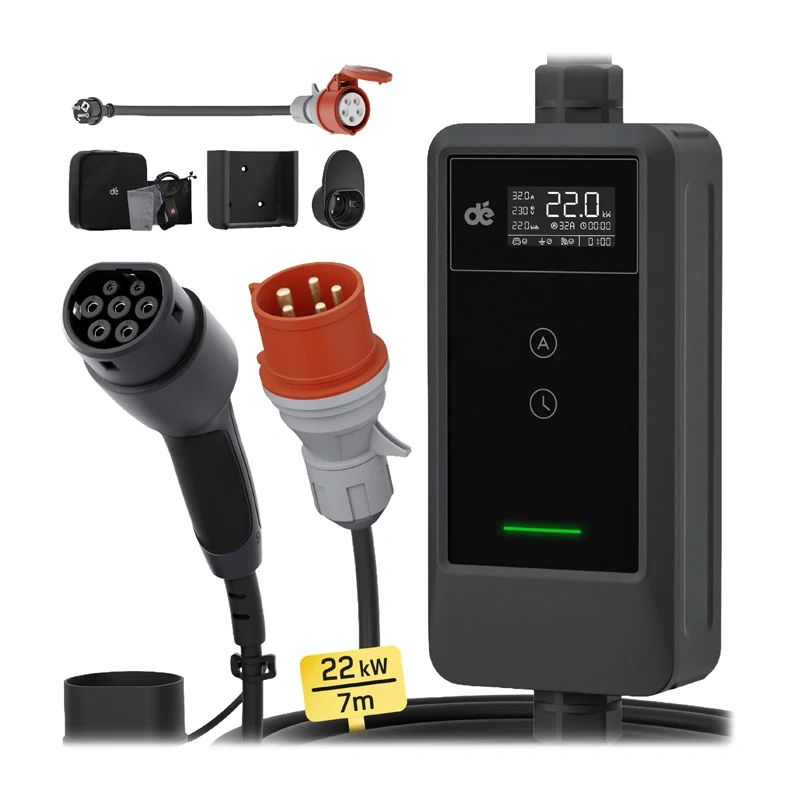

Included in the Set
- DEPOW 22 kW portable EV charger with 7 m cable
- Type 2 vehicle connector
- 5-pin CEE power plug
- CEE industrial outlet adapter
- Schuko adapter for standard 230 V household outlets
- Wall mount for Type 2 plug
- Wall mount for cable
- Mounting hardware
- Cable tie
- Cleaning cloth

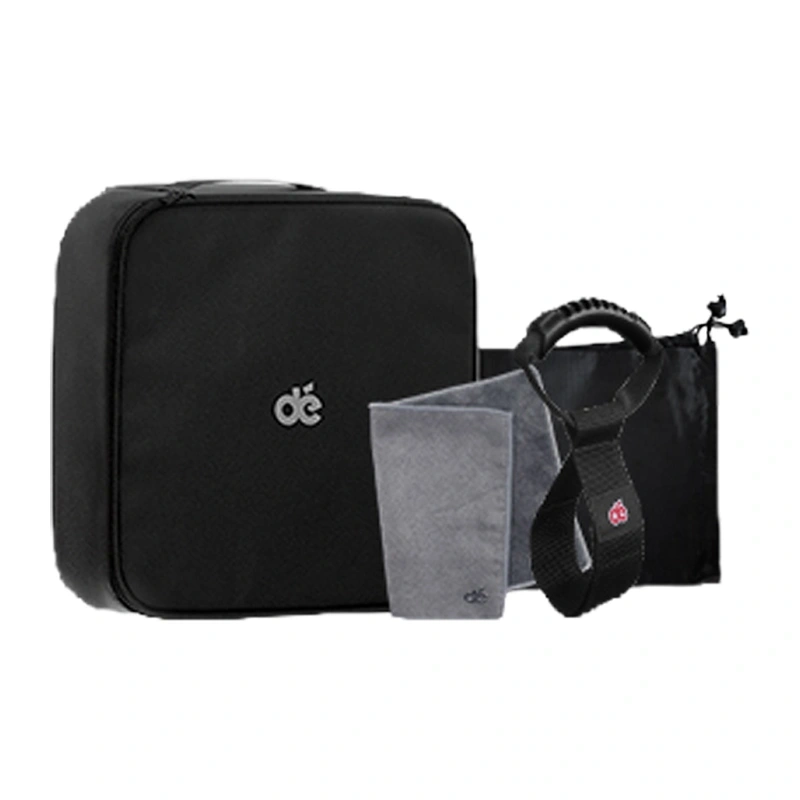

- Carrying bag
| Manufacturer | DEPOW |
|---|---|
| Model | deM2D22B7D_DL |
| Maximum power | 22 kW |
| Charging type | Single-phase / 3-phase, Mode 2 |
| Voltage | 400 V AC, 50 Hz |
| Connector | Type 2 |
| Cable length | 7 m |
| Current control | 6 A / 10 A / 13 A / 16 A / 20 A / 24 A / 32 A |
| Display | LCD |
| Connectivity | Wi-Fi, Bluetooth |
| App Features | remote start/stop, real-time monitoring, current adjustment, charging schedule, charging history, digital authorization/lock “RFID Toggle” |
| RCD | Type A 30 mA AC + 6 mA DC |
| Protections | overload, overvoltage and undervoltage, ground fault current, short circuit, ground check, temperature control |
| Control box protection rating | IP66 |
| Type 2 plug protection rating | IP55 |
| Operating temperature | -25°C to 50°C |
| Storage temperature | -40°C to 80°C |
| Operating humidity | 5–95% RH, non-condensing |
| THD | ≤5% |
| Standby power consumption | < 5 W |
Which power adapters are included in the package?
The set includes a 5-pin CEE plug, a CEE adapter for industrial outlets, and a Schuko adapter for standard 230 V home outlets.
What current settings can be selected on this charger?
You can select from seven current levels: 6 A, 10 A, 13 A, 16 A, 20 A, 24 A, and 32 A.
How does the "RFID Toggle" feature work?
On this model, RFID Toggle operates as an in-app digital lock and session authorization rather than a physical card scanner, helping avoid unauthorized charging.
