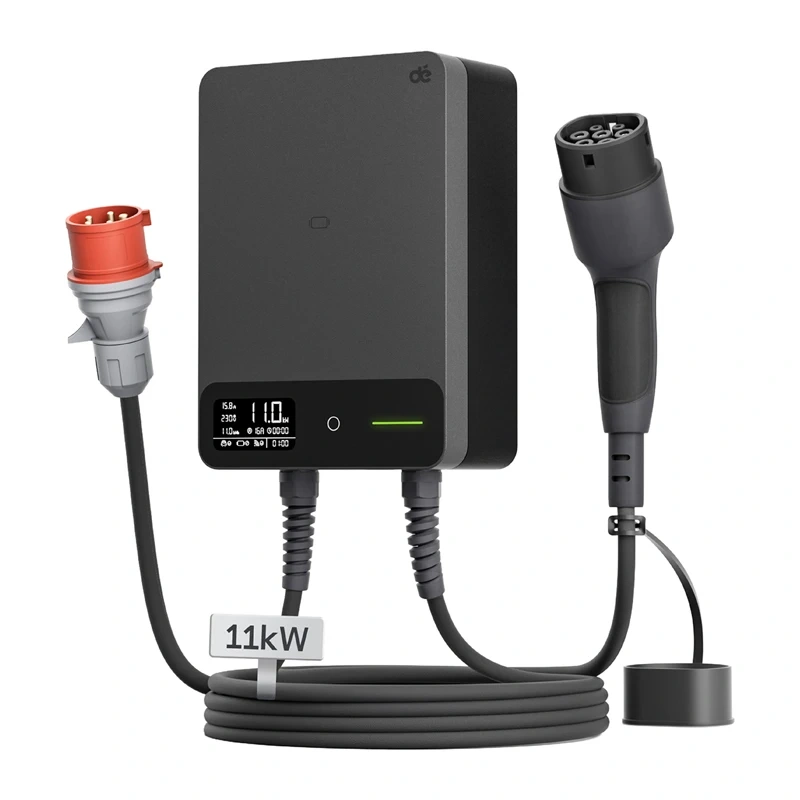

dé 11 kW Wallbox EV Charger with 15 m Cable, Type 2, Wi-Fi, Bluetooth
dé
| Products ID: | 186407 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005237 |
Delivery options to:
Choose countryThe DEPOW Wallbox 11 kW electric vehicle charger with an integrated 15-meter cable provides a dependable charging solution for homes, private properties, and garages. Delivering up to 11 kW of power with support for both 1-phase and 3-phase electrical installations, it allows users to adjust charging current from 6 to 16 A according to their system capacity.
Smart Control and Scheduling
Equipped with an LCD screen and status LEDs for power, standby, charging, and fault indication, this Wallbox provides complete operational overview. Wi-Fi and Bluetooth connectivity link the station to a mobile application, enabling:
- remote initiation and termination of charging sessions;
- scheduled charging setup to take advantage of specific hours;
- live session monitoring and past charging history tracking;
- RFID activation for authorized access control.
Safety Systems and Weather Resistance
Designed for daily charging safety, the unit includes an integrated Type B RCD (AC 30 mA + DC 6 mA), continuous temperature tracking, and protection circuits against overload, overvoltage, undervoltage, leakage current, short circuit, and improper grounding. An IP54-rated housing and an IP55 rating for the connected Type 2 plug ensure dependable performance in operating temperatures ranging from -25°C to 55°C.
| Manufacturer | DEPOW |
|---|---|
| Model | deWB11B15A_DL |
| Cable Length | 15 m |
| Maximum Charging Power | 11 kW |
| Power Supply | 400 V AC, 50 Hz |
| Supports | 1-phase and 3-phase installations |
| Current adjustment | 6–16 A |
| Connector | Type 2 |
| Connectivity | Wi-Fi / Bluetooth |
| Display | LCD |
| RFID support | Yes |
| Scheduled charging | Yes |
| Remote start and stop of charging | Yes |
| Real-time monitoring | Yes |
| Charging history | Yes |
| Wallbox protection rating | IP54 |
| Protection rating of the connected Type 2 connector | IP55 |
| RCD | Type B AC 30 mA + DC 6 mA |
| Protections | Overcurrent, overvoltage, undervoltage, earth leakage current, short circuit, improper grounding, and overheating |
| Operating temperature range | from -25°C to 55°C |
| Storage temperature range | from -40°C to 80°C |
| Operating humidity | 5–95% RH, non-condensing |
| Total harmonic distortion (THD) | ≤5% |
What connector type and cable length does this charger include?
It comes with an integrated 15-meter cable fitted with a standard Type 2 connector.
Can this Wallbox be mounted outdoors?
Yes, it is suitable for outdoor and indoor mounting, featuring an IP54-rated main unit, IP55 for the connected Type 2 connector, and an operating range of -25°C to 55°C.
What connectivity options are supported for app control?
The charger supports both Wi-Fi and Bluetooth connectivity for app features including scheduling, remote start/stop, and session tracking.
