Besen BS20-BC-22KW Wall-Mounted EV Charger 22 kW
-4%
Price: 370.10 €355.70 €
| Products ID: | 148649 |
|---|---|
| Manufactured by: | Besen |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5906168438776 |
Delivery options to:

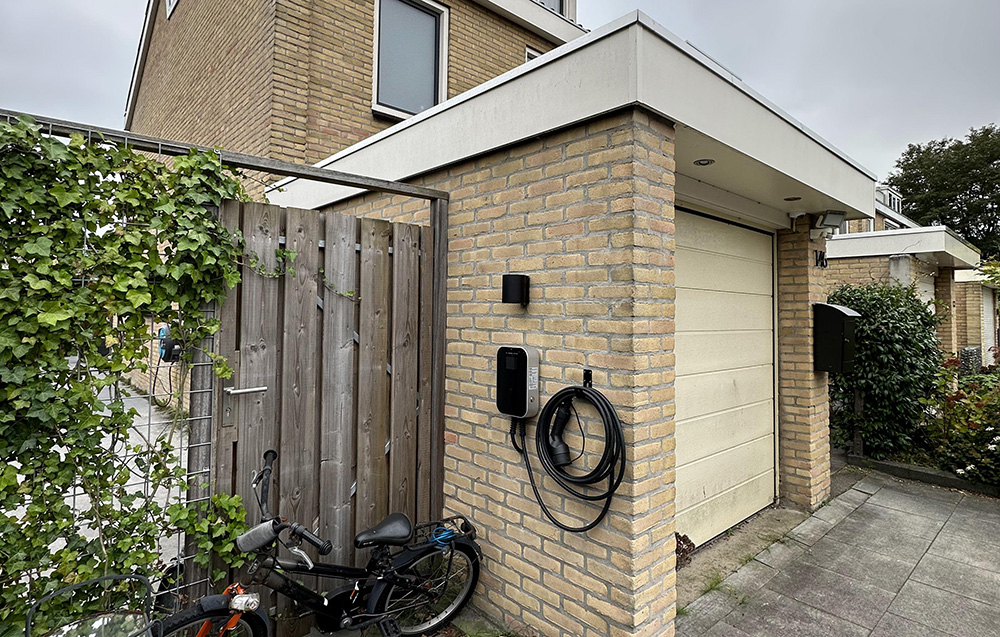

Choose countryThe Besen BS20-BC-22KW is a wall-mounted electric vehicle charger providing up to 7.2 kW in single-phase mode and 22 kW in three-phase mode. Built with a stainless steel and aluminum housing, it features a 3.5-inch color LCD display for real-time charging status.
Key Features
- Charging power up to 7.2 kW (single-phase) or 22 kW (three-phase) at 32 A
- 3.5-inch color LCD display showing charging parameters
- IP66 water and dust protection with IK10 impact resistance
- Protections against undervoltage, overload, short circuits, overheating, and lightning
- Integrated 5-meter charging cable and mounting accessories included
| Manufacturer | Besen |
|---|---|
| Model | BS20-BC-22KW |
| Input / Output Voltage | AC 230V / 400V |
| Input Frequency | 47 ~ 63 Hz |
| Output Power | 7.2 kW (single-phase) / 22 kW (three-phase) |
| Max. Output Current | 32 A |
| Cable Length | 5 m |
| Protection Rating | IP66 |
| Impact Resistance | IK10 |
| RCD | Type A / Type A + 6 mA DC |
| Ambient Temperature | -25°C ~ 55°C |
| Ambient Humidity | 0–95% (non-condensing) |
| Housing Material | Stainless steel and aluminum |
| Standby Power Consumption | < 8 W |
What is the maximum charging capacity?
The Besen BS20-BC-22KW delivers up to 7.2 kW on a single-phase connection and up to 22 kW on a three-phase connection at up to 32 A.
What is included in the package?
The package includes the charger, user manual, quick start guide, positioning paper, mounting screws, and a metal hanger.
Can this charger be used outdoors?
Yes, it features an IP66 rating for dust and water resistance and an IK10 impact resistance rating, making it suitable for outdoor environments.
