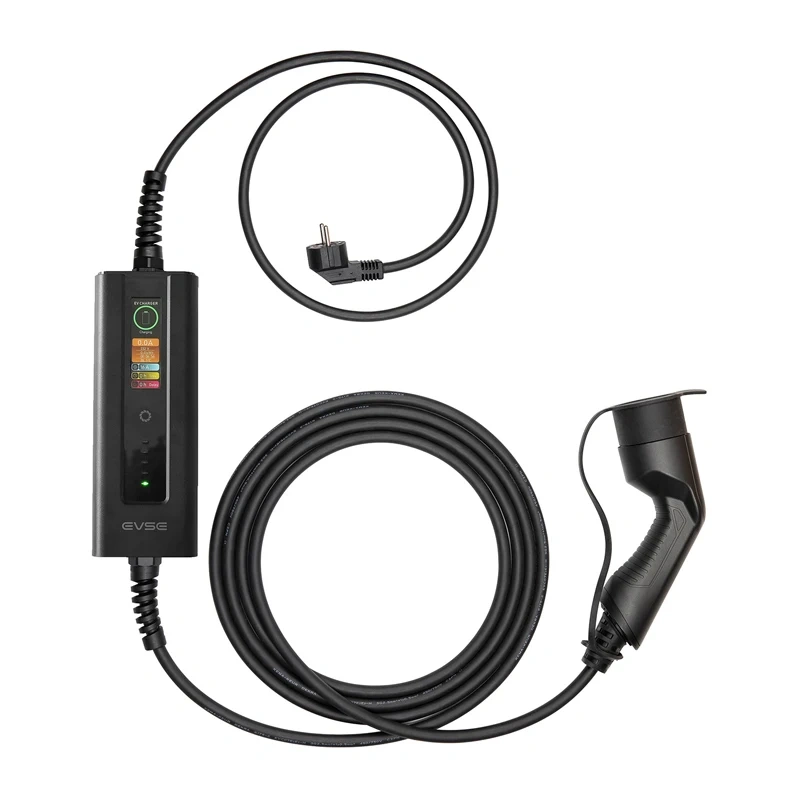

BESEN BN21 portable EV charger, 3.6 kW, 6–16 A
Delivery options to:
Choose countryThe BESEN BN21 is a portable charger for electric cars and plug-in hybrids, delivering up to 3.6 kW. Charging current adjusts from 6 to 16 A to suit the electrical installation, with charging starting at 6 A by default.
Charging control and scheduling
The 2.6-inch colour LCD shows current, voltage, charging time, energy consumed and operating status without an additional app. Delayed start and charging duration settings let you schedule the charging session.
- Operation monitoring: a built-in processor monitors the device and automatically corrects minor charging errors.
- Electrical protection: protection against undervoltage, overload, short circuits, overheating, ground faults and lightning effects. A Type A RCD with 6 mA DC detection is included.
- Indoor and outdoor use: IP66 protection against dust and water jets, with natural cooling.
Size and connection
The control module measures 6.7 × 5.2 × 19.6 cm, and the listed weight is 1.75 kg. The housing resists mechanical damage. The source does not identify the vehicle connector or mains plug fitted to this particular version, so compatibility with a vehicle and socket cannot be confirmed.
| Manufacturer | BESEN |
|---|---|
| Model | BN21 |
| Device type | Portable EV charger |
| Input/output voltage | 100–250 V AC |
| Operating frequency | 47–63 Hz |
| Maximum output power | 3.6 kW |
| Maximum output current | 16 A (1 phase) |
| Display | 2.6-inch colour LCD |
| Protection rating | IP66 |
| RCD | Type A + 6 mA DC detection |
| Delayed start function | Yes |
| Charging duration setting | Yes |
| LED indicator | Yes |
| Operating temperature | −25 °C to +55 °C (according to CE certification) |
| Operating humidity | 5%–95%, non-condensing |
| Maximum operating altitude | < 2 000 m above sea level |
| Cooling | Natural |
| Standby power consumption | < 8 W |
| Control module dimensions | 6.7 × 5.2 × 19.6 cm |
| Weight | 1.75 kg |
| Certifications | CE, RoHS |
| Adjustable charging current | 6–16 A |
| Default starting current | 6 A |
| Protective functions | Protection against undervoltage, overload, short circuits, overheating, ground faults and lightning effects |
| Displayed parameters | Current, voltage, charging time, energy consumed and operating status |
| Operation monitoring | Built-in processor with automatic correction of minor charging errors |
| Housing properties | Resistant to mechanical damage, including accidental impact from vehicle wheels |
| EAN | 5905156109421 |
|---|
Does this version have a Type 2 connector and Schuko plug?
The connector and mains plug for this particular version are not specified. The source describes BN21 variants with Type 1, Type 2 or GB/T connectors and different mains plugs; this does not confirm the fittings supplied with this item.
Can I set the charging start time and duration?
Yes. The BESEN BN21 supports delayed start and charging duration settings.
