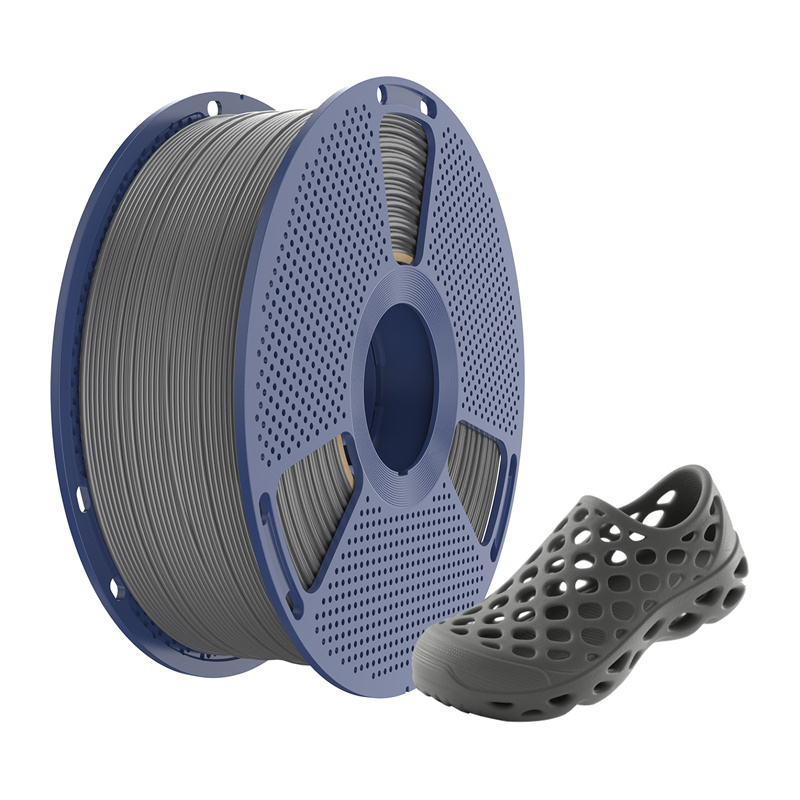

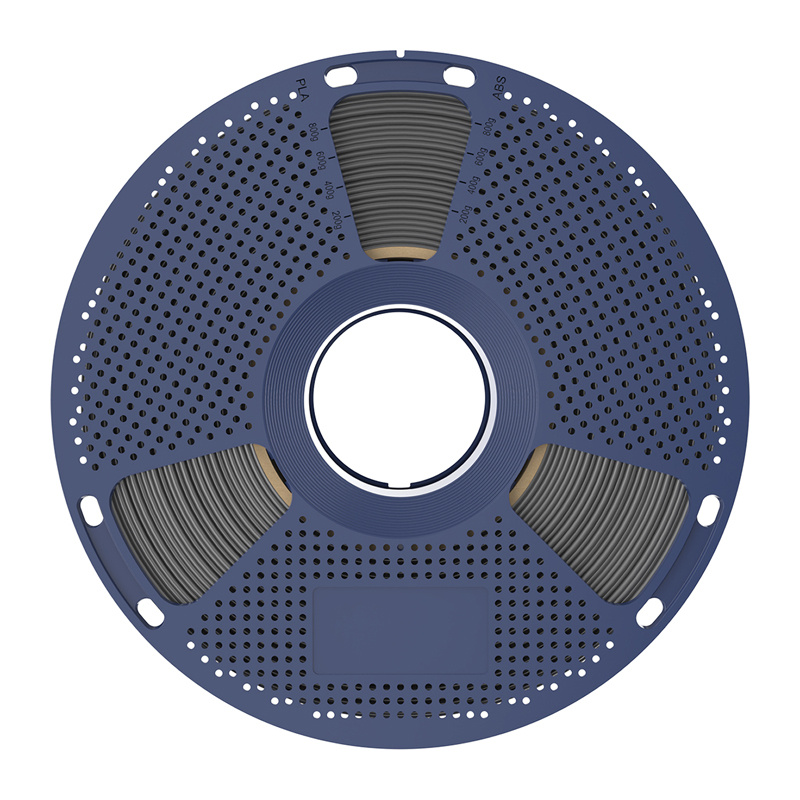

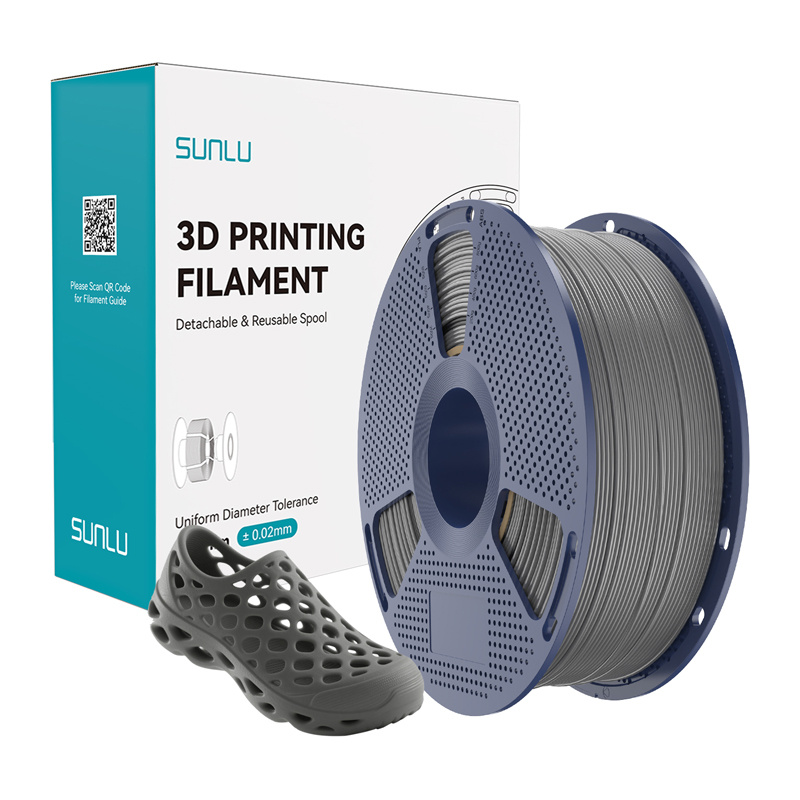

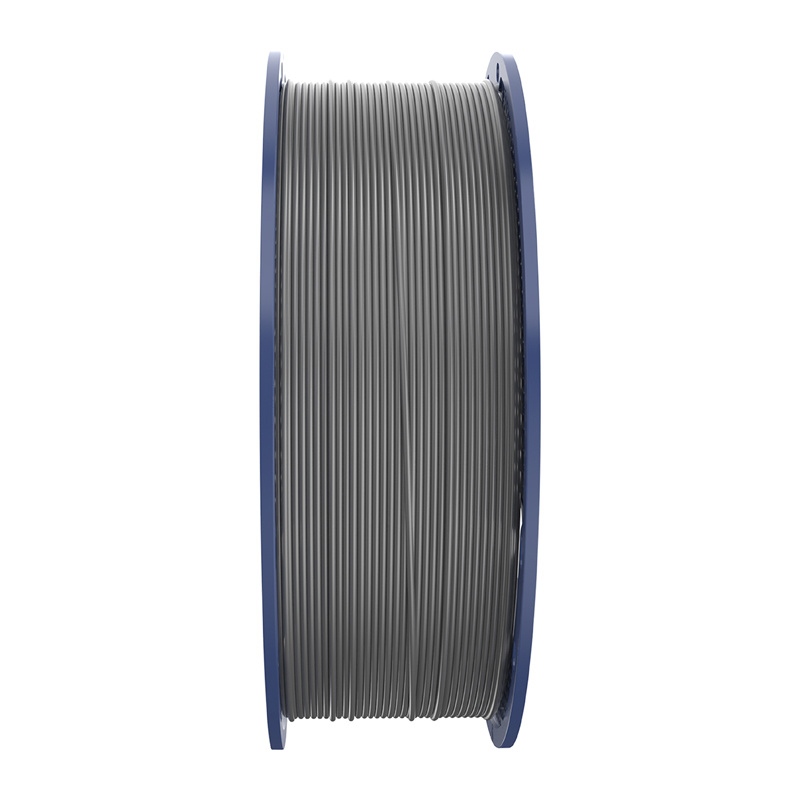

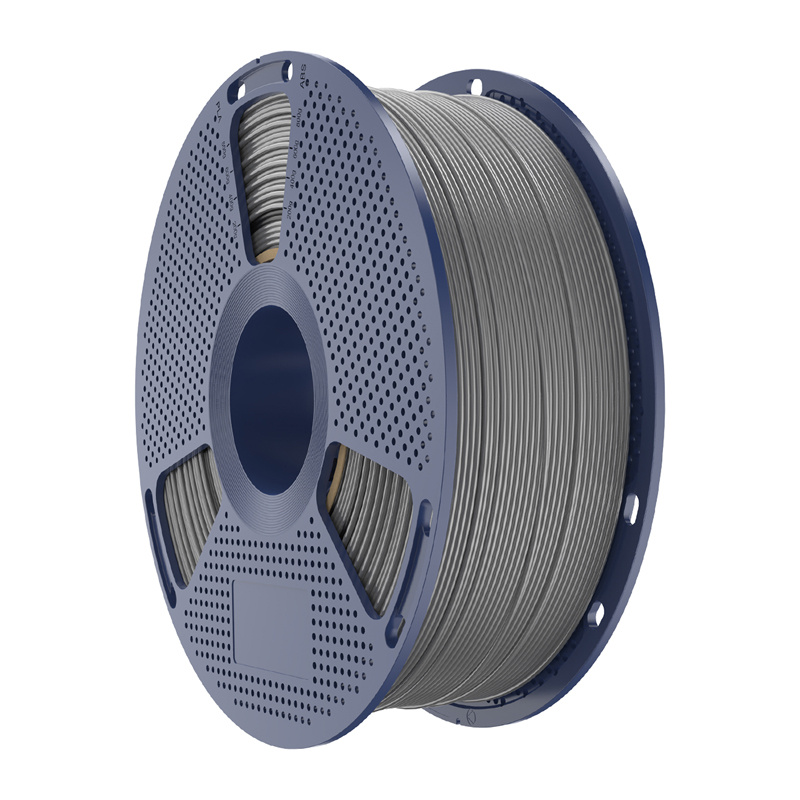

Sunlu TPU 95A flexible filament, 1.75 mm, 1 kg, grey
Delivery options to:
Choose countrySunlu TPU 95A is a grey flexible filament for FDM printing, designed for parts that need to bend, stretch and return to their original shape. It suits applications such as cases, handles, seals and functional mechanical components.
Flexibility and mechanical properties
With a hardness of 95A, this TPU absorbs shocks and deformation while maintaining shape stability. It offers abrasion and tear resistance, a tensile strength of 34.4 MPa and elongation at break of up to 1063%.
Printing settings and storage
- Filament size: 1.75 mm diameter with a ±0.02 mm tolerance; 1 kg provides approximately 330 m of material.
- Temperature and speed: 190–210 °C at 50–80 mm/s, or 210–230 °C at 80–120 mm/s.
- Print bed: recommended temperature of 50–60 °C.
- Storage: keep in an airtight container with a desiccant at below 20% RH. The drying temperature is 50 °C.
The filament is compatible with FDM printers. Check the filament diameter and specified printing settings when selecting suitable equipment.
| Manufacturer | Sunlu |
|---|---|
| Material | TPU (thermoplastic polyurethane) |
| Colour | Grey |
| Hardness | 95A |
| Filament diameter | 1.75 mm (±0.02 mm) |
| Weight | 1 kg |
| Filament length | Approx. 330 m |
| Printing temperature | 190–210 °C (50–80 mm/s) / 210–230 °C (80–120 mm/s) |
| Bed temperature | 50–60 °C |
| Print speed | 50–120 mm/s |
| Density | 1.23 g/cm³ |
| Heat deflection temperature (HDT) | 52 °C |
| Tensile strength | 34.4 MPa |
| Flexural strength | 83 MPa |
| Flexural modulus | 87.6 MPa |
| Elongation at break | 1063% |
| Storage humidity | < 20% RH (in an airtight container with a desiccant) |
| Drying temperature | 50 °C |
| Printing technology | FDM |
| EAN | 6933582316440 |
|---|
What types of parts is this filament suitable for?
It is suitable for flexible functional parts such as cases, handles, seals and mechanical components requiring elasticity and abrasion resistance.
How should the filament be stored?
Store it in an airtight container with a desiccant at below 20% RH. The specified drying temperature is 50 °C.
