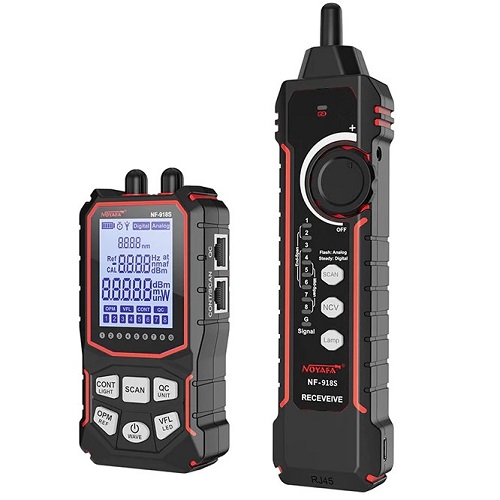

Network and Fiber Optic Cable Tester with VFL and Power Meter

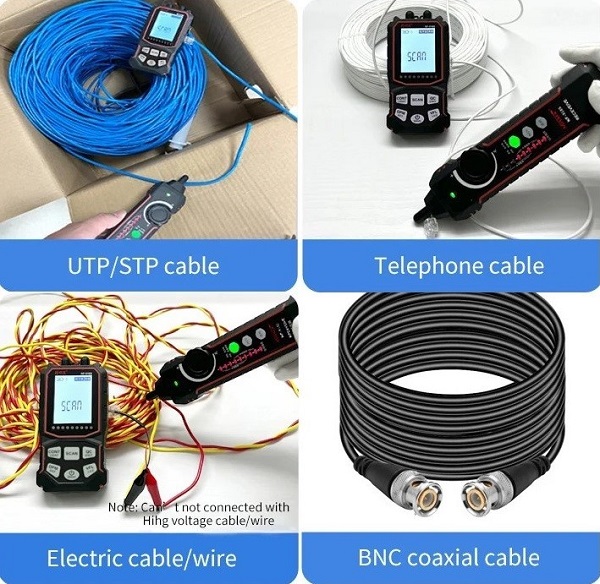

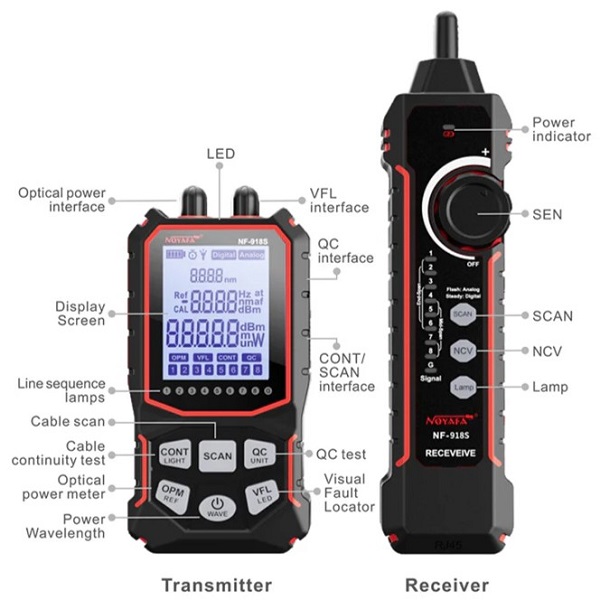

This multifunctional network and fiber optic cable tester is designed for professional cable tracing, diagnostics, and network maintenance. The system consists of a transmitter and receiver, supporting UTP and STP twisted pair, telephone cables, electrical lines, and BNC coaxial cables.

Wire Tracing and Continuity Testing

Supports analog tracing mode and digital scanning mode for accurate cable identification in high-interference environments.

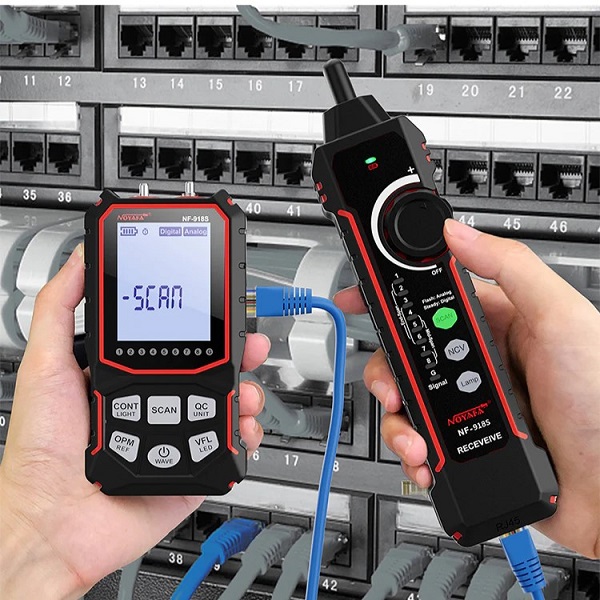

High-sensitivity probe with adjustable sensitivity simplifies locating specific cables in dense patch panels.
Performs wire map sequence checks, continuity testing, and detects short circuits, open circuits, and crossed wires.
Tests RJ45 crimp quality and pin contact integrity.
Tests continuity on active PoE networks, identifying PoE power supply mode and active wire pairs.

Optical Diagnostics and Safety

Integrated VFL visual fault locator with a 10 mW red laser pinpoints fiber breaks, sharp bends, and connection faults.
Optical power meter measures from -70 to +10 dBm across 850, 1300, 1310, 1490, 1550, and 1625 nm wavelengths.
Built-in NCV non-contact AC voltage detector for checking outlets and wiring before testing.
Backlit LCD screen and integrated LED flashlights on both units facilitate work in dark areas.
Internal 3.7 V 1400 mAh lithium battery rechargeable via USB Type-C.

Tested cables	UTP, STP, RJ45
Power supply	Built-in 3.7 V 1400 mAh lithium battery
Charging interface	USB Type-C
Network interface	RJ45
Analog/digital signal scanning	Yes
Optical power measurement range	-70 ~ +10 dBm
Supported optical wavelengths	850 / 1300 / 1310 / 1490 / 1550 / 1625 nm
VFL laser power	10 mW
Voltage protection	Up to 60 V
Display	Backlit LCD
Adjustable sensitivity	Yes
Transmitter dimensions	133 x 69 x 32 mm
Receiver dimensions	198 x 50 x 32 mm
Warranty	24 months

What is included in the package?

The package includes a transmitter, a receiver, a cable adapter set, a charging cable, earphones, a zippered carrying case, and a user manual with warranty card.

What types of cables can be tested?

The tester supports UTP and STP network cables, RJ45 patch cords, telephone lines, electrical wiring, BNC coaxial cables, and fiber optic cables.
