Ermenrich Seek TV50 Thermal Camera, Black / Purple
Price: 265.40 €
| Products ID: | 183479 |
|---|---|
| Manufactured by: | Ermenrich |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 5905555021560 |
Delivery options to:
Choose country
The Ermenrich Seek TV50 is a handheld thermal imaging camera designed for electrical inspections, detecting thermal bridges in buildings, checking heating installations, and automotive maintenance across a temperature range of -20 to +400°C.
Key Features
- 32 x 32 pix thermal sensor and 2 MP visible light camera
- 4 operating modes and 7 color palettes on a 2.4-inch TFT color display
- Photo capture function saving BMP images to an included 16 GB memory card
- Shock-resistant housing rated for drops from up to 1 meter
- Powered by a 2600 mAh lithium-ion rechargeable battery via micro-USB
| Type of thermal imaging device | Manual |
|---|---|
| Resolution of the microbolometer matrix | 32 x 32 pixels |
| Spectral range | 8 - 14 µm |
| Speed | 9 |
| Temperature range | -20 - 400°C |
| Temperature error precision | 0 to +400°C: 1.8°C; 20 to 0.9°C: 3°C, resolution: 0.1°C |
| Temperature sensitivity (NETD) | 150 mK |
| Color palettes | Hot Black, Hot White, Hot Red, Red Iron, Cold Colored, Rainbow, Lava |
| Field of view | 33° (horizontal), 18 mrad (direct) |
| Fusion of optical and thermal images | Yes |
| Display | LCD, 2.4 inch TFT |
| Display resolution | 320 x 240 pixels |
| Operating mode | Infrared mode, infrared edge detection mode, dual-light viewing mode, visible light mode |
| Power supply | 2600 mAh, 3.7V, charge via micro-USB cable (included) |
| Maximum load (impact) | Fall from a height of up to 1 meter |
| Operating temperature range | -10...+45° C |
| Integrated recorder | Yes |
| Memory | 16 GB memory card (included) |
| Image format | bmp |
| Interface connections | micro USB |
| Bag in set | Yes |
| Additional features | Automatic power off function, low battery indicator, camera resolution 2 MP, adjustable emissivity from 0.1 to 0.99, response time: 150 ms |
| Colour | Black / purple |
| Rechargeable batteries included | Yes |
| Type of battery | Lithium-Ion |
| Required number of batteries | 1 |
| Automatic switch-off | Yes |
| Camera type | Infrared camera |
| Weight | 480 g |
What is the measurement temperature range of the Ermenrich Seek TV50?
The device measures temperatures from -20 to +400°C.

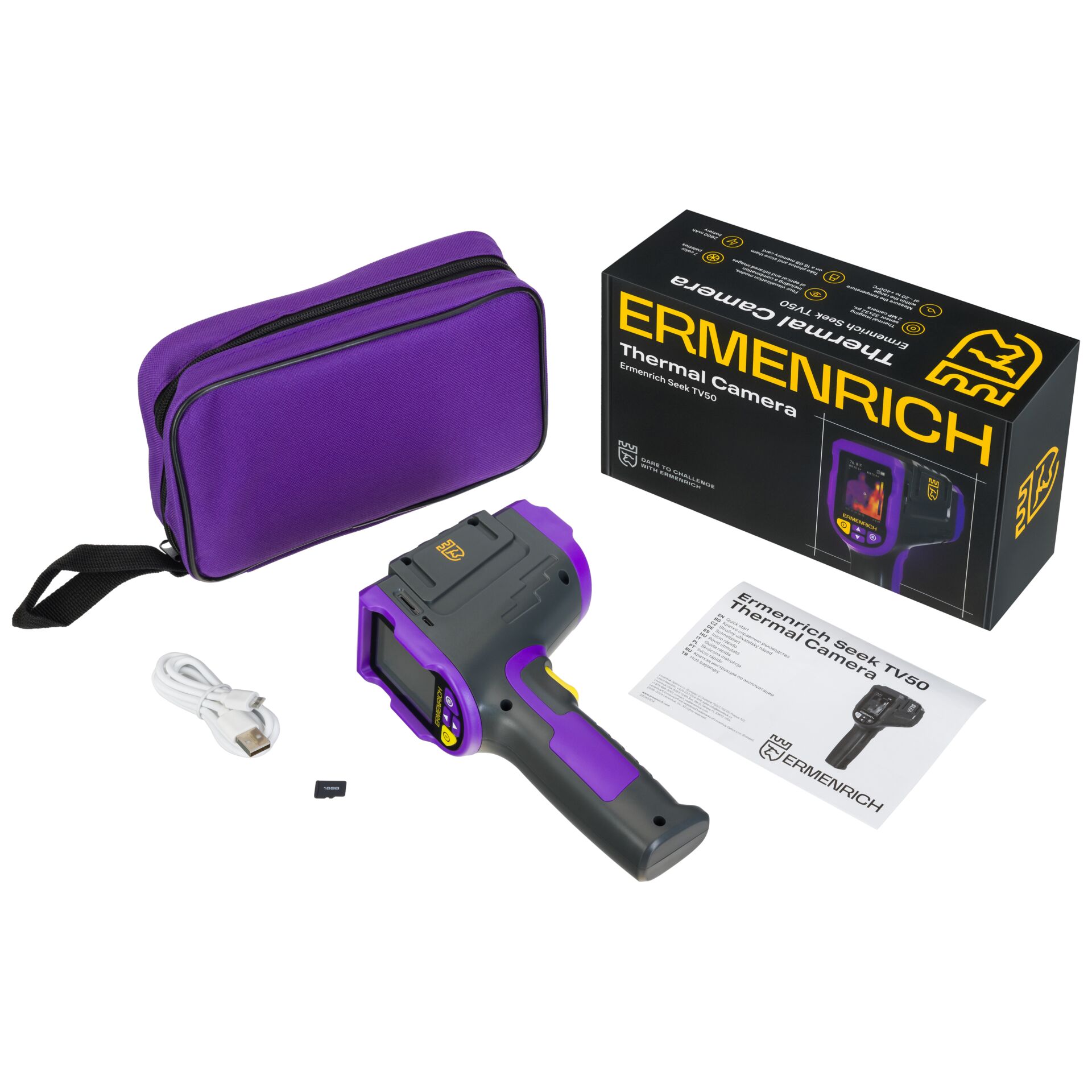

What accessories are included with the camera?
The package includes the device, a 16 GB memory card, a micro-USB charging cable, a rechargeable lithium-ion battery, and a carrying bag.
