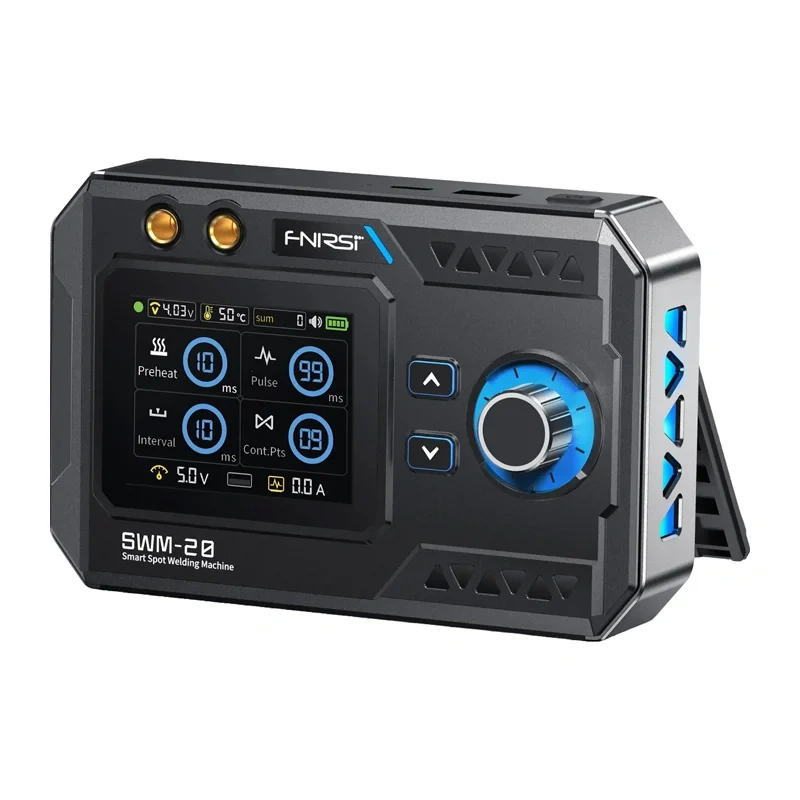

FNIRSI SWM-20 Handheld Spot Welder (1200 A, 5000 mAh)

Price: 68.20 €

Products ID:	177328
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5905156108134

Delivery options to:

Choose country

The FNIRSI SWM-20 is a portable handheld spot welder delivering up to 1,200 A maximum welding current and dual-pulse technology for battery pack building and electronic repairs.

Key Features

Dual-Pulse Technology: Delivers cleaner and stable welds on materials ranging from 0.1 to 0.5 mm in thickness.
Precise Power Adjustment: Features over 10,000 adjustment levels and 4 preset combination levels for various tasks.
Color TFT Display: A 2.4-inch screen provides real-time monitoring of voltage, temperature, and welding parameters.
5,000 mAh Battery: Delivers up to 1,500 welds on a single charge and doubles as a 5 V / 2.1 A USB power bank.
Comprehensive Protection: Equipped with an intelligent multi-protection system against overheating, short circuit, and voltage fluctuations.

Manufacturer	FNIRSI
Model	SWM-20
Battery capacity	5000 mAh
Output	5 V / 2.1 A
Welding thickness	0.1–0.5 mm
Preset combination levels	4 levels
Charging	5 V / 2.1 A
Welding Materials	Nickel, iron, stainless steel
Maximum Welding Current	1200 A

What material thicknesses can the SWM-20 weld?

It welds materials between 0.1 and 0.5 mm, including nickel-plated steel up to 0.4 mm, steel up to 0.5 mm, pure nickel up to 0.25 mm, iron up to 0.3 mm, and copper/nickel-plated copper up to 0.1 mm.

What is included in the package?

The package includes the spot welder, welding tips, replacement tips, USB-C cable, nickel strip, and user manual.

Can the FNIRSI SWM-20 charge other devices?

Yes, the built-in 5,000 mAh battery can function as a power bank via its 5 V / 2.1 A USB output.
