FNIRSI SWM-10 Portable 2-in-1 Spot Welding Machine

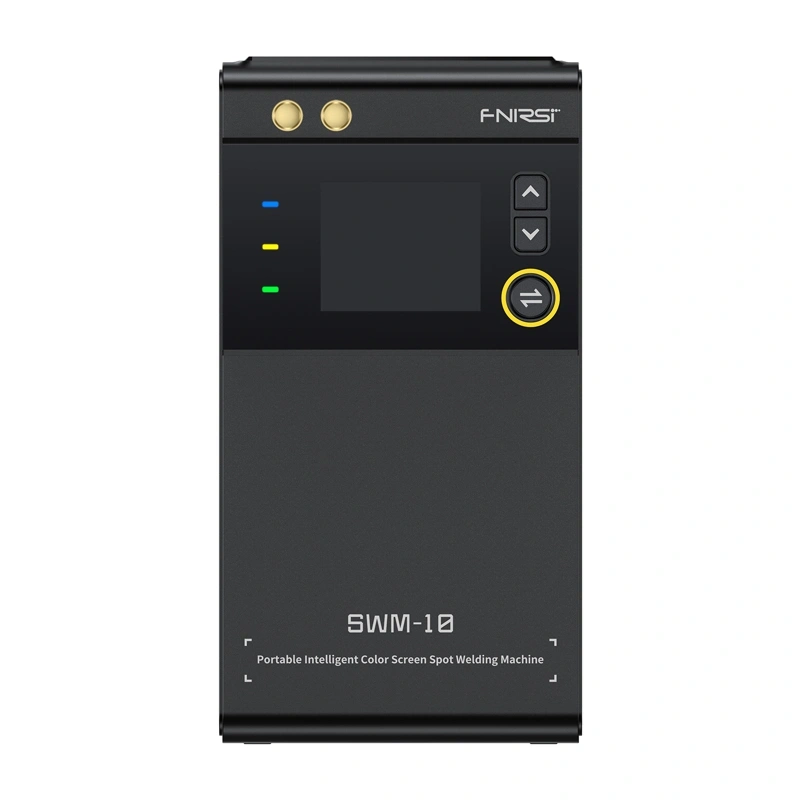

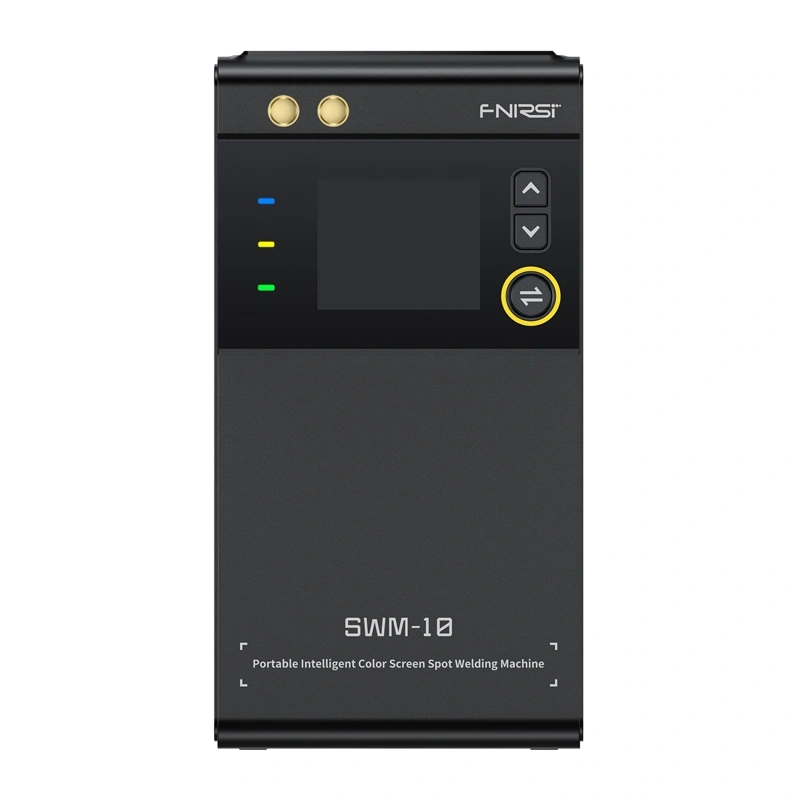

The FNIRSI SWM-10 is a compact 2-in-1 spot welding machine with a built-in powerbank function and a 5000 mAh lithium battery. Delivering an output current of up to 1200A, it is designed for working with cylindrical cells, phone batteries, and battery packs.

Key Features

Dual-pulse technology for precise welds and minimized sparking
Welds materials with thicknesses from 0.1 mm to 0.25 mm
Compatible with nickel strip, steel sheet, stainless steel, and aluminum
1.8-inch color TFT display showing voltage, temperature, and pulse time

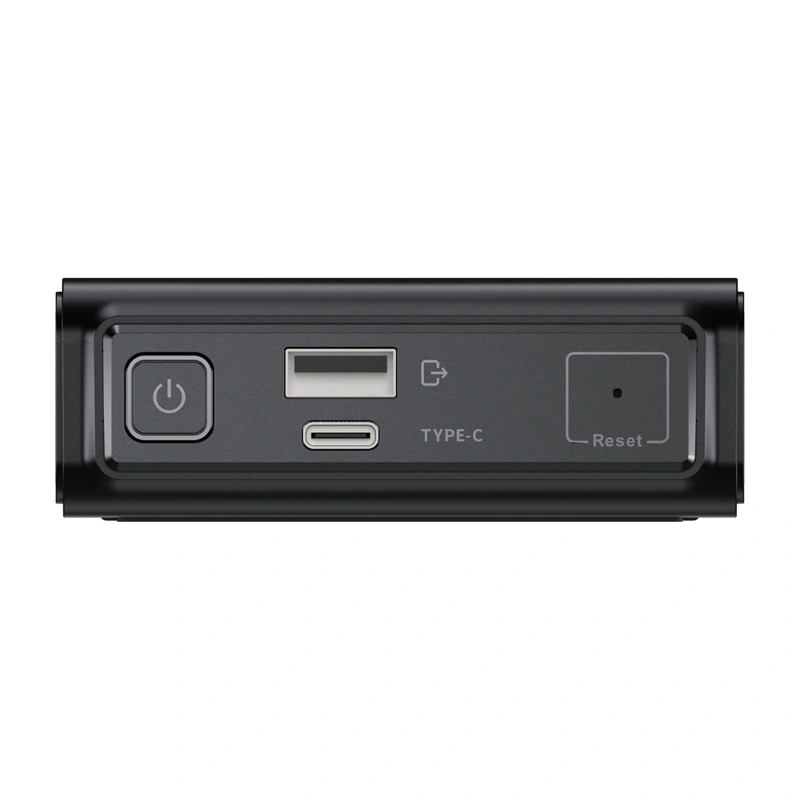

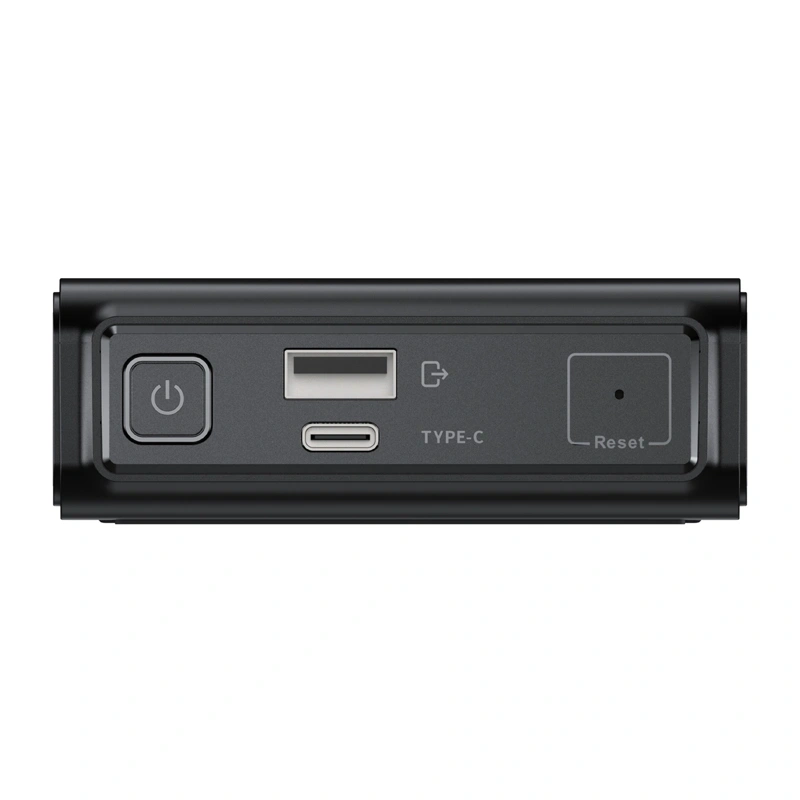

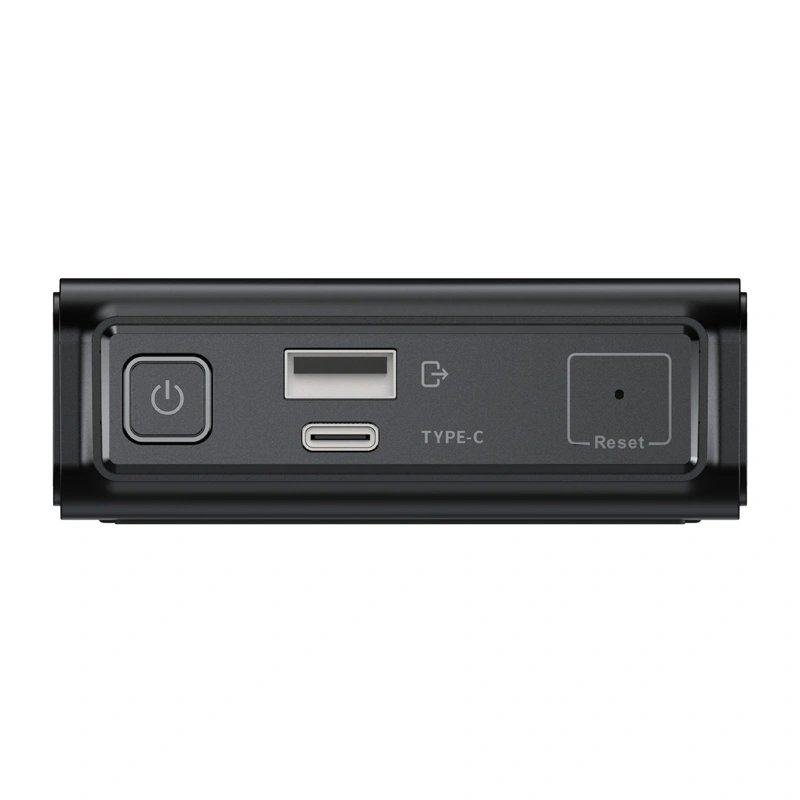

5V / 2.1A USB output to charge external devices
Built-in protection against short circuit, overheating, overload, and overcharging

Manufacturer	FNIRSI
Model	SWM10
Battery capacity	5000 mAh
Maximum welding current	1200 A
Thickness of welded material	0.1-0.25 mm
Welding materials	Nickel strip, steel sheet, stainless steel, aluminum
Display	1.8" TFT
Charging parameters	5V / 2.1A
Discharge parameters	5V / 2.1A
Dimensions	155 × 82 × 28 mm

What materials can the FNIRSI SWM-10 weld?

It is suitable for welding nickel strip, steel sheet, stainless steel, and aluminum in thicknesses ranging from 0.1 mm to 0.25 mm.

Can this spot welder charge other USB devices?

Yes, it features a 5V / 2.1A USB output port powered by its 5000 mAh battery to charge external devices.

What items are included in the package?

The package includes the FNIRSI SWM-10 spot welder, electrodes with wires, nickel tape, spare welding needles, an instruction manual, and a USB charging cable.
