FNIRSI HS-02A 100 W Smart Soldering Iron, USB-C PD / DC, with 6 Tips
| Products ID: | 185033 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 5905156102262 |
Delivery options to:
Choose country

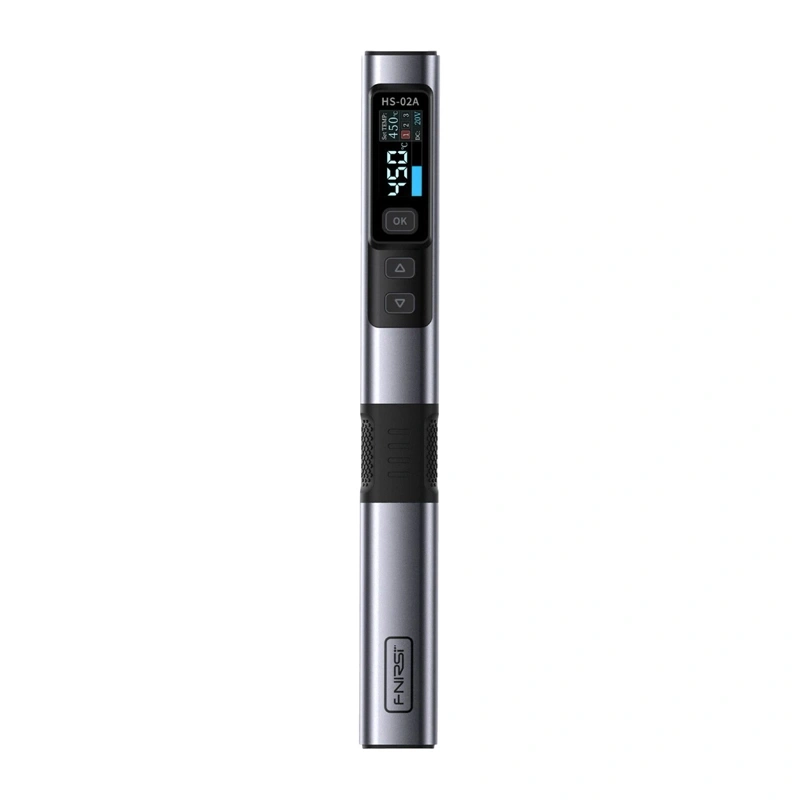

The FNIRSI HS-02A is a smart digital soldering iron featuring 100 W maximum output, rapid heating, and segmented PID temperature regulation from 100 to 450°C. Engineered for both precision electronics servicing and mobile field work, it supports USB-C Power Delivery, Quick Charge, and DC 9–20 V input power sources.
Key Features
- 100 W Power and Fast Heating: Maintains stable heat under load with tinning time around 5 seconds.
- Precise PID Regulation: Delivers temperature accuracy within 2% and allows quick switching across 3 saved presets (CH1, CH2, CH3).
- Flexible Power Options: Operates via USB-C PD, QC chargers, external power banks, or workshop DC supplies (9–20 V).
- Color IPS Screen: Integrated 0.96" display with physical buttons provides clear temperature and status monitoring.
- Integrated Safety: Features electrostatic discharge (ESD) protection with grounding capability and automatic inductive sleep mode.
- Robust Metal Housing: Built from CNC-machined aluminum with a non-slip silicone grip for secure handling.
| Manufacturer | FNIRSI |
|---|---|
| Model | HS-02A |
| Device type | Smart digital soldering iron |
| Maximum power | 100 W |
| Operating temperature range | 100–450°C (180–842°F) |
| Temperature control accuracy | < 2% |
| Temperature control type | Segmented PID control |
| Heating (tinning) time | approx. 5 s |
| Power supply | USB-C Power Delivery / Quick Charge / DC |
| Input voltage range | 9–20 V |
| Maximum supported power supply | 100 W |
| Adaptive power control | Yes (automatic adjustment to power source) |
| Sleep mode | Automatic (inductive) + manual (one-click standby) |
| Electrostatic protection | Yes (ESD, grounding possible) |
| Display | 0.96" color IPS HD |
| User interface | Screen + physical control buttons |
| Temperature profiles | Saved presets (CH1 / CH2 / CH3) |
| Housing material | CNC-machined aluminum + silicone |
| Handle | Non-slip, silicone |
| Soldering iron length | 180 mm |
| Weight | approx. 61 g |
| Tip type | Replaceable, dedicated to the version |
| Tip length | 9 cm |
| Heating core resistance | 2.5 Ω |
What is included with the FNIRSI HS-02A?

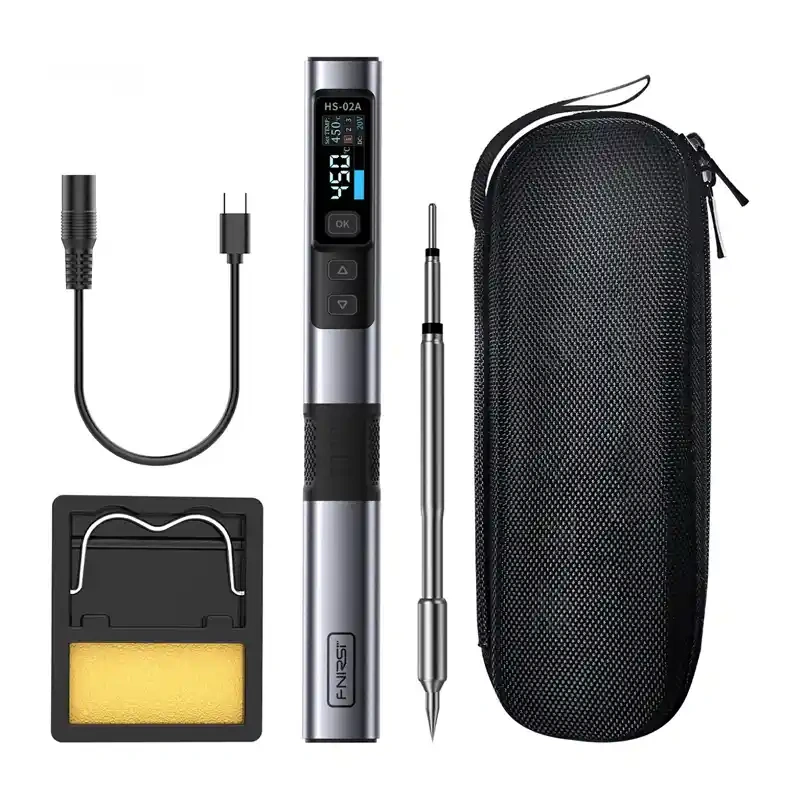

The package includes the FNIRSI HS-02A soldering iron, 6 soldering tips, a USB-C power cable, a mini soldering stand, and a carrying bag.
What power supplies are compatible with this soldering iron?
It can be powered via USB-C using Power Delivery (PD) or Quick Charge (QC) standards, or via a DC power source supporting an input voltage of 9–20 V.
How does the sleep mode operate?
The inductive sleep function lowers the tip temperature when the iron is rested on its stand, immediately recovering the target temperature once lifted.
