FNIRSI HS-02A MAX 100W Smart Soldering Iron with Tool Kit

Q: What power sources are compatible with the FNIRSI HS-02A?

It can be powered via USB-C Power Delivery, Quick Charge, or classic DC supplies with an input voltage range of 9–20 V and up to 100 W power.

Q: What items are included in the tool kit?

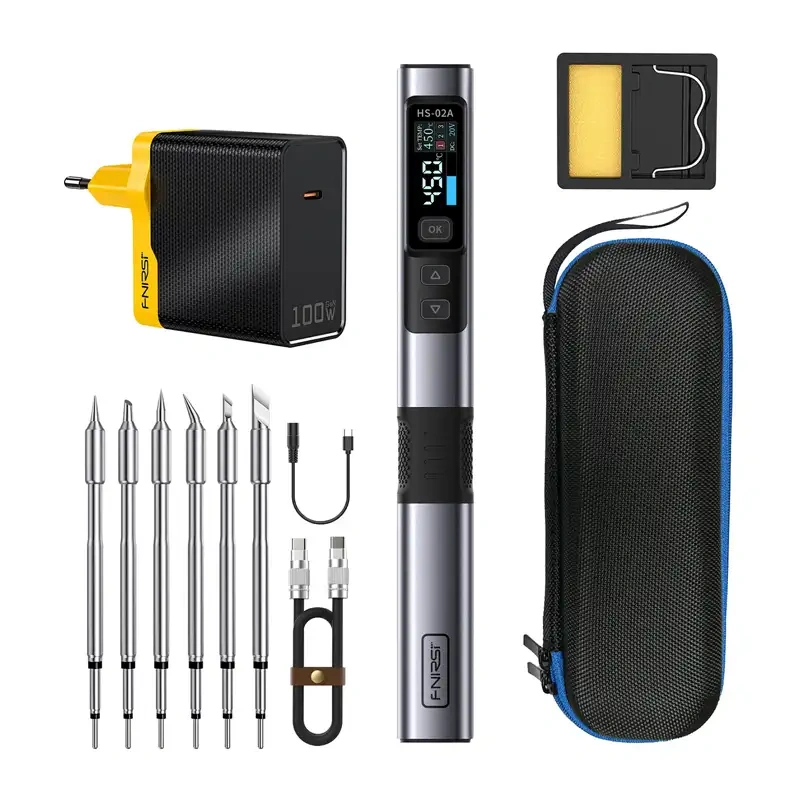

The kit includes the FNIRSI HS-02A soldering iron, a tool box, 6 soldering tips, a USB-C power cable, a tip cleaner, a solder residue container, 42 g of lead-free solder wire, a 100W charger, a C2C cable, an adapter cable, a soldering stand, and a carrying bag.

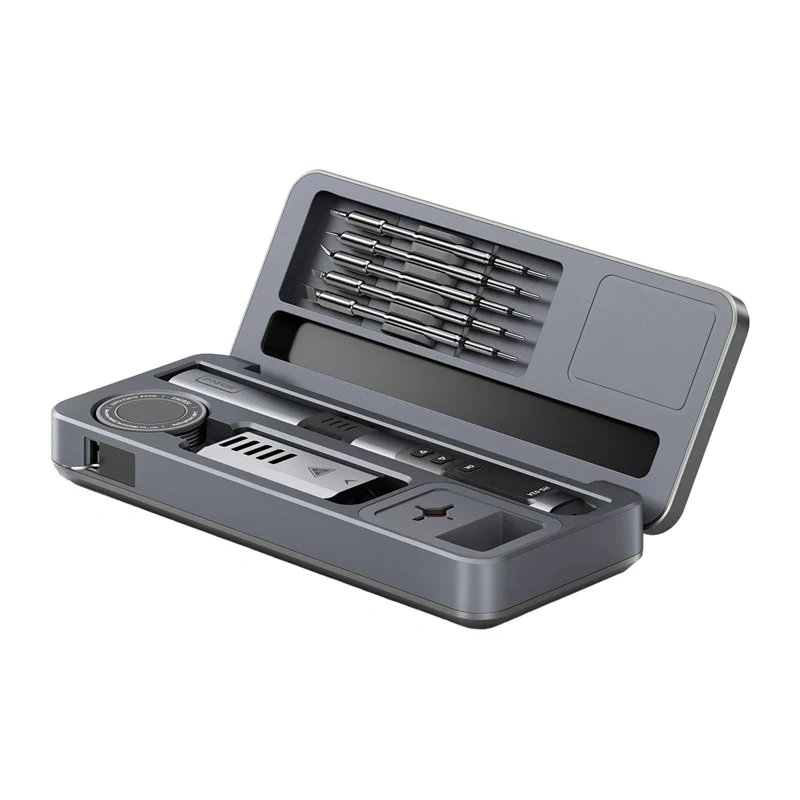

FNIRSI HS-02A MAX 100W Smart Soldering Iron with Tool Kit — primary image

FNIRSI HS-02A MAX 100W Smart Soldering Iron with Tool Kit — image 2

FNIRSI HS-02A MAX 100W Smart Soldering Iron with Tool Kit — image 3

Price: 115.30 €

Products ID:	176367
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5905156102484

Delivery options to:

Choose country

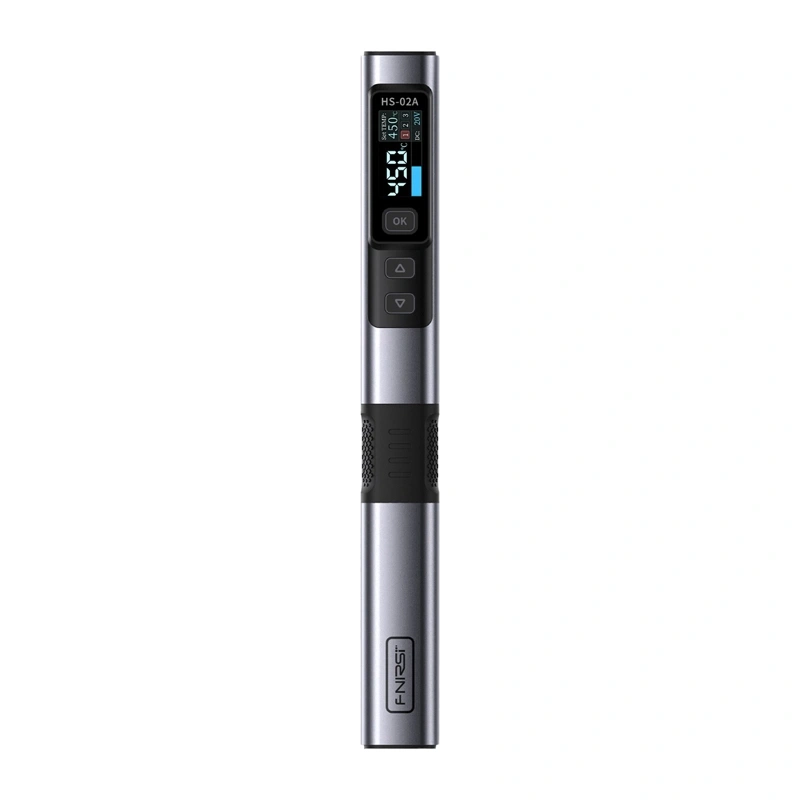

FNIRSI HS-02A MAX 100W Smart Soldering Iron with Tool Kit

The FNIRSI HS-02A MAX is a high-performance 100W smart soldering iron engineered for precision and portability. With support for USB-C Power Delivery, Quick Charge, and DC 9–20V input, it delivers fast heating and stable PID temperature control from 100°C to 450°C for workshop and field electronics work.

Key Features

100W maximum power with rapid heating in approximately 5 seconds
0.96" color IPS HD display with intuitive physical buttons
Segmented PID temperature control with accuracy below 2%
Flexible power options via USB-C PD, QC, and DC 9–20V with adaptive power adjustment
Built-in ESD protection with grounding capability
CNC-machined aluminum housing with non-slip silicone grip
Automatic inductive sleep mode and manual standby

Manufacturer	FNIRSI
Model	HS-02A
Maximum power	100 W
Operating temperature range	100–450°C (180–842°F)
Temperature control accuracy	< 2%
Temperature control type	Segmented PID control
Heating time	Approx. 5 s
Power supply	USB-C Power Delivery / Quick Charge / DC
Input voltage range	9–20 V
Display	0.96" color IPS HD
Electrostatic protection	Yes (ESD, grounding possible)
Housing material	CNC-machined aluminum + silicone
Soldering iron length	180 mm
Weight	approx. 61 g
Tip length	9 cm
Heating core resistance	2.5 Ω

What power sources are compatible with the FNIRSI HS-02A?

It can be powered via USB-C Power Delivery, Quick Charge, or classic DC supplies with an input voltage range of 9–20 V and up to 100 W power.

What items are included in the tool kit?

The kit includes the FNIRSI HS-02A soldering iron, a tool box, 6 soldering tips, a USB-C power cable, a tip cleaner, a solder residue container, 42 g of lead-free solder wire, a 100W charger, a C2C cable, an adapter cable, a soldering stand, and a carrying bag.
