FNIRSI HS-02A F 100 W Smart Soldering Iron Kit

Q: What is included in the FNIRSI HS-02A F set?

The package includes the FNIRSI HS-02A soldering iron, 6 soldering tips, a USB-C power cable, a 65W PD charger, a mini soldering stand, and a carrying bag.

Q: What power sources can be used with this soldering iron?

The HS-02A supports USB-C Power Delivery (PD), Quick Charge (QC), and DC power sources within an input voltage range of 9–20V.

Q: What is the operating temperature range?

The operating temperature range is 100–450°C (180–842°F) with PID control accuracy of less than 2%.

FNIRSI HS-02A F 100 W Smart Soldering Iron Kit — primary image

FNIRSI HS-02A F 100 W Smart Soldering Iron Kit — image 2

Price: 102.30 €

Products ID:	184977
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	5905156102255

Delivery options to:

Choose country

FNIRSI HS-02A F 100 W Smart Soldering Iron Kit

The FNIRSI HS-02A is a versatile 100W smart soldering iron combining rapid heating, precise PID temperature control, and wide power supply compatibility for benchtop and field service work.

Key Features

Maximum 100W power output with 100–450°C temperature range and PID control accuracy under 2%
Multi-source power input via USB-C Power Delivery, Quick Charge, and DC 9–20V with adaptive power regulation
Crisp 0.96" color IPS HD display with physical buttons and 3 preset temperature profiles (CH1/CH2/CH3)
CNC-machined aluminum housing featuring a non-slip silicone grip and tip protection cover
Automatic inductive sleep mode and built-in ESD protection with grounding support

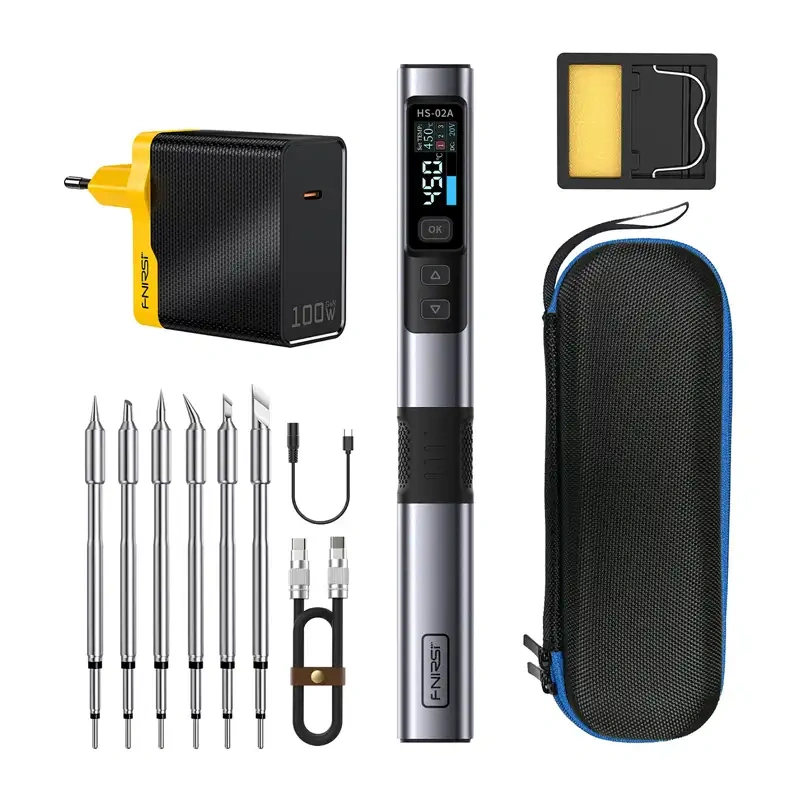

Includes 6 interchangeable tips, 65W PD power adapter, USB-C cable, mini stand, and carrying bag

Manufacturer	FNIRSI
Model	HS-02A
Device type	Smart digital soldering iron
Maximum power	100 W
Operating temperature range	100–450°C (180–842°F)
Temperature control accuracy	< 2%
Temperature control type	Segmented PID control
Heating (tinning) time	approx. 5 s
Power supply	USB-C Power Delivery / Quick Charge / DC
Input voltage range	9–20 V
Maximum supported power supply	100 W
Adaptive power control	Yes (automatic adjustment to power source)
Sleep mode	Automatic (inductive) + manual (one-click standby)
Electrostatic protection	Yes (ESD, grounding possible)
Display	0.96" color IPS HD
User interface	Screen + physical control buttons
Temperature profiles	Saved presets (CH1 / CH2 / CH3)
Housing material	CNC-machined aluminum + silicone
Handle	Non-slip, silicone
Soldering iron length	180 mm
Weight	approx. 61 g
Tip type	Replaceable, dedicated to the version
Tip length	9 cm
Heating core resistance	2.5 Ω

What is included in the FNIRSI HS-02A F set?

The package includes the FNIRSI HS-02A soldering iron, 6 soldering tips, a USB-C power cable, a 65W PD charger, a mini soldering stand, and a carrying bag.

What power sources can be used with this soldering iron?

The HS-02A supports USB-C Power Delivery (PD), Quick Charge (QC), and DC power sources within an input voltage range of 9–20V.

What is the operating temperature range?

The operating temperature range is 100–450°C (180–842°F) with PID control accuracy of less than 2%.
