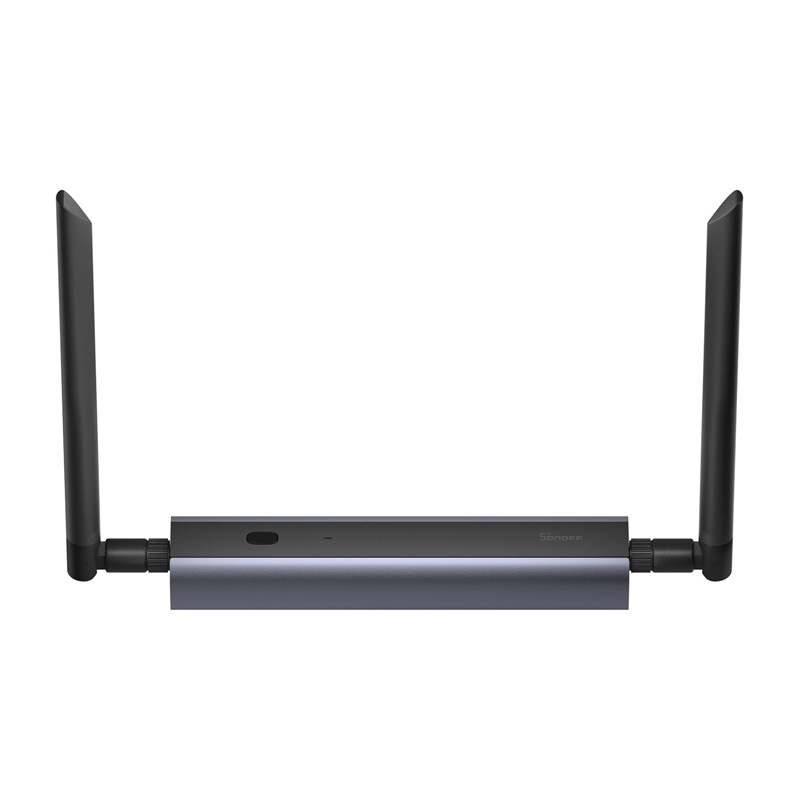

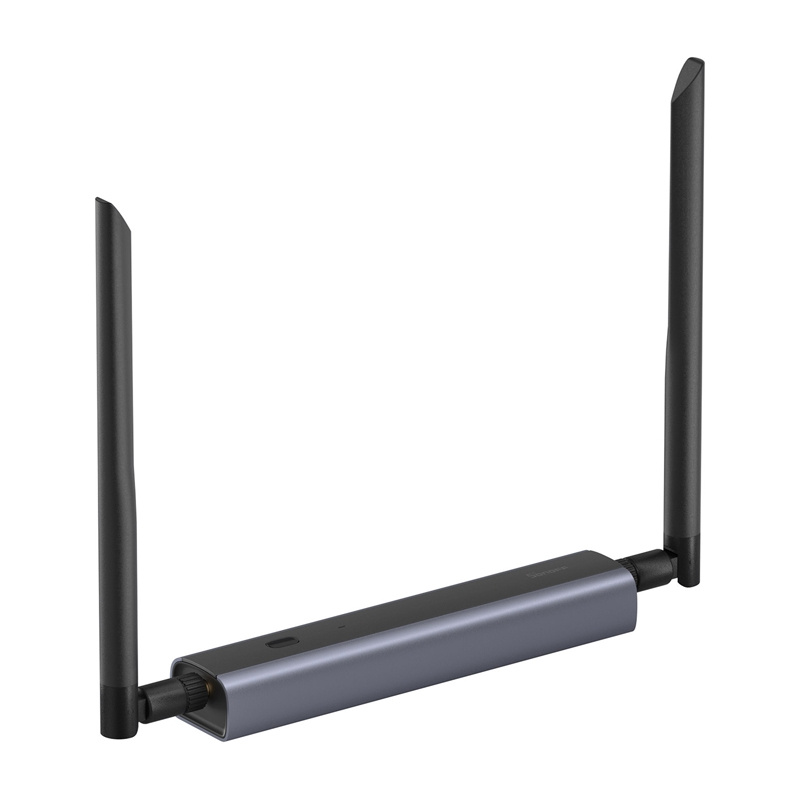

SONOFF Dongle Max Zigbee Gateway, Gray

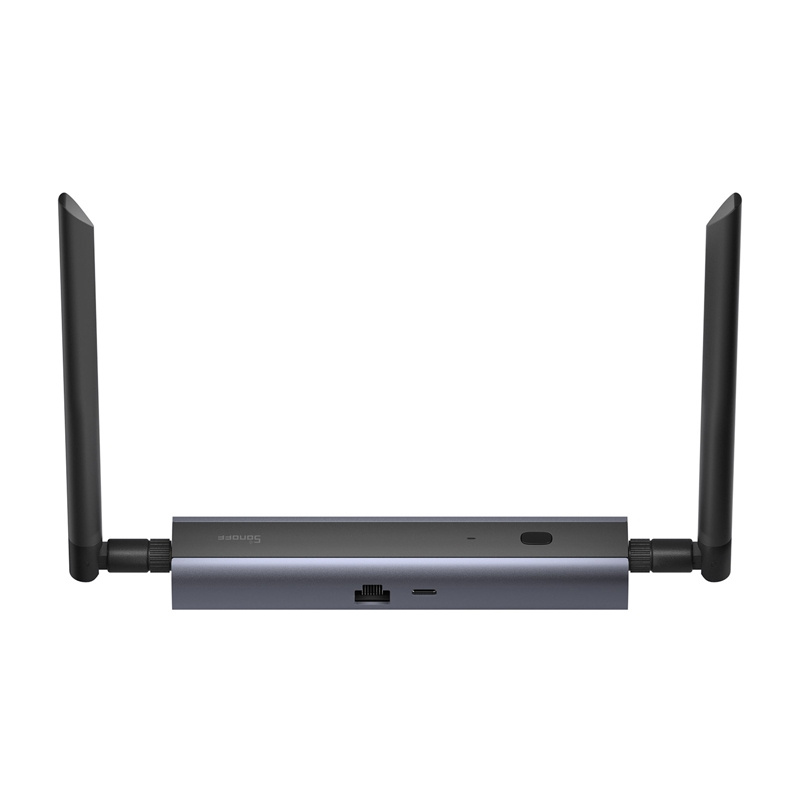

SONOFF Dongle Max Zigbee Gateway, Gray — image 3

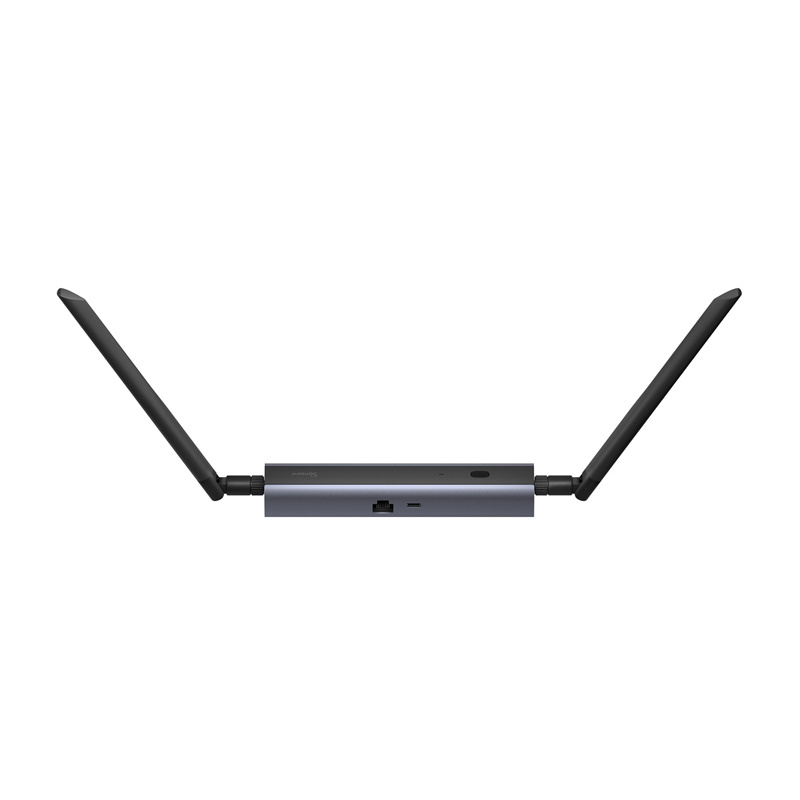

SONOFF Dongle Max Zigbee Gateway, Gray — image 4

Price: 45.00 €

Products ID:	175905
Manufactured by:	Sonoff
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6920075743227

Delivery options to:

Choose country

SONOFF Dongle Max is a versatile Zigbee gateway designed to connect Zigbee and Thread devices to platforms such as Home Assistant and Zigbee2MQTT.

Key Features

Three connection methods: Ethernet with PoE support, Wi-Fi, and USB Type-C
Equipped with EFR32MG24 and ESP32 chipsets
Operates as a Zigbee coordinator, router, or Thread RCP
Local web console for status viewing, firmware updates, and settings configuration
Durable housing constructed from aluminum and PC + ABS

Manufacturer	Sonoff
Model	Dongle Max
Input voltage	5V⎓1A via Type-C connector or 48V⎓0.25A via PoE port
Wireless connectivity	Zigbee 3.0, Wi-Fi IEEE 802.11b/g/n 2.4GHz
Operating temperature range	-10°C to 60°C
Housing material	Aluminum, PC + ABS
USB connector	Type-C
Network connector	RJ45
Color	Gray

What connection methods are available for Dongle Max?

The gateway can be connected via Ethernet (RJ45) with PoE support, 2.4GHz Wi-Fi, or via a USB Type-C connection.

What is included in the package?

The package includes the ZigBee gateway, a USB-A to USB-C cable, a mounting bracket, 2 tapes, mounting hardware (4 wall plugs, 4 screws), and a user manual.
