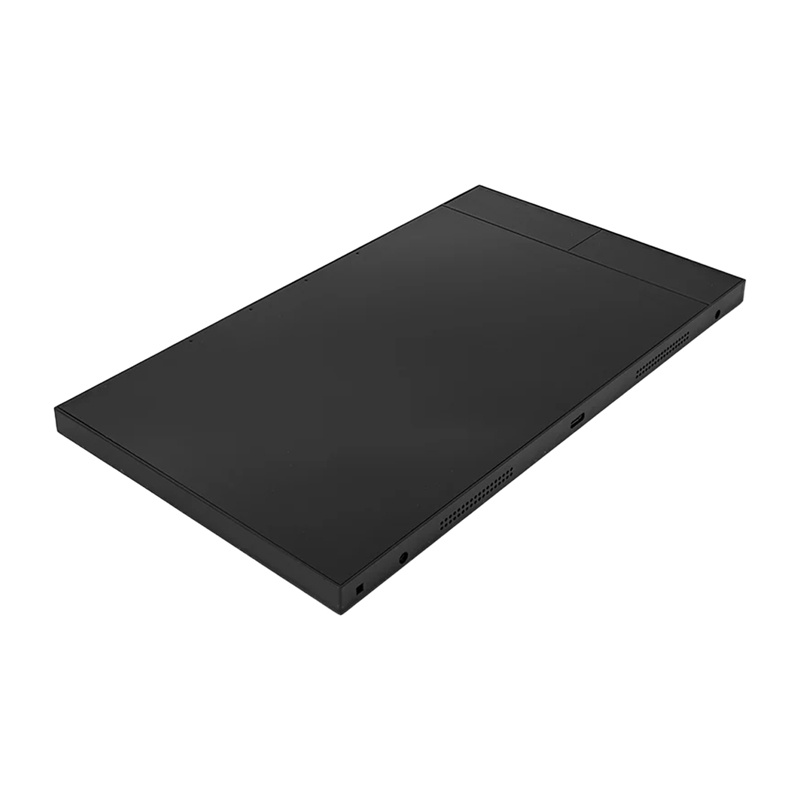

Control Panel 10.1" Shelly Wall Display XL WiFi/BLU, Black
Price: 318.50 €
| Products ID: | 176565 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 3800238073008 |
Delivery options to:
Choose countryThe Shelly Wall Display XL is a wall-mounted smart home control panel featuring a 10.1" touchscreen display and built-in relay for device management and home automation.
Key Features
- 10.1" HD Touchscreen: 1280 × 752 resolution with responsive 5-point touch panel for intuitive system navigation.
- Quad-Core Processor: Rockchip RK3566 CPU with 2 GB RAM and 16 GB Flash memory running Android 11 for smooth responsiveness.
- Built-in Relay & Buttons: Direct control of loads up to 1,500 W (5 A) and 4 customizable physical buttons for quick action triggering.
- Seamless Connectivity: Dual-band Wi-Fi 6 (2.4/5 GHz) and Bluetooth 5.4, with support for Home Assistant, MQTT, and Webhooks.
- Integrated Audio: Built-in 2 × 2 W stereo speakers and a four-microphone array for music playback, Internet radio, and notifications.
| Manufacturer | Shelly |
|---|---|
| Model | WallDisplayXLB |
| Display size | 10.1" |
| Screen resolution | 1280 × 752 px |
| Touchscreen | 5-point capacitive (G+FF) |
| Processor | Rockchip RK3566 Quad-core Cortex-A55 |
| RAM | 2 GB |
| Flash memory | 16 GB |
| Operating system | Android 11 |
| Connectivity | Wi-Fi 6 Dual Band (2.4 GHz / 5 GHz), Bluetooth 5.4 |
| Max switching power / current | 1500 W / 5 A (240 V~) |
| Power supply | 100-240 V~ 50/60 Hz or USB-C 5 V / 3 A |
| Speakers | 2 × 2 W |
| Microphone | Four-microphone array |
| Mounting | Standard EU wall box |
| Housing material | Metal, PC coated, glass |
| Dimensions | 155.8 × 272.5 × 38.3 mm |
| Weight | 920 g |
| Color | Black |
How is the Shelly Wall Display XL mounted?
It is designed to be installed into a standard EU wall mounting box.
What power rating does the built-in relay support?
The built-in relay supports switching devices up to 1,500 W with a maximum current of 5 A at 240 V~.
Which smart home protocols and platforms are supported?
The panel works with the Shelly Smart Control app, Home Assistant, MQTT, and Webhooks.
