SONOFF Dongle-LMG21 ZigBee and Thread USB Gateway with Antenna, Dark Gray
Sonoff
| Products ID: | 192310 |
|---|---|
| Manufactured by: | Sonoff |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6920075743456 |
Delivery options to:
Choose country

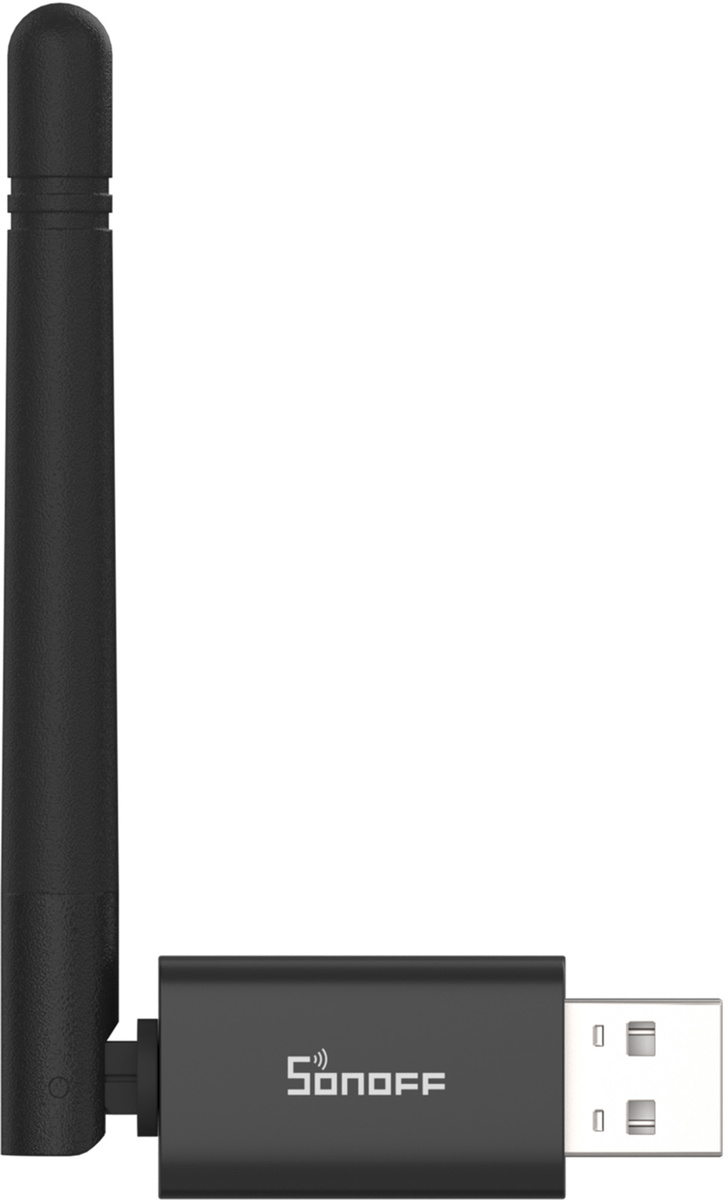

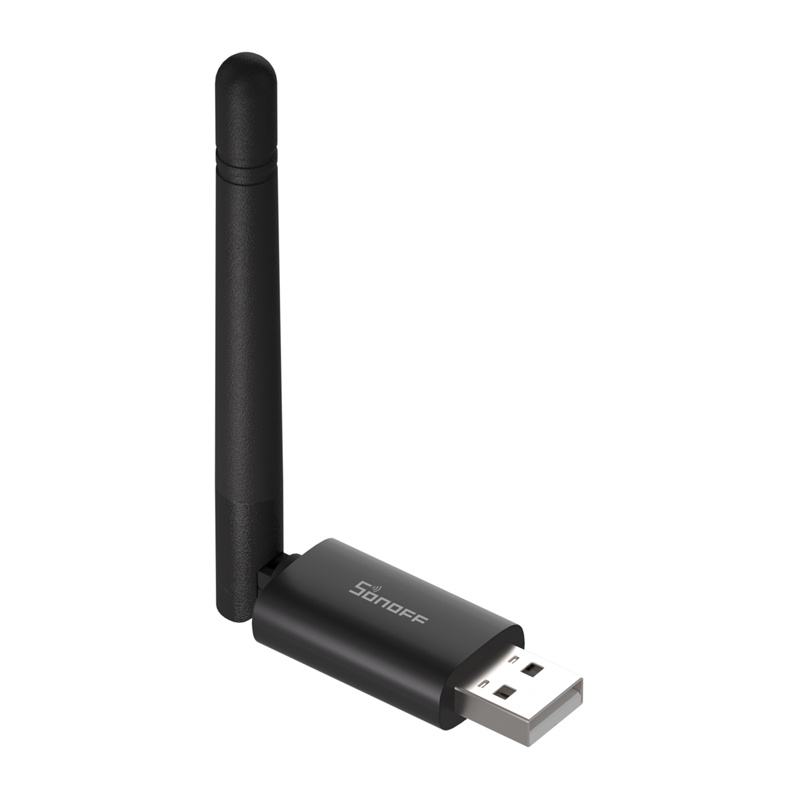

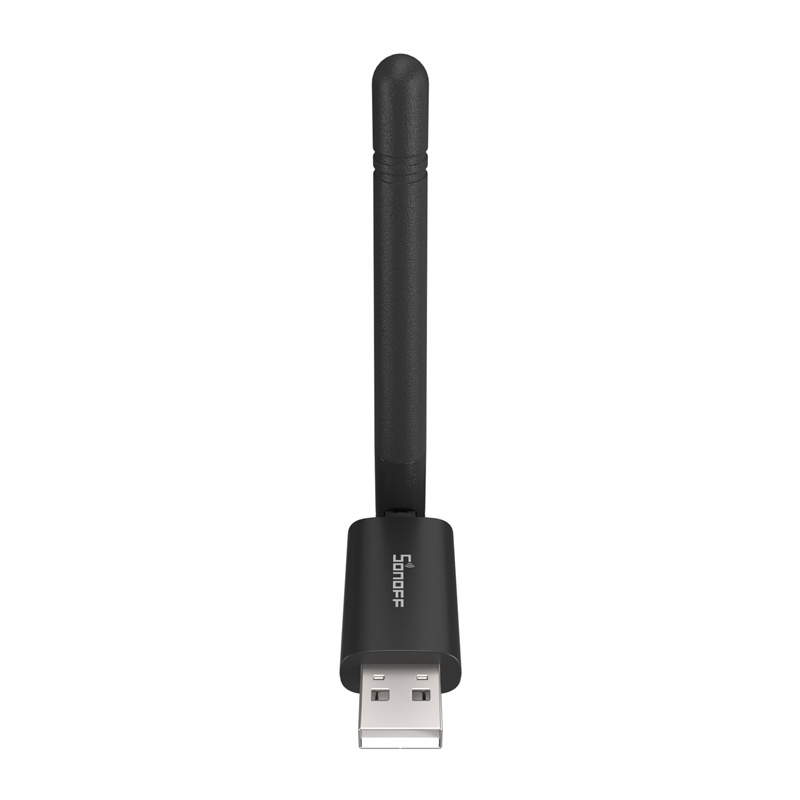

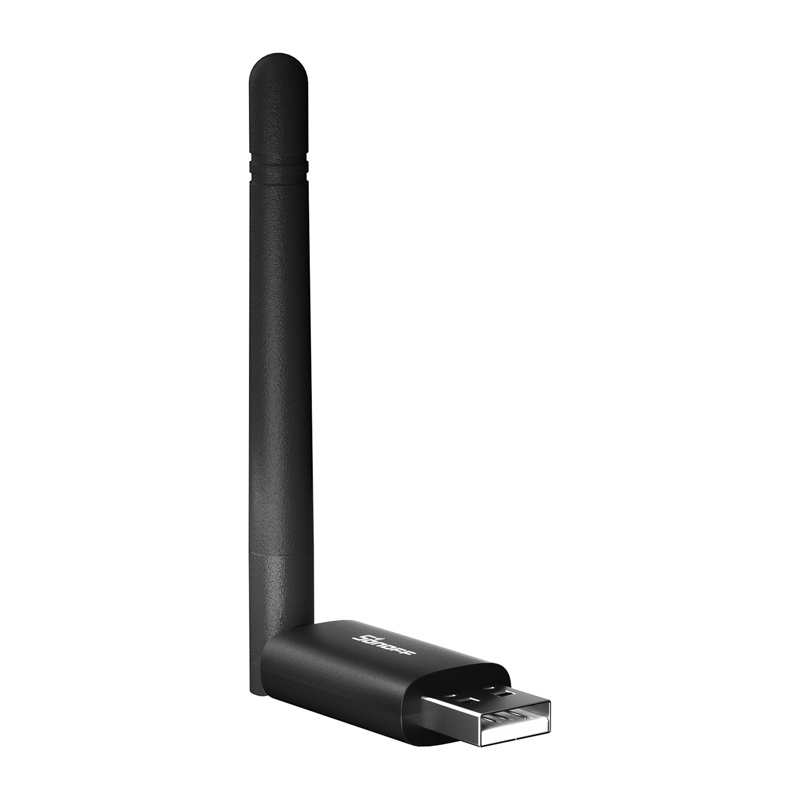

The SONOFF Dongle-LMG21 is a compact ZigBee and Thread USB gateway designed for stable integration of smart home devices with open-source automation platforms such as Home Assistant, Zigbee2MQTT, and openHAB.
Reliable EFR32MG21 Chip and Flexible Operating Modes
Powered by the Silicon Labs EFR32MG21 chipset, the adapter provides low power consumption and reliable communication across smart home networks. It can operate as a ZigBee coordinator, ZigBee router, Thread RCP, or in MultiPAN mode for simultaneous ZigBee and Thread communication. Dedicated flashing tools allow quick firmware customization for specific deployment needs.
Adjustable Antenna and Interference Reduction
The 90 mm adjustable antenna allows flexible positioning and delivers a communication range of up to 140 meters in open space. Built with an ultrasonically welded aluminum and PC + ABS housing, the dongle is roughly 65% smaller than older designs. An included 0.5 m USB extension cable allows the device to be placed away from host computer chassis to reduce electromagnetic interference.
| Manufacturer | SONOFF |
|---|---|
| Model | Dongle-LMG21 |
| Power supply | 5 V ⎓ 500 mA |
| ZigBee standard | IEEE 802.15.4 |
| Operating temperature | -10°C to 60°C |
| Housing material | aluminum, PC + ABS |
| Color | dark gray |
| Dimensions of the dongle | 43 × 18.5 mm |
| Antenna length | 90 mm |
Which platforms are compatible with the SONOFF Dongle-LMG21?
It is designed for open-source environments and works seamlessly with Home Assistant, openHAB, and Zigbee2MQTT for local smart home control without cloud dependency.
What operating modes does this USB gateway support?
The Dongle-LMG21 can function as a ZigBee coordinator, ZigBee router, Thread RCP, or in MultiPAN mode for concurrent ZigBee and Thread operation.

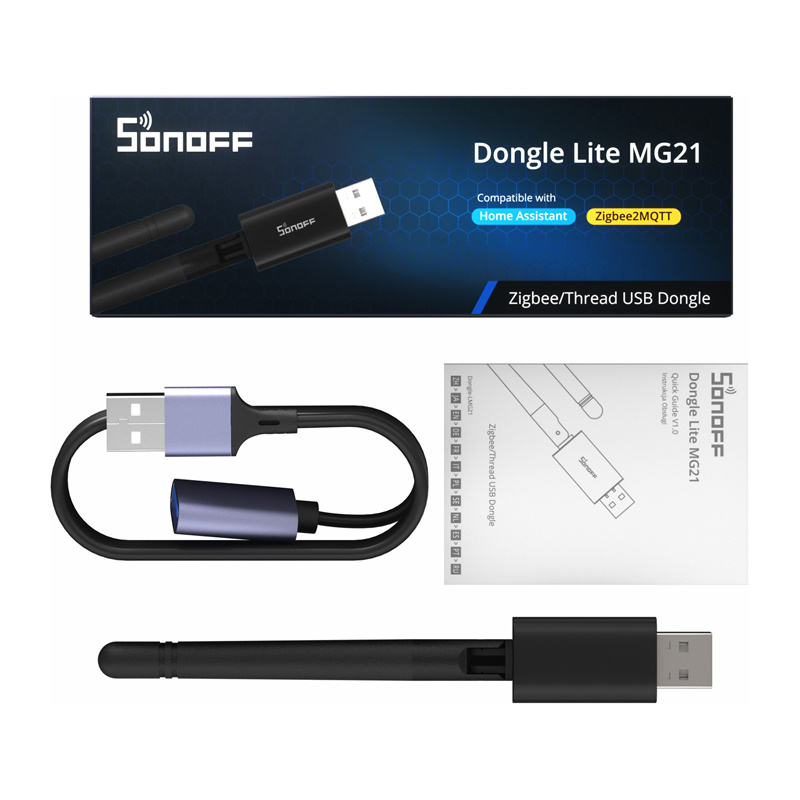

What items are included in the package?
The package includes the SONOFF Dongle-LMG21 ZigBee gateway, an adjustable-angle antenna, a 0.5 m USB extension cable, and a user manual.
