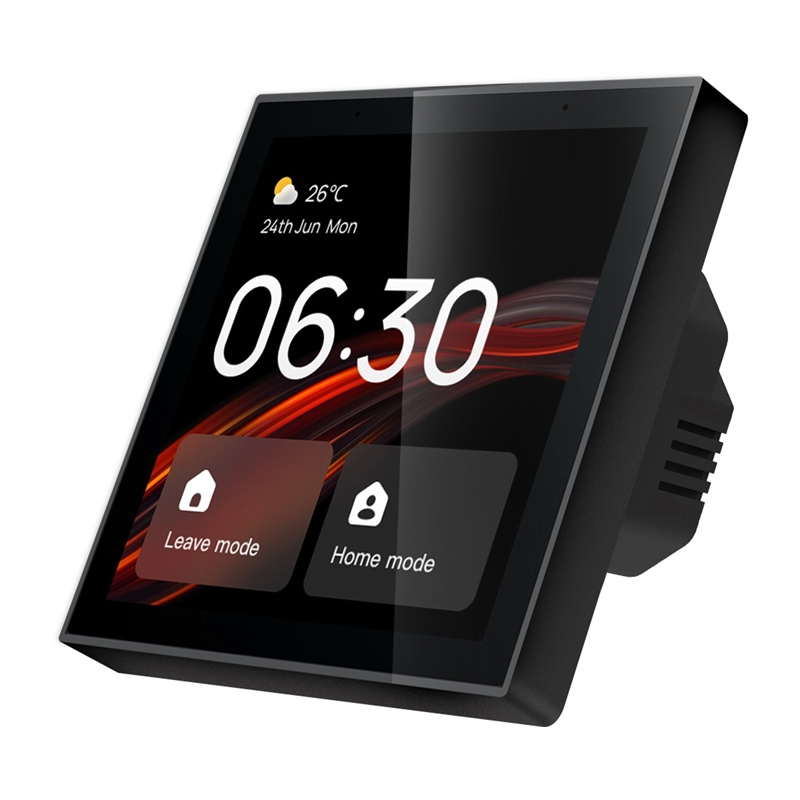

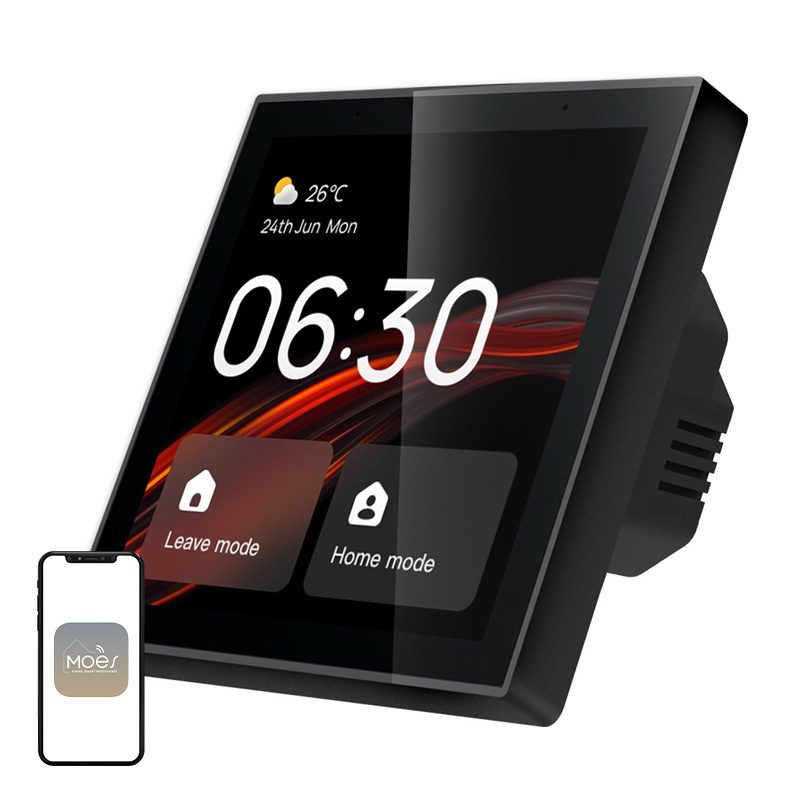

MOES CCP-TY-EU-LN-MS Smart Home Control Panel with 4" LCD Screen Wi-Fi Zigbee
Price: 112.20 €
| Products ID: | 173588 |
|---|---|
| Manufactured by: | Moes |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6974246475059 |
Delivery options to:
Choose countryThe MOES CCP-TY-EU-LN-MS is a central smart home control panel featuring a 4-inch HD touchscreen and a Linux operating system for unified home automation.
Key Features
- Built-in Zigbee gateway supporting direct connection of over 100 devices
- Tuya ecosystem compatibility and integrated Amazon Alexa voice assistant
- Direct control over lighting, temperature, curtains, and up to 20 product types
- Video doorbell intercom view support on the LCD screen
- Real-time weather, date, and clock display
| Manufacturer | MOES |
|---|---|
| Model | CCP-TY-EU-LN-MS |
| Display | 4" HD LCD touchscreen |
| Operating system | Linux |
| Wireless protocols | Wi-Fi, Zigbee, Bluetooth |
| Input | 100-240 VAC, 50/60 Hz |
| Rated current | 74 mA |
| Wi-Fi frequency | 2412–2472 MHz (Max. EIRP: 20 dBm) |
| ZigBee frequency | 2405–2480 MHz (Max. EIRP: 10 dBm) |
| Bluetooth frequency | 2402–2480 MHz (Max. EIRP: 10 dBm) |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% to 90% (RH non-condensing) |
| Dimensions without base | 86 x 86 x 10.5 mm |
| Dimensions with base | 86 x 86 x 36.2 mm |
| Package contents | Control panel, 2x screws, user manual |
Does this control panel require an external Zigbee hub?
No, it features an integrated Zigbee gateway that directly connects at least 100 Zigbee slave devices.
What is the power supply requirement?
The device operates on 100-240 VAC at 50/60 Hz.
What items are included in the package?
The package includes the control panel, 2 mounting screws, and a user manual.
