Shelly 5TerminalAdd 5-Clamp Attachment for The Pill
Price: 21.00 €
| Products ID: | 176099 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 3800238073572 |
Delivery options to:

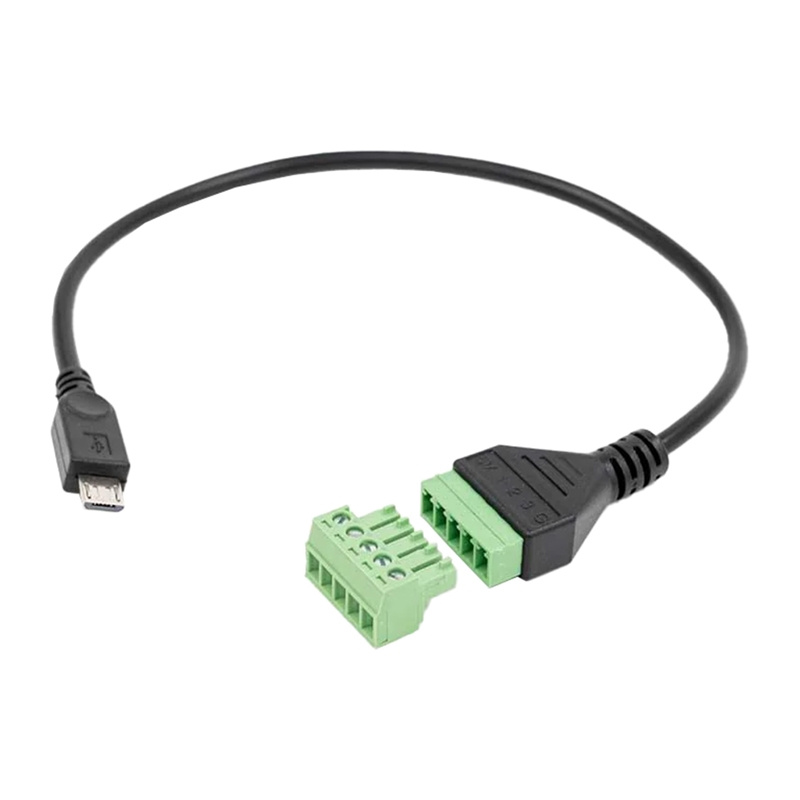

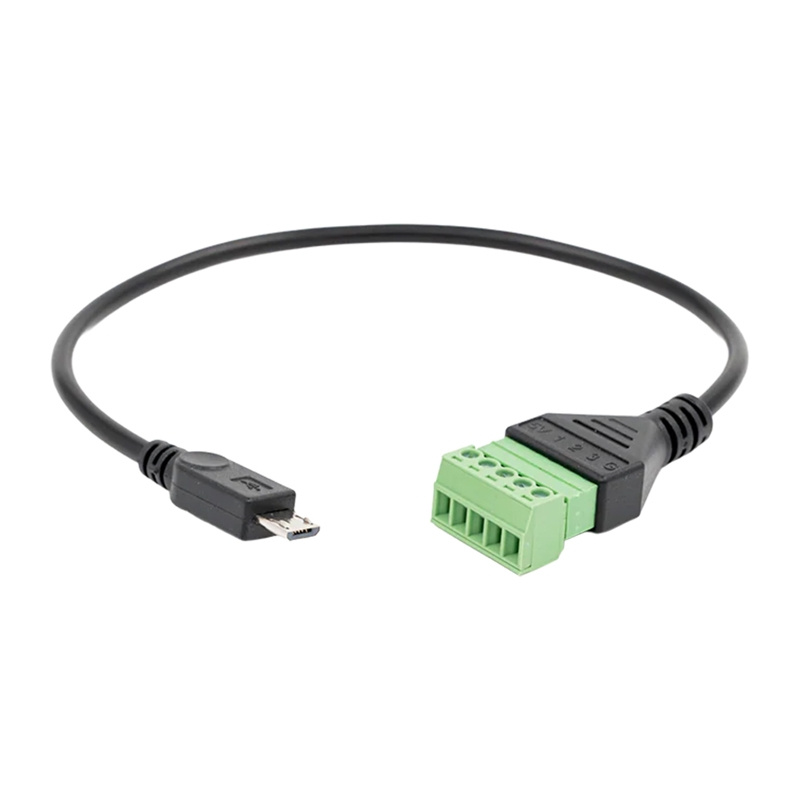

Choose countryThe Shelly 5TerminalAdd is a compact 5-pin expansion adapter designed for The Pill, expanding hardware interface access for IoT, home automation, and prototyping projects.
Key Features
- Power terminals: 5 V and GND
- Three configurable I/O pins with 3.3 V logic level
- Support for digital inputs/outputs and one analog input
- Compatibility with DS18B20 and DHT22 temperature sensors
| Manufacturer | Shelly |
|---|---|
| Model | 5TerminalAdd |
| Compatibility | The Pill |
| Configurable inputs/outputs (I/O) | 3 - 3.3 V logic level |
| Digital I/O support | Yes |
| Analog input | Yes |
| Sensor compatibility | DS18B20, DHT22 |
| Power terminals | 5 V and GND |
Which sensors are compatible with the Shelly 5TerminalAdd?
It supports DS18B20 and DHT22 temperature sensors.
What power connections does the module provide?
The module provides 5 V and ground (GND) power terminals.
