Digital AC-DC Bench Power Supply FNIRSI IPS3608 0-36 V 0-8 A 285 W

Price: 160.40 €

Products ID:	184973
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	5905156102170

Delivery options to:

Choose country

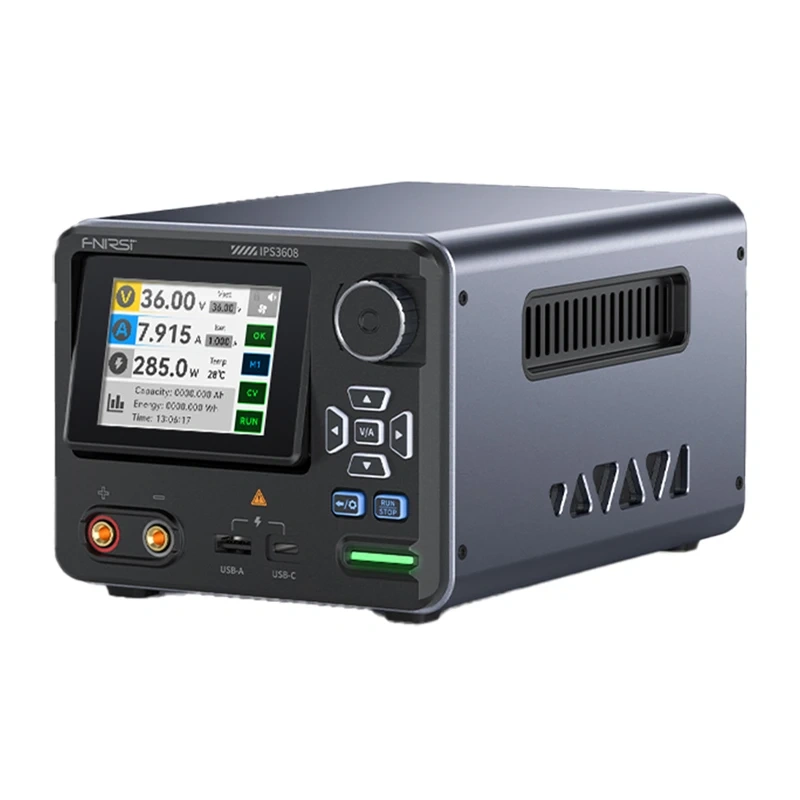

The FNIRSI IPS3608 is an intelligent programmable digital AC-DC bench power supply designed for precise and stable power delivery in electronics testing, laboratory research, and service work.

Key Features

Adjustable DC output of 0–36 V and 0–8 A with a total power rating up to 285 W
Ultra-low ripple of 10 mV and automatic switching between Auto CV and Auto CC modes
2.8-inch color TFT display with adjustable brightness, tilt angle, and light/dark themes
CNC-machined aluminum housing equipped with an active cooling fan
Storage for up to six sets of presets and computer software support for real-time monitoring
USB-A and USB-C output ports supporting fast charging protocols including PD and QC
Eight built-in protection mechanisms for safe and stable operation

Manufacturer	FNIRSI
Model	IPS3608
Screen	2.8-inch color screen
Backlight	Adjustable backlight brightness
Interface language	Chinese, English
Product dimensions	approx. 138 × 214 × 115 mm
Product weight	approx. 1539 g
Voltage range	100–240 V AC (50/60 Hz)
Setting resolution	Voltage 0.01 V; Current 0.001 A
Reading accuracy	Output voltage accuracy ± (0.3% + 3 bits); output current accuracy: ± (0.15% + 5 bits)
Operating conditions	Temperature: -10°C to 40°C \| Humidity: 0%–75% RH
Protections	Overvoltage, overcurrent, overload, thermal, undervoltage, short circuit, reverse connection, reverse current injection
Output	DC voltage 0–36 V \| Current 0–8 A \| Power 0–285 W
Load regulation	± (0.2% + 2 bits)
Fast charging	USB-C: PD 3.0 \| USB-A: Huawei FCP, Huawei SCP, AFC, QC 2.0, QC 3.0
