DC-DC Charger FOSSIBOT FAC580 580W

DC-DC Charger FOSSIBOT FAC580 580W — image 3

DC-DC Charger FOSSIBOT FAC580 580W — image 4

Price: 164.50 €

Products ID:	195993
Manufactured by:	FOSSIBOT
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	6942580505008

Delivery options to:

Choose country

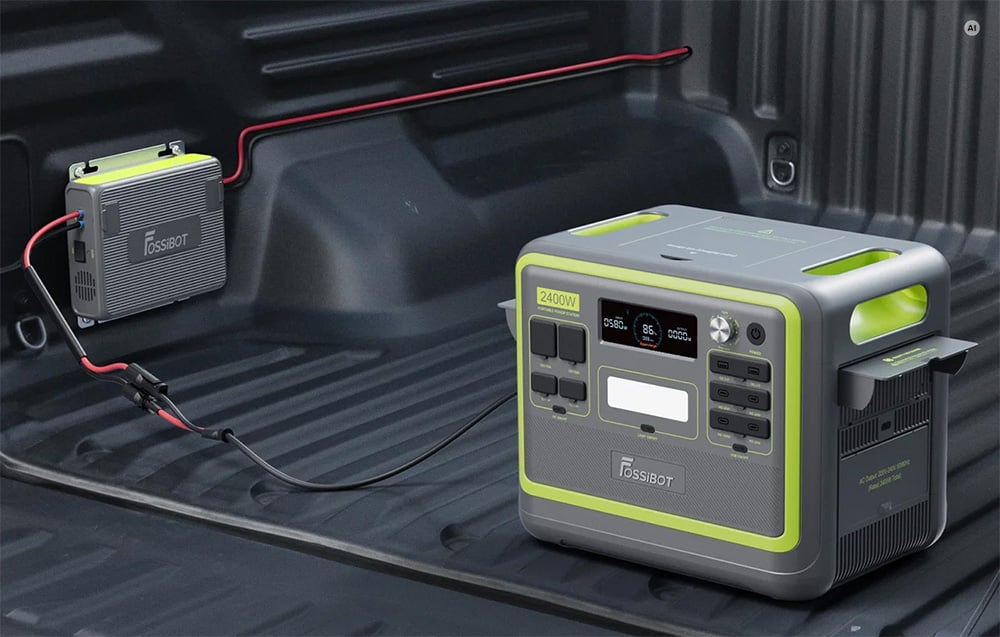

The FOSSIBOT FAC580 is a DC-DC car charger with a maximum output power of 580 W, designed for rapid recharging of portable power stations while driving. With up to 92% conversion efficiency, it charges up to 6 times faster than a standard 96 W cigarette lighter socket. The unit is compatible with all FOSSiBOT power stations as well as 99% of models from other brands, making it suitable for cars, SUVs, pickups, RVs, trucks, and yachts.

Two Tailored Operating Modes

The FAC580 adjusts output power according to input voltage to optimize electrical energy usage. In Mode 1 (for driving), power output reaches up to 300 W at 13.2–14 V and up to 580 W above 14 V, stopping below 13.2 V. Mode 2 is designed for situations when the engine is off, delivering up to 300 W at 12–12.75 V and up to 580 W above 12.75 V. If voltage drops below 12 V, the charger cuts power to protect the vehicle battery from over-discharge.

Stable Cooling and Comprehensive Protection

A cooling system featuring a fan on the left side and a ventilation vent on the right helps maintain steady operation. The device integrates multi-level protection against overvoltage, undervoltage, overcurrent, short circuits, reverse polarity, and extreme temperatures, safeguarding the vehicle battery, the charger, and the connected power station.

Manufacturer	Fossibot
Model	FAC580
Weight	0.8 kg
Dimensions (W x D x H)	182 × 162 × 47 mm
Charging input voltage range	12–18 V / 24–33 V
Maximum charging input current	45 A
Undervoltage protection threshold	12 V
Resumption voltage after undervoltage protection	12.5 V
Overvoltage protection threshold	35 V
Voltage at which charging resumes after overvoltage protection	31 V
Output power	580 W
No-load output voltage	45–48 V
Maximum output current	15 A
Charging conversion efficiency	92%
Operating temperature	From -20°C to 50°C

What is included in the package?

The package includes the FAC580 charger, a 5 m vehicle battery cable, a 0.5 m power station cable, 6 screws, 4 terminal covers, a screwdriver, and a user manual.

How does the charger prevent car battery over-discharge?

In Mode 2, when the vehicle engine is turned off, the charger automatically cuts off power if input voltage falls below 12 V.
