Holzmann ESZ250D_230V Electric Wire Rope Hoist 250 kg, 500 W

Price: 104.10 €

Products ID:	181067
Manufactured by:	Holzmann Maschinen
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	9120058376139

Delivery options to:

Choose country

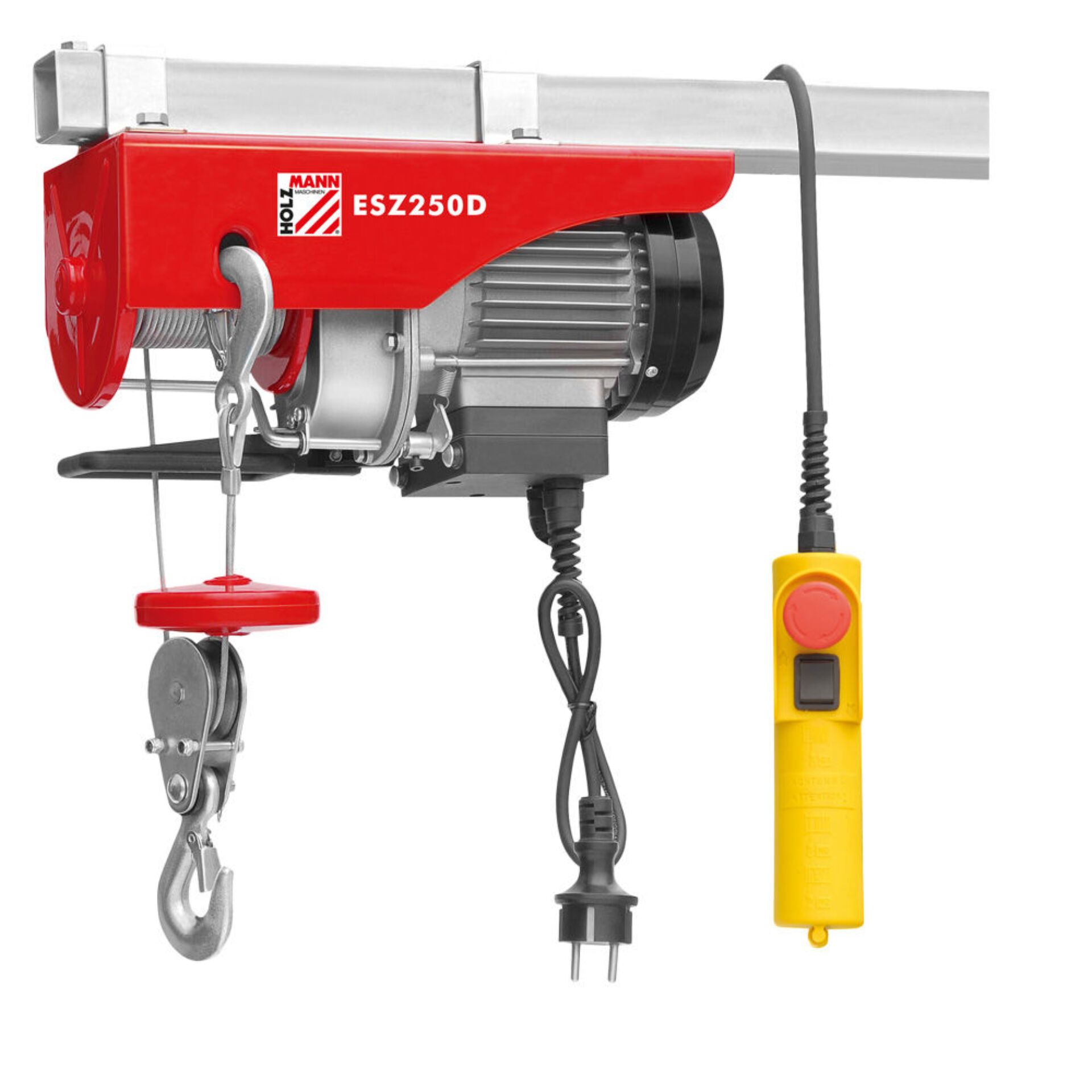

The Holzmann ESZ250D_230V electric wire rope hoist is designed for lifting and moving loads in indoor applications, powered by a standard 230 V electrical supply.

Key Features

Load capacity up to 250 kg with 2 modes: 125 kg at 12 m and 250 kg at 6 m
500 W motor power for smooth lifting operations
3 mm steel rope with 1870 N/mm² tensile strength
Die-cast aluminium housing for motor and gearbox
Powder-coated sheet steel outer structure for added durability
Long control cable enables comfortable operation from a safe distance
Compact net weight of 10 kg makes mounting and positioning easier

Motor power	500 W (S1), S3 (25%)
Voltage	230 V / 50 Hz
Load capacity at 12 m	max. 125 kg
Load capacity at 6 m	max. 250 kg
Steel rope	3 mm, 1870 N/mm²
Operation	Wired (long control cable)
Housing material	Die-cast aluminium, powder-coated sheet steel
Colour	Red / Silver
Net weight	10 kg
Power supply	Mains

What are the lifting capacity and height limits of this hoist?

The hoist supports 2 modes: lifting up to 125 kg to a height of 12 m, or up to 250 kg to a height of 6 m.

What materials are used for the hoist construction?

The motor and gearbox housing is made of die-cast aluminium, the outer frame is constructed from powder-coated sheet steel, and the hoist uses a 3 mm steel rope.
