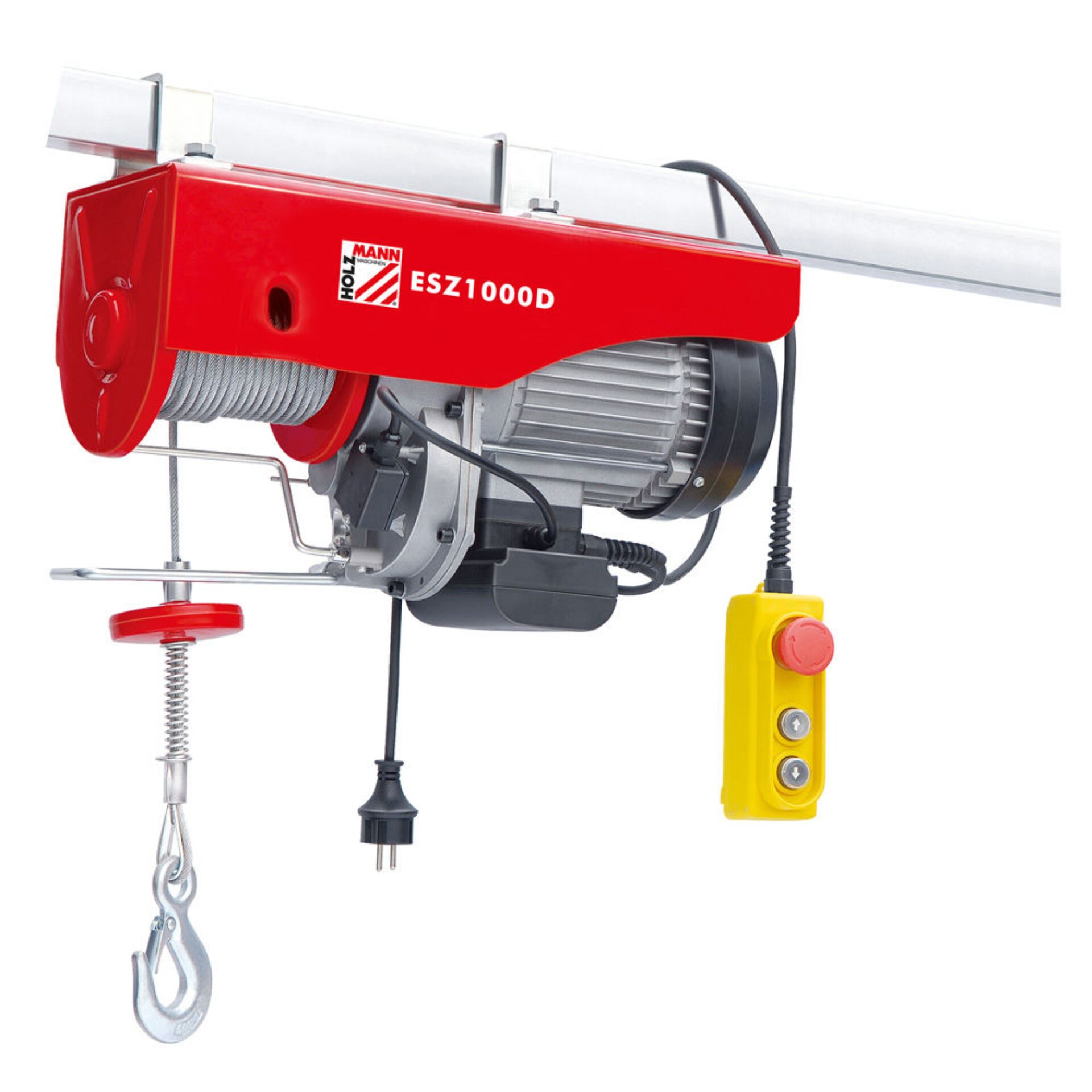

Holzmann ESZ1000D_230V Electric Rope Hoist, 1000 kg, 1600 W
Price: 326.10 €
| Products ID: | 183510 |
|---|---|
| Manufactured by: | Holzmann Maschinen |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 9120058376153 |
Delivery options to:
Choose countryThe Holzmann ESZ1000D_230V is an electric wire rope hoist designed for lifting and moving heavy loads in workshops, warehouses, or construction environments. Powered by a standard 230 V mains supply, it features a steel cable and a long control cable for practical operation.
Key Features
- Load capacity of up to 1000 kg at 6 m or up to 500 kg at 12 m lifting height
- 1600 W motor (S3 25%) delivering required power for repeated lifting cycles
- 5.6 mm steel cable with a tensile strength of 1770 N/mm²
- Powder-coated sheet steel housing with die-cast aluminium motor and gearbox housing
- Long control cable enabling operation from a safe distance
- Net weight of 31.50 kg suitable for fixed mounting
| Motor power S1 | 1600 W (S3 25%) |
|---|---|
| Voltage | 230 V 50 Hz |
| Load capacity (up to 12 m) | max. 500 kg at max. 12 m |
| Load capacity (up to 6 m) | max. 1000 kg at max. 6 m |
| Steel cable | 5.6 mm, 1770 N/mm² |
| Net weight | 31.50 kg |
| Colour | Red / Silver |
| Power supply | Mains |
What is the maximum load capacity of this hoist?
The hoist supports up to 1000 kg at a lifting height of up to 6 m, or up to 500 kg at a height of up to 12 m.
What kind of power connection is required?
The unit operates on a standard 230 V 50 Hz mains connection.
What are the specifications of the steel cable?
It is equipped with a 5.6 mm steel cable rated at 1770 N/mm².
