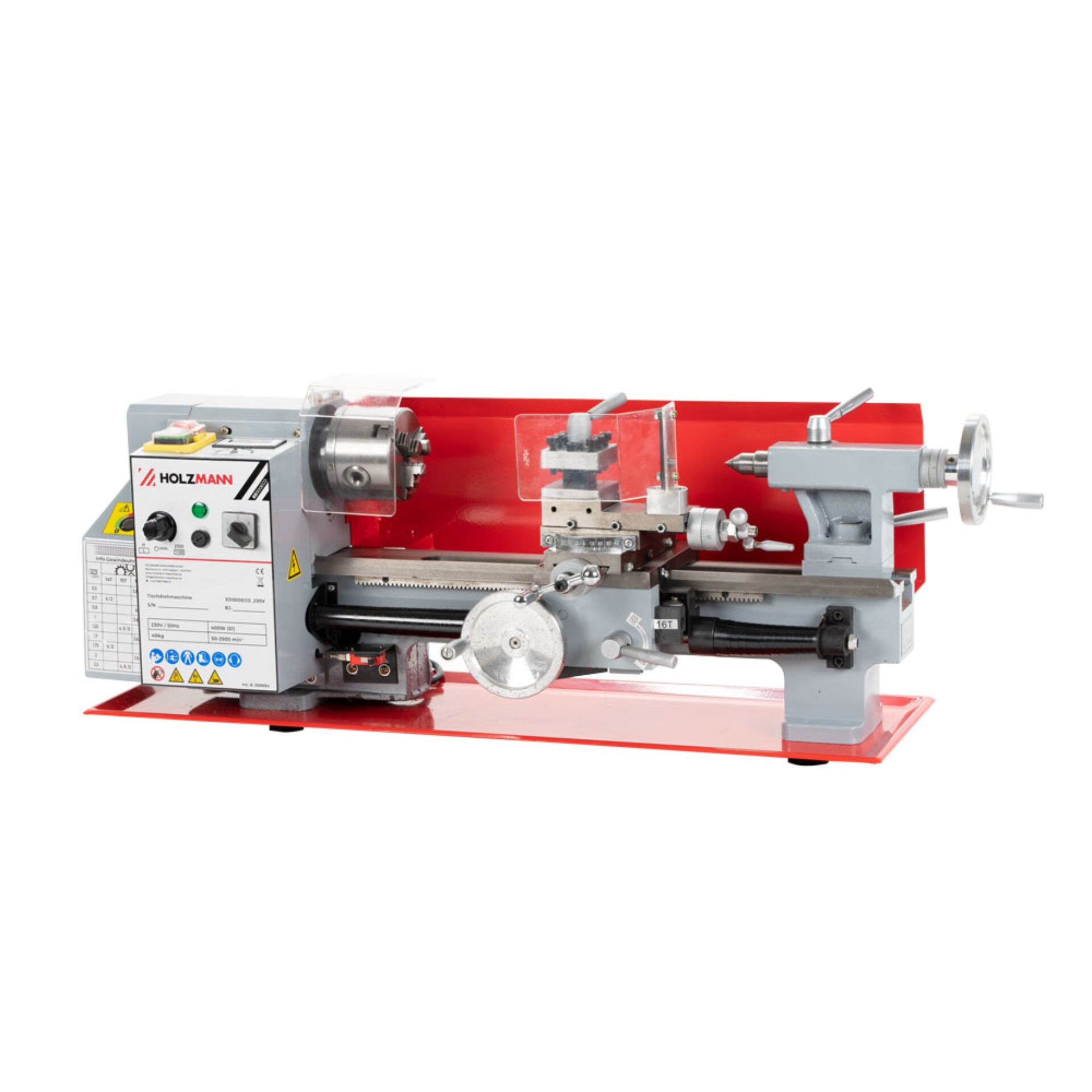

Holzmann ED300ECO 230V Benchtop Metal Lathe, 400W
Price: 795.30 €
| Products ID: | 183766 |
|---|---|
| Manufactured by: | Holzmann Maschinen |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 9120058376023 |
Delivery options to:
Choose country
The Holzmann ED300ECO_230V benchtop lathe features a compact design designed for metal turning work, model building, and DIY thread cutting applications.
Key Features
- Compact DIY model equipped with lead screw for thread cutting or automatic longitudinal feed
- Inductively hardened and precision-ground prism bed guides
- High spindle concentricity with infinitely variable speed from 50 to 2500 rpm

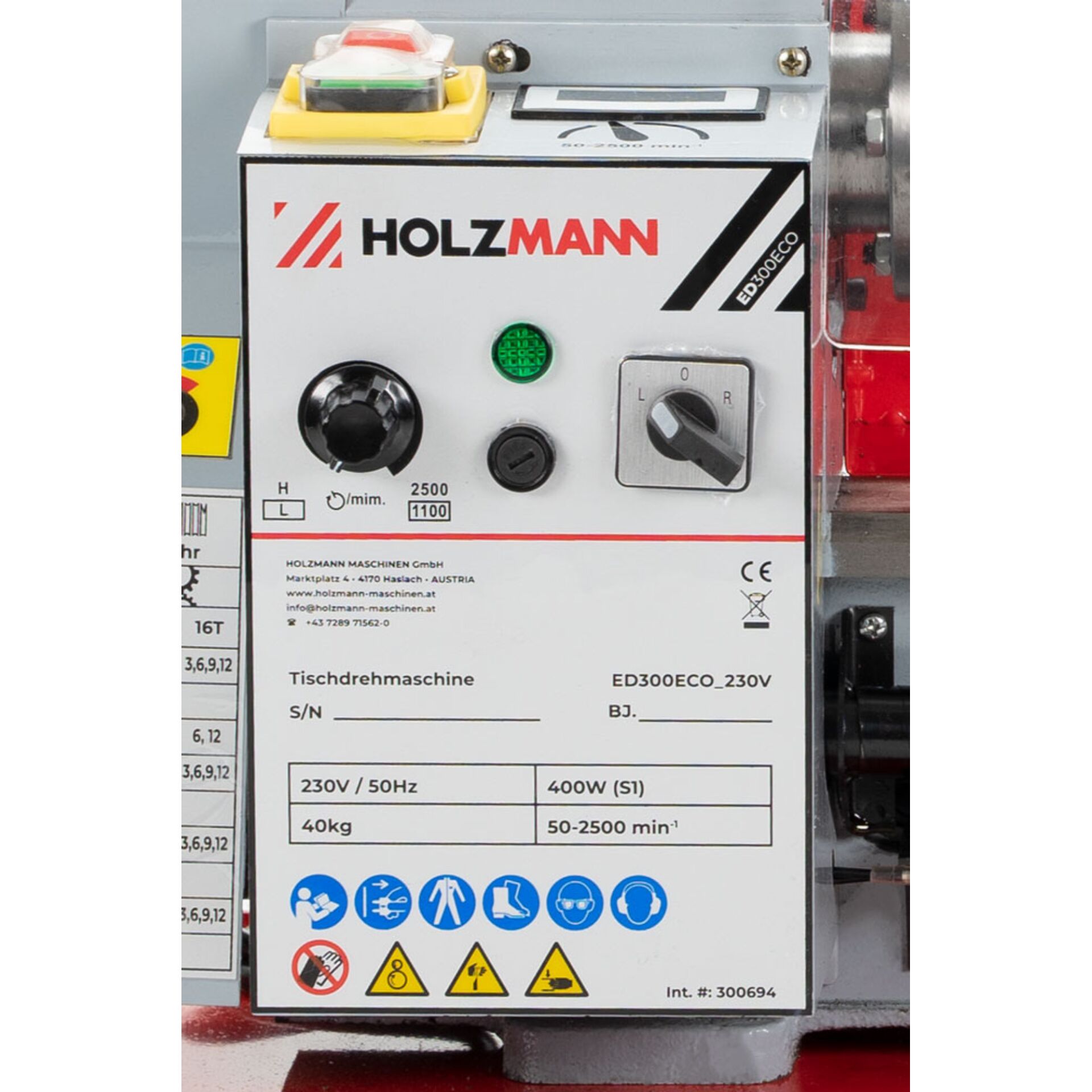

- Right and left rotation switchable on the control panel
- Movable tailstock for taper turning

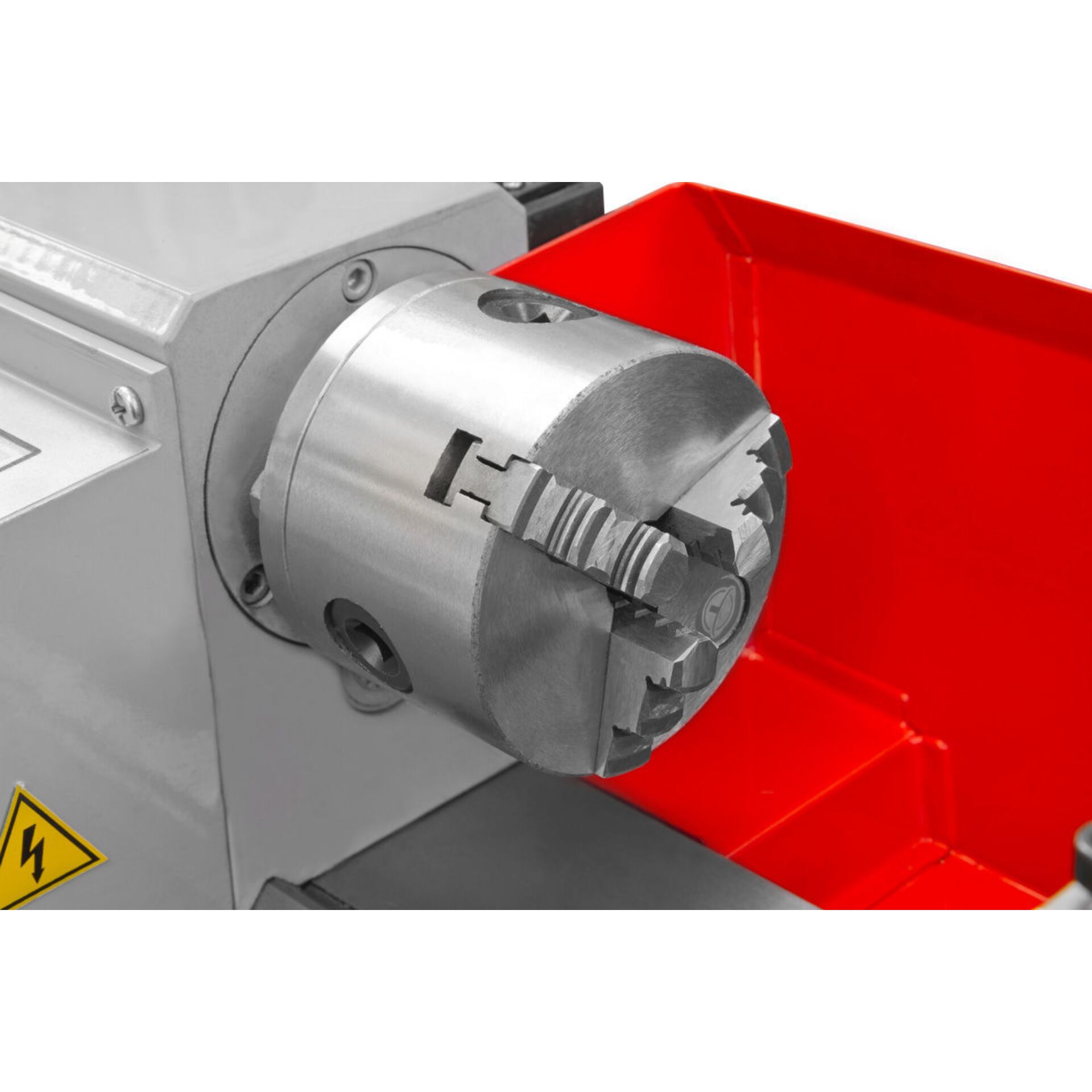

- Includes 80 mm diameter 3-jaw chuck
- Standard supplied metal change gears for a wide thread cutting range
| Motor power | 400 W |
|---|---|
| Voltage | 230 V / 50 Hz |
| Installation dimensions | 840 x 290 x 380 mm |
| Bed width | 85 mm |
| Tip width | 300 mm |
| Tip height | 90 mm |
| Max turning diameter bed | 180 mm |
| Max circumferential diameter of cross slides | 105 mm |
| Spindle speed | 50 - 2500 U/min |
| Spindle bore | 20 mm |
| Spindle cone | MK3/MT3 |
| Tailstock cone | MK2/MT2 |
| Travel distance longitudinal slide | 200 mm |
| Traverse travel | 70 mm |
| Travel distance upper slide | 70 mm |
| Pinole travel | 50 mm |
| Metric thread | 0.5-2.5mm |
| Max tool holder | 10 |
| Longitudinal feed | 0.009-0.04 mm/U |
| Height | 29,0 cm |
| Weight | 40,0 kg |
| Depth | 38,0 cm |
| Colour | Red / Silver |
| Width | 84,0 cm |
| Type | Metal Lathe |
| Power Supply | Mains |
What chuck is included with the lathe?
The lathe comes equipped with an 80 mm diameter 3-jaw chuck.
What is the maximum center distance?
The distance between centers (tip width) is 300 mm.
What metric thread pitch range is supported?
The machine supports metric thread pitches from 0.5 to 2.5 mm.
