Holzmann ALA1 400V Automatic Start-Up Device Compact Distribution Box

Price: 117.10 €

Products ID:	180248
Manufactured by:	Holzmann Maschinen
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	9120058371707

Delivery options to:

Choose country

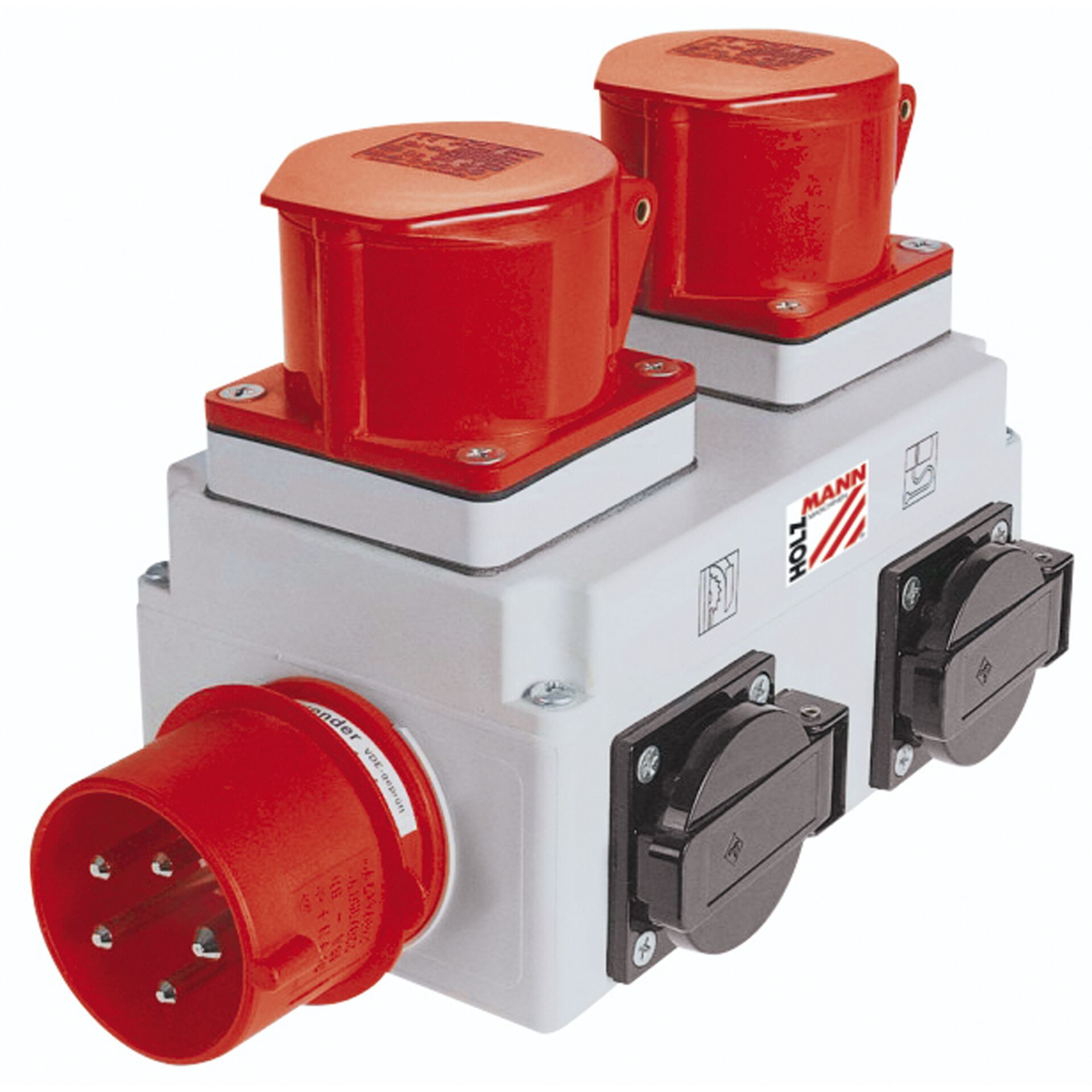

The Holzmann ALA1_400V is an automatic start-up device and compact distribution box designed for dust extraction systems in workshops.

Key Features

Connect up to 2 working machines to the master sockets
Automatic extraction start-up 2-4 seconds after turning on the machine
Continues running for 3-4 seconds after machine shutdown to clear residual dust
Includes phase inverter on mains input collar

Mains input	Plug collar CEE 3P+N+E / 16A / 6h; phase inverter
Outputs	1 socket CEE 3P+N+E / 16A / 6h; 1 socket Schuko 2P+E
Slave switching delay	230V/400V/16A, 230V/13.5A/3kW, 400V/9A/4kW
Delay time	2-4 s
Connected load	min. 100W, max. 400V / 16A / 11000W
Power supply	Mains
Weight	1.24 kg
Colour	Red / Black

How many machines can be connected to the master sockets?

Up to 2 working machines can be connected to the master sockets at the same time.

How does the delay function work?

The extraction system switches on automatically 2-4 seconds after the machine starts and stays active for 3-4 seconds after shutdown to clear residual dust.
