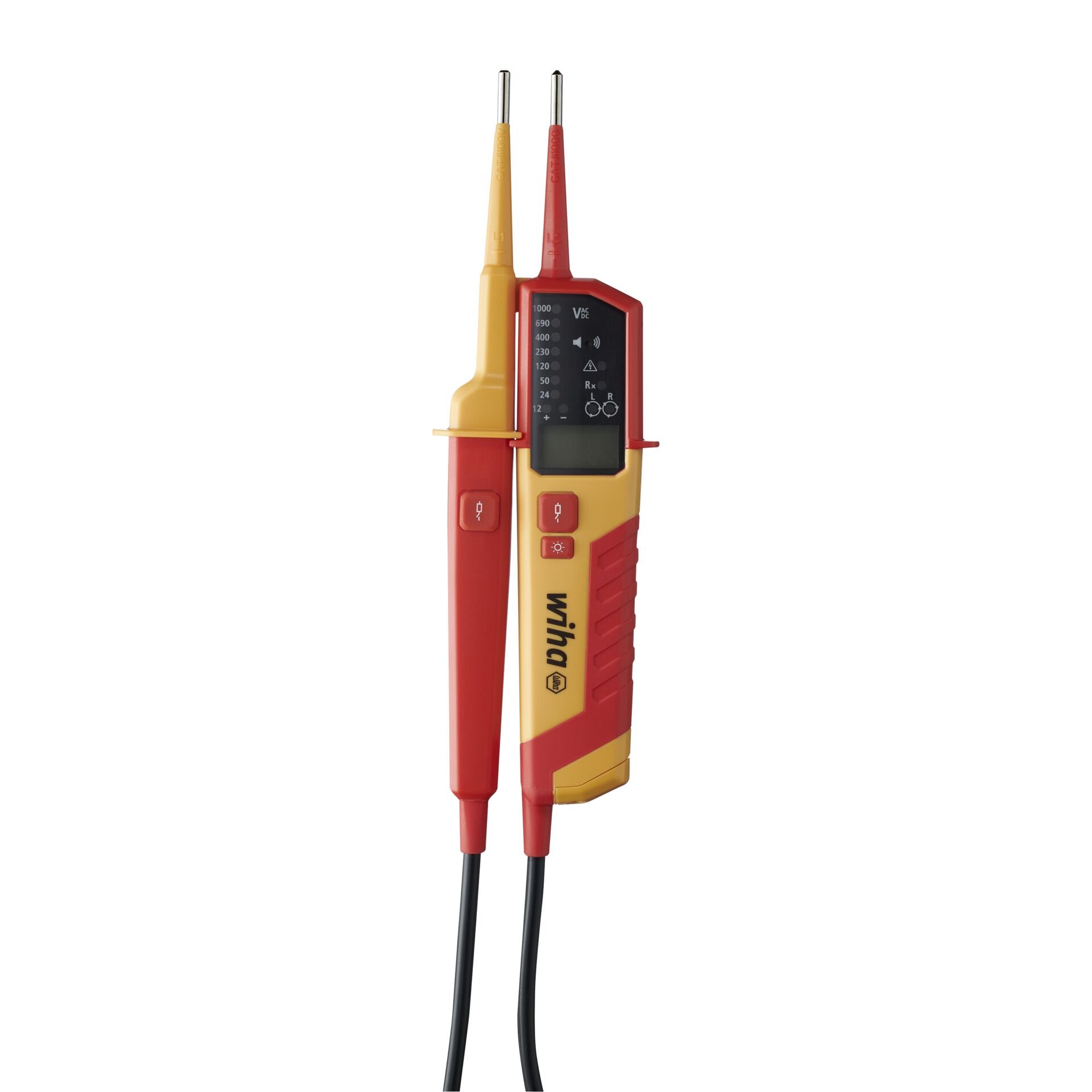

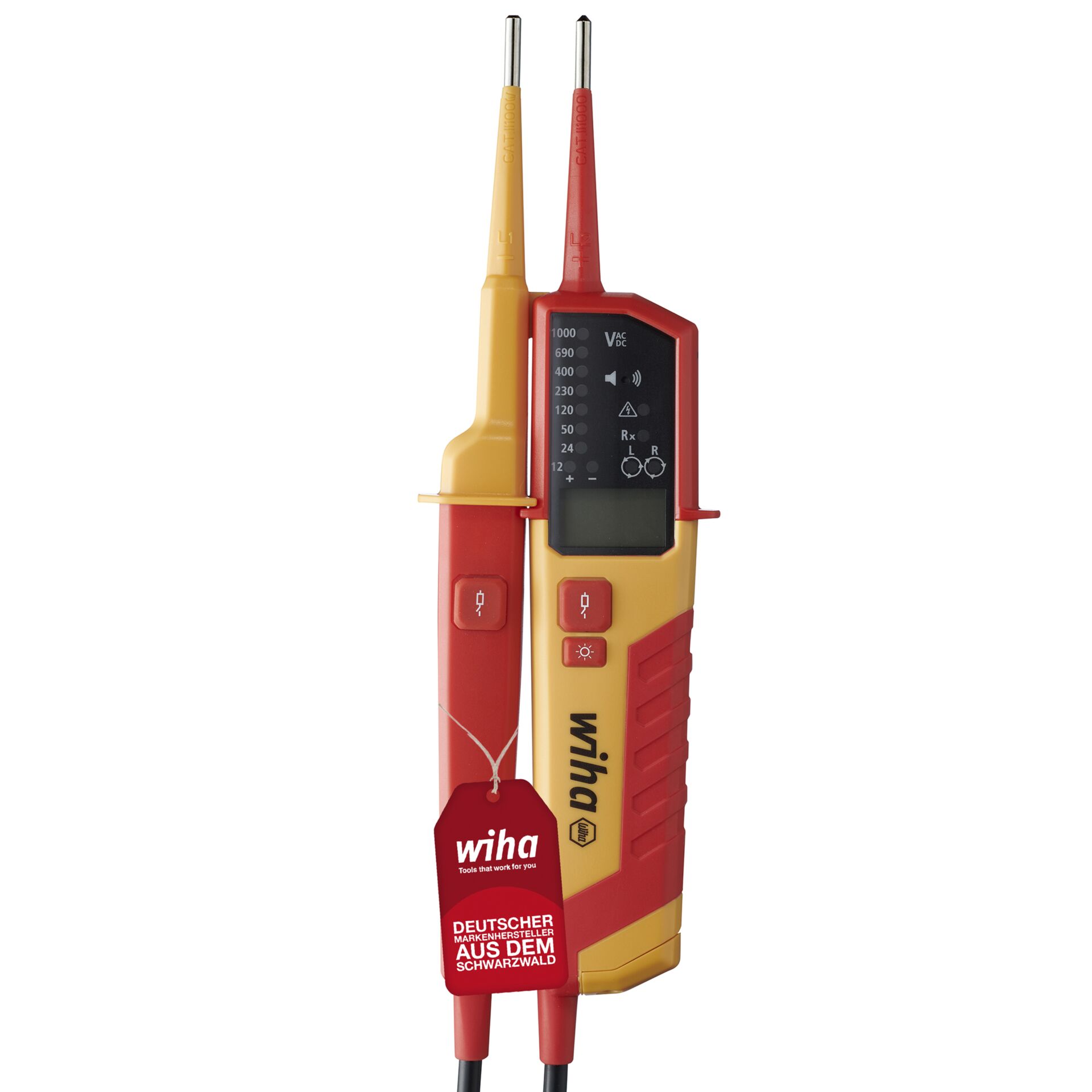

Wiha 45217 Voltage and Continuity Tester 0.5–1,000 V AC / 1,500 V DC, CAT IV
Price: 120.60 €
| Products ID: | 181172 |
|---|---|
| Manufactured by: | Wiha |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4010995452179 |
Delivery options to:
Choose country
The Wiha voltage and continuity tester is designed for quick, reliable voltage detection and electrical testing during everyday tasks. It provides a wide AC and DC measurement range alongside phase testing, continuity checks, resistance, and frequency measurement.
Key Features
- Wide voltage measuring range from 0.5 to 1,000 V AC and up to 1,500 V DC

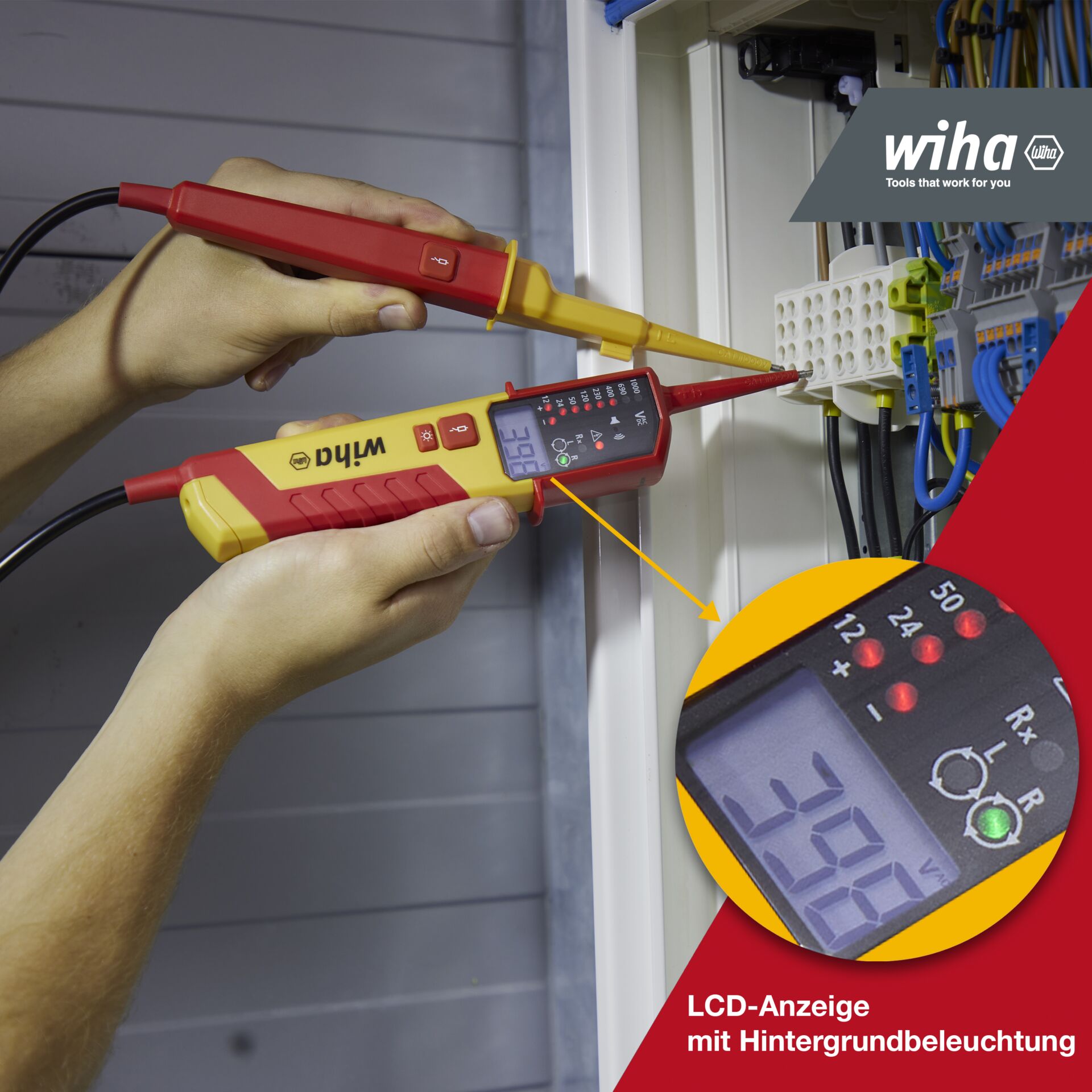

- Dual LED stage indicator and digital LCD screen
- Acoustic tone and LED visual continuity indication

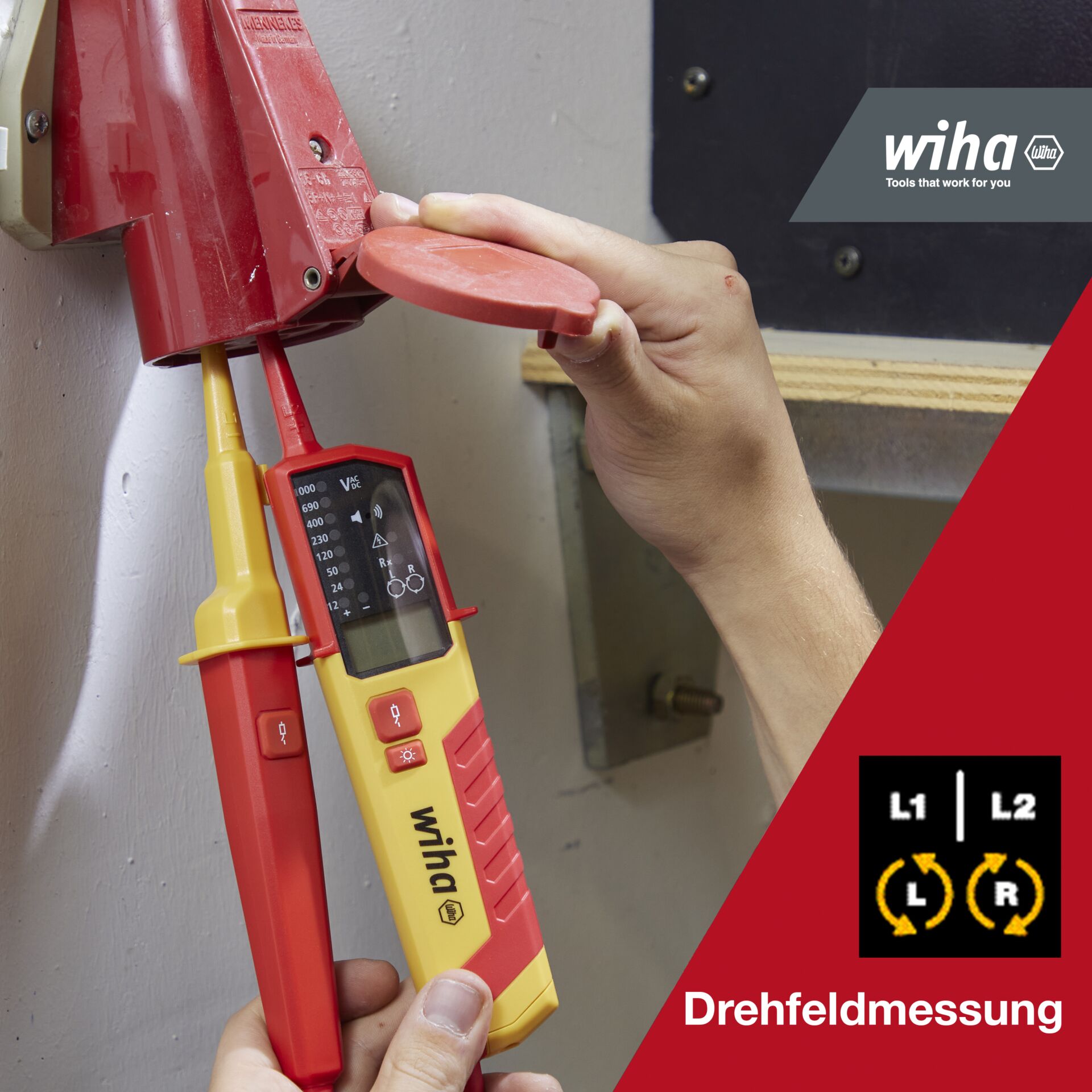

- Single-pole phase test and optical rotating field detection
- Built-in LED torch for illuminating dark work areas
- Robust IP64 dust and splash water protection rating
| Voltage AC | 0.5 - 1000 V |
|---|---|
| Voltage DC | 0.5 - 1500 V |
| Power supply | 2x AAA batteries (included) |
| Pollution degree | 2 |
| Display | LED and LCD |
| Continuity test | LED and acoustic tone (0 - 500 kΩ + 50%) |
| Rotary field test | 170 - 7000 V phase to phase AC 40-70 Hz |
| Single-pole phase test | 100 - 1000 V AC (40 - 70 Hz) |
| Operating temperature | -15°C to 50°C |
| Storage temperature | -20°C to 60°C |
| Protection class | IP64 |
| Safety category | CAT III 1000 V / CAT IV 600 V (IEC 61243-3:2014) |
| Dimensions | 282 x 110 x 50 mm |
| Weight | 350 g |
| Colour | Red / Yellow |
What type of batteries does the tester require?
The tester is powered by two AAA batteries, which are included in the package.
What is the measuring range of this voltage tester?
It measures AC voltage from 0.5 to 1,000 V and DC voltage from 0.5 to 1,500 V.
