Uni-T

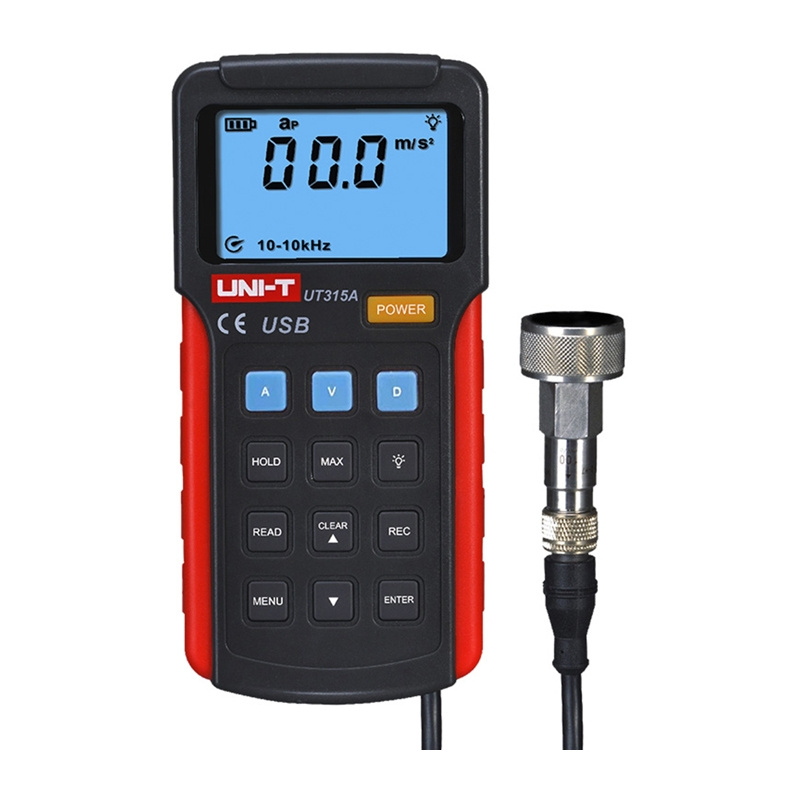

Vibration Tester Uni-T UT315A

313.40 € 319.70 € You save 6.30 € incl. VAT
In supplier warehouse · 10+ pcs.Delivery Time: 4–10 business days

Delivery options to:

Choose country

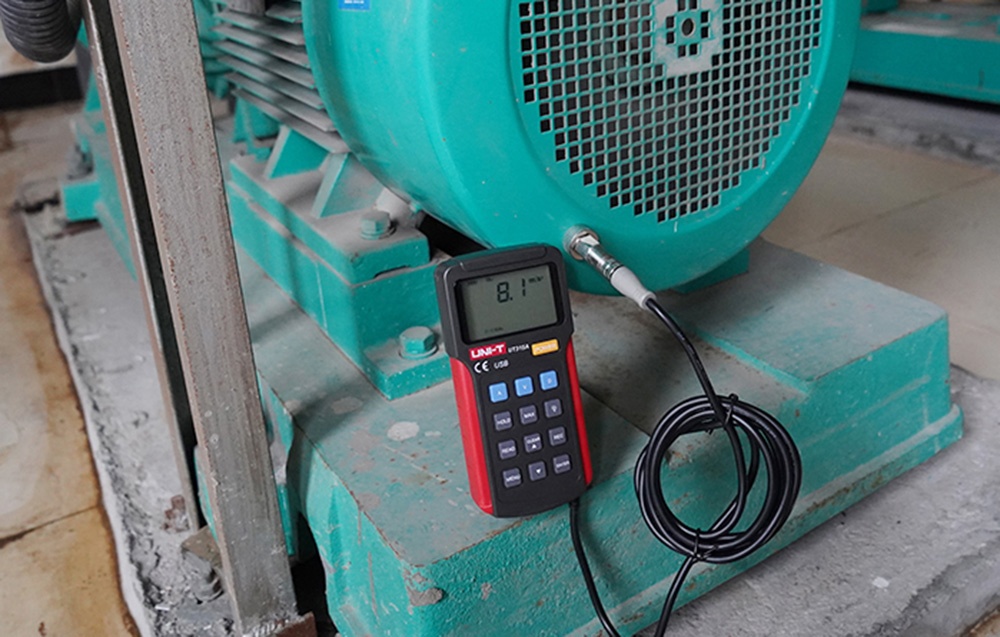

The Uni-T UT315A vibration tester is a compact instrument designed for fast diagnostics of rotating and reciprocating machinery by measuring acceleration, vibration velocity, and displacement.

Key Features

  • Measures acceleration up to 199.9 m/s², velocity up to 19.99 cm/s, and displacement up to 1.999 mm
  • Wide frequency range up to 10 kHz for acceleration measurements
  • Practical functions including Data Hold, auto power-off, and low-battery indication
  • Over 8 hours of continuous operation on a single 9V battery

ManufacturerUni-T
ModelUT315A
Acceleration measurement0 ~ 199.9 m/s²
Frequency range (acceleration)10 Hz ~ 10 kHz
Accuracy (acceleration)±(5% + 0.2 m/s²)
Velocity measurement0 ~ 19.99 cm/s (RMS)
Frequency range (velocity)10 Hz ~ 1 kHz
Accuracy (velocity)±(5% + 0.02 cm/s)
Displacement measurement1 ~ 1.999 mm (P-P)
Frequency range (displacement)10 Hz ~ 500 Hz
Accuracy (displacement)±(5% + 0.002 mm)
Display2000 counts
FunctionsData Hold, auto power off, low battery indicator
Power supply9V battery (6F22)
Weight395 g
Dimensions166 × 80 × 30 mm
CertificationsCE, UKCA
EAN6935750531518
What is included with the Uni-T UT315A?

The package includes the Uni-T UT315A vibration tester, a 9V battery (6F22), a storage case, a user manual, and the manufacturer's packaging.

What measurements can the Uni-T UT315A perform?

It measures vibration acceleration (0–199.9 m/s²), velocity (0–19.99 cm/s RMS), and displacement (1–1.999 mm P-P).
