Vibration Tester Uni-T UT312A, 2.4" TFT, USB-C

$Vibration Tester Uni-T UT312A, 2.4\$

Price: 294.00 €

Products ID:	176996
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750531228

Delivery options to:

Choose country

$Vibration Tester Uni-T UT312A, 2.4\" TFT, USB-C$

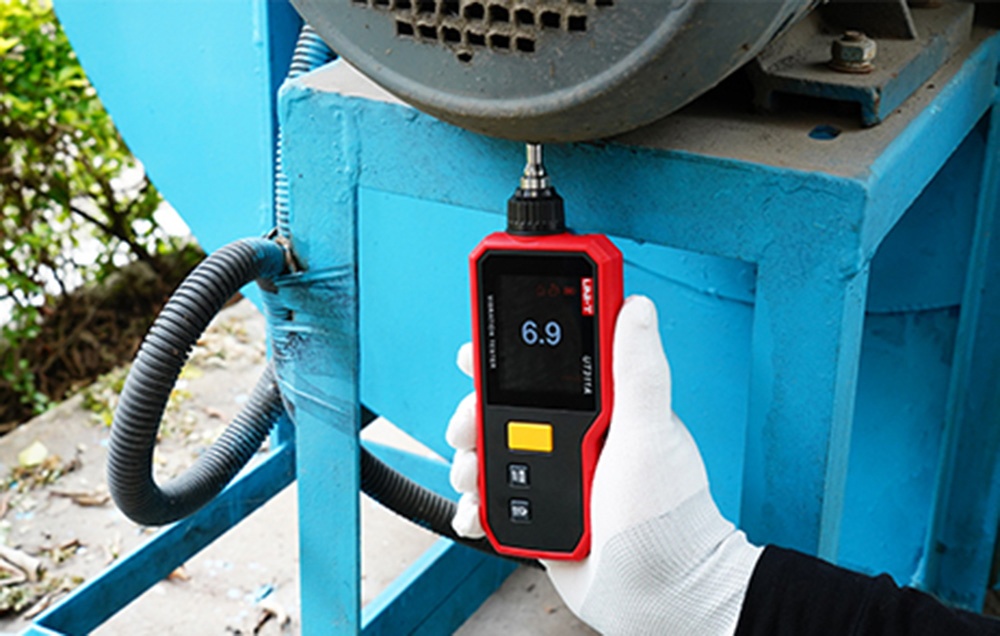

The Uni-T UT312A is a compact vibration tester designed for machinery condition monitoring, measuring vibration acceleration, velocity, and displacement with instant readings on a 2.4-inch TFT display.

Key Features

Three measurement parameters: acceleration (PEAK), velocity (RMS), and displacement (P-P)
Dual frequency ranges for acceleration: LO (10 Hz–1 kHz) and HI (1 kHz–15 kHz)
Auto-rotating 2.4" TFT LCD screen with backlight
Data Hold function and integrated flashlight
1350 mAh rechargeable Li-Ion battery with up to 12 hours of runtime via USB-C

Manufacturer	Uni-T
Model	UT312A
Acceleration measurement	0.1–199.9 m/s²
Velocity measurement	0.1–199.9 mm/s
Displacement measurement	0.001–1.999 mm
Acceleration frequency range	LO 10 Hz–1 kHz / HI 1 kHz–15 kHz
Velocity frequency range	10 Hz–1.5 kHz
Displacement frequency range	10 Hz–1 kHz
Resolution	0.1 m/s² / 0.1 mm/s / 0.001 mm
Acceleration and velocity accuracy	±(5%+2 digits)
Displacement accuracy	±(10%+2 digits)
Display	2.4" TFT LCD, auto-rotation, backlight
Functions	Data Hold, flashlight, battery indicator, auto-off after 5 min
Power supply	1350 mAh Li-Ion battery, 3.7 V
Charging	USB-C, DC 5 V
Operating time	approx. 12 h
Operating conditions	0°C–40°C, ≤80% RH (non-condensing)
Dimensions	168 × 28 × 64 mm
Weight	364 g (with short probe)

What is included with the Uni-T UT312A vibration tester?

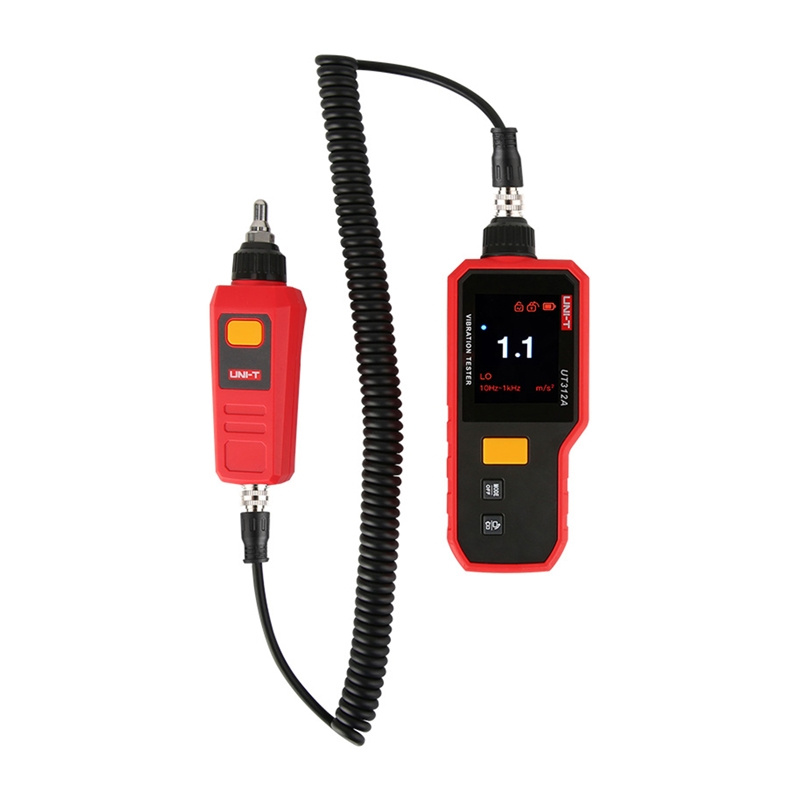

The package includes the Uni-T UT312A vibration tester, a long measurement probe, a short measurement probe, a magnetic U-type tip, a USB-C charging cable, a user manual, and safety instructions.

How long does the battery last and how is it recharged?

The 1350 mAh rechargeable Li-Ion battery provides approximately 12 hours of operation and charges via USB-C in about 3 hours.
