USB Tester Uni-T UT658A

Price: 14.10 €

Products ID:	176372
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750565872

Delivery options to:

Choose country

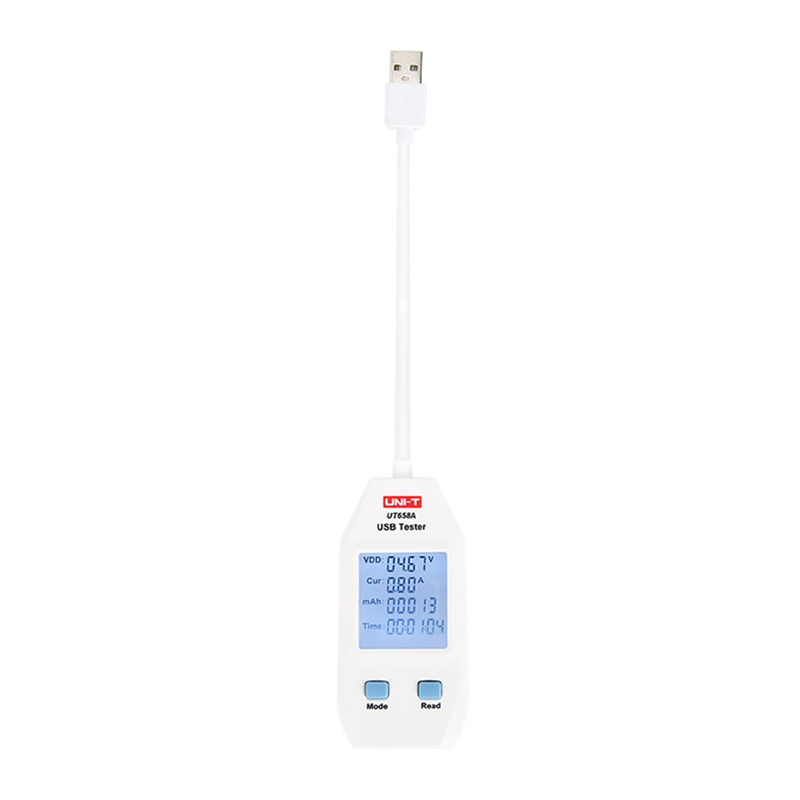

The Uni-T UT658A is a compact USB tester designed for monitoring the electrical parameters of chargers, power banks, cables, and power supply devices.

Key Features

Voltage measurement from 4 to 24 V DC and current from 0.05 to 3 A DC
Capacity measurement up to 99,999 mAh and energy tracking up to 1000 Wh
Support for USB Type-A ports, USB 2.0 / 3.0 standards, and QC 3.0 fast charging
Data logging memory for 10 sets and recording timer up to 99 h 59 min 59 s
Measurement of D+ and D- data line voltages and equivalent circuit resistance

Manufacturer	Uni-T
Model	UT658A
Product type	USB tester
Input and output ports	USB Type-A
Data transmission standards	USB 2.0 / 3.0
Voltage measurement range	4–24 V DC
Voltage resolution	0.01 V
Current measurement range	0.05–3 A DC
Current resolution	0.01 A
Capacity measurement range	0–99,999 mAh
Capacity resolution	1 mAh
Energy measurement range	0–1000 Wh
Circuit equivalent resistance range	1–480 Ω
Data line D+ voltage range	0–3.3 V
Data line D- voltage range	0–3.3 V
Data logging memory	10 data sets
Maximum recording time	99 h 59 min 59 s
Time resolution	1 s
Supported fast charging protocols	QC 3.0
Color	White
Dimensions	93 × 45 × 13 mm
Weight	50.6 g
Certifications	CE, UKCA
