USB Port Tester FNIRSI FNB48P BT with Bluetooth
Price: 40.80 €
| Products ID: | 176493 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5905156102217 |
Delivery options to:
Choose country

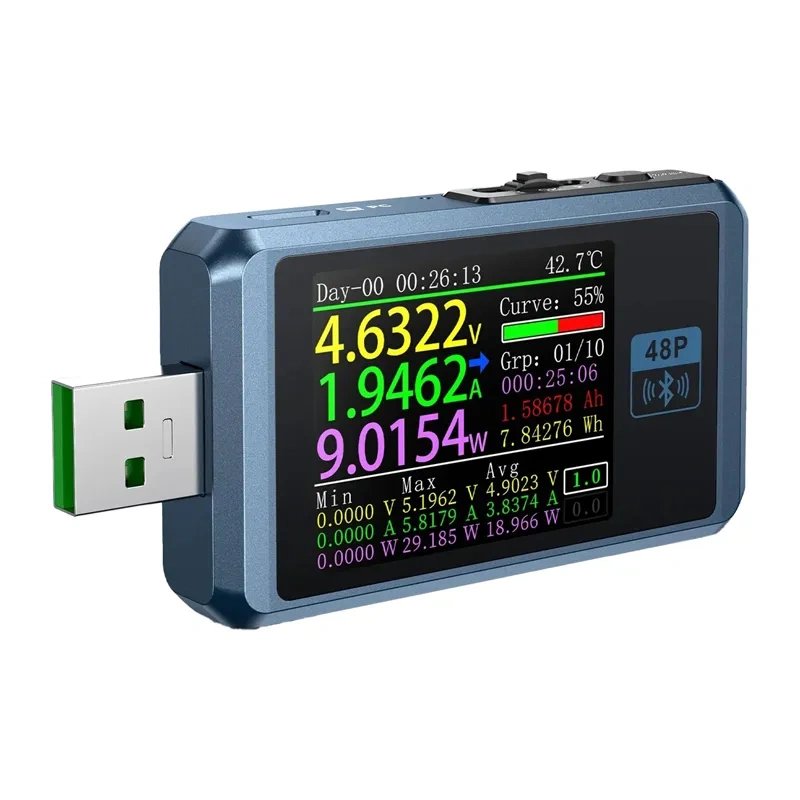

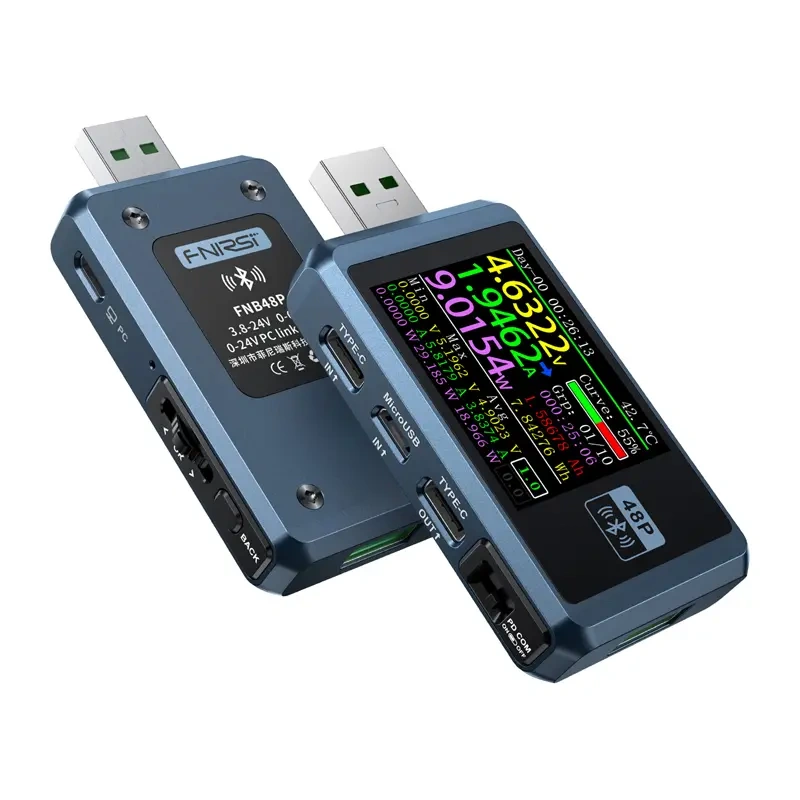

The FNIRSI FNB48P BT is a USB port tester equipped with a Bluetooth module, designed for precise charging analysis, voltage, current, and power monitoring.
Key Features
- Supports USB-A, USB-C, and Micro USB interfaces up to 6.5 A current
- Recognizes fast charging protocols including PD, QC2.0, QC3.0, VOOC, and AFC
- Features a 1.77-inch HD display with an automatic orientation gravity sensor
- Provides cable resistance measurement and PD e-marker chip reading
- Records up to 10 measurement data groups and connects to PC and mobile app
- Constructed with a CNC-milled metal enclosure
| Manufacturer | FNIRSI |
|---|---|
| Model | FNB48P BT |
| Monitored voltage | 4–24 V (resolution: 0.00001 V, accuracy: ±(0.2% + 2)) |
| Monitored current | 0–6.5 A (resolution: 0.00001 A, accuracy: ±(0.5% + 2)) |
| Monitored power | 0–156 W (resolution: 0.00001 W, accuracy: ±(0.5% + 2)) |
| Equivalent load resistance | 0–9999.9 Ω (resolution: 0.0001 Ω, accuracy: ±(0.5% + 2)) |
| D+ / D- line voltage | 0–3.3 V (resolution: 0.001 V, accuracy: ±(1.0% + 2)) |
| Device temperature accuracy | ±(1.2% + 3), resolution: 1 °C |
| Capacitance range | 0–9999.99 Ah |
| Energy consumed | 0–9999.99 Wh |
| Wire resistance | 0–9999.9 Ω |
| Operating time | Up to 99 days 23 h 59 min 59 s |
| Data recording time | Up to 999 h 59 min 59 s |
What connector types does this tester support?
It features USB-A in/out, USB-C in/out, Micro USB in, and a dedicated PD COM connector.
Can this device read E-Marker cable data?
Yes, it supports detection of PD e-marker cables by reading data from the CC line and information stored in the e-marker chip.
