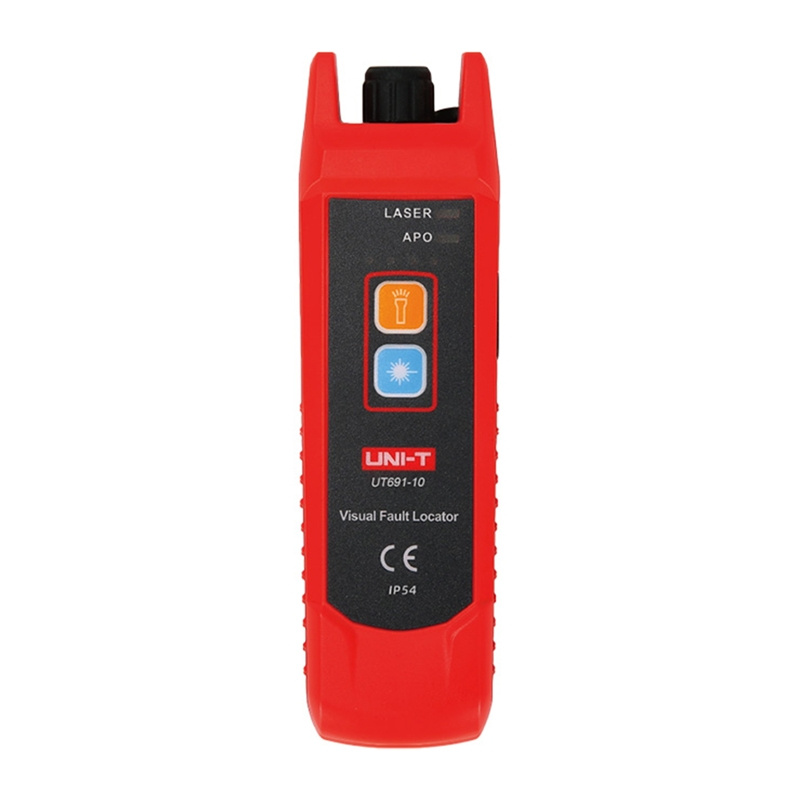

Uni-T UT691-10 Visual Fault Locator
Price: 33.50 €
| Products ID: | 176663 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750569115 |
Delivery options to:
Choose countryThe Uni-T UT691-10 is a visual fault locator designed for identifying optical fibers, detecting faults, and performing routine maintenance tasks.
Key Features
- Red laser with a 650 ±10 nm wavelength and output power ≥10 mW
- Testing range of 8 to 10 km for optical fiber installations
- Continuous and pulsed laser operating modes

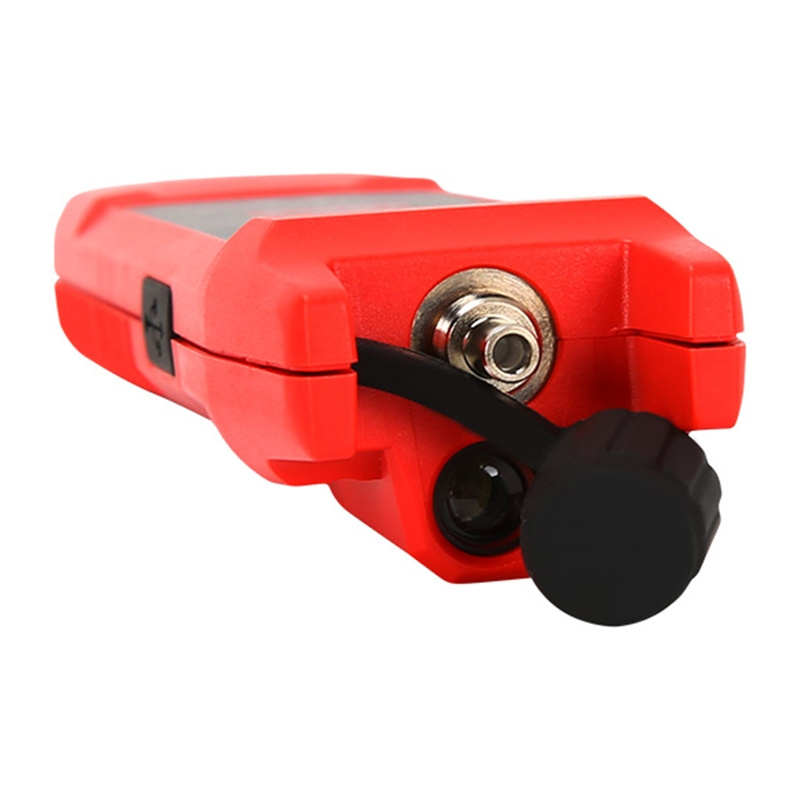

- Universal 2.5 mm FC connector
- 3.7 V 1050 mAh Li-Po battery providing over 7 hours of operation
- Built-in LED flashlight, battery level indicator, and 15-minute auto shut-off
- IP54-rated housing with 1 m drop resistance
| Manufacturer | Uni-T |
|---|---|
| Model | UT691-10 |
| Product type | Visual fault locator |
| Laser output power | ≥10 mW |
| Testing range | 8–10 km |
| Laser wavelength | 650 ± 10 nm |
| Connector type | Universal 2.5 mm (FC) |
| Laser operating modes | Continuous, pulsed |
| Power supply | 3.7 V / 1050 mAh lithium-polymer rechargeable battery |
| Operating time | >7 h |
| Protection rating | IP54 |
| Drop resistance | 1 m |
| Dimensions | 130 × 38 × 27 mm |
| Weight | 62 g |
| Certifications | CE, UKCA |
What is included in the package?
The package includes the Uni-T UT691-10 visual fault locator and a user manual.
What is the testing range of the device?
With an output power of at least 10 mW, the locator is designed for optical fibers ranging from 8 to 10 km in length.
How long does the battery last on a single charge?
The built-in 1050 mAh lithium-polymer battery provides more than 7 hours of operation.
