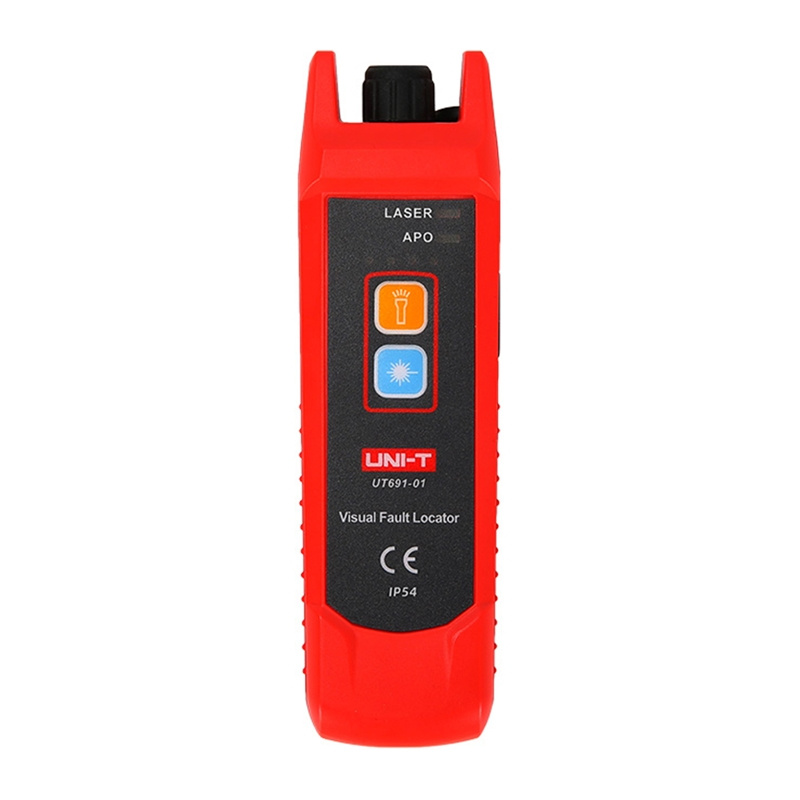

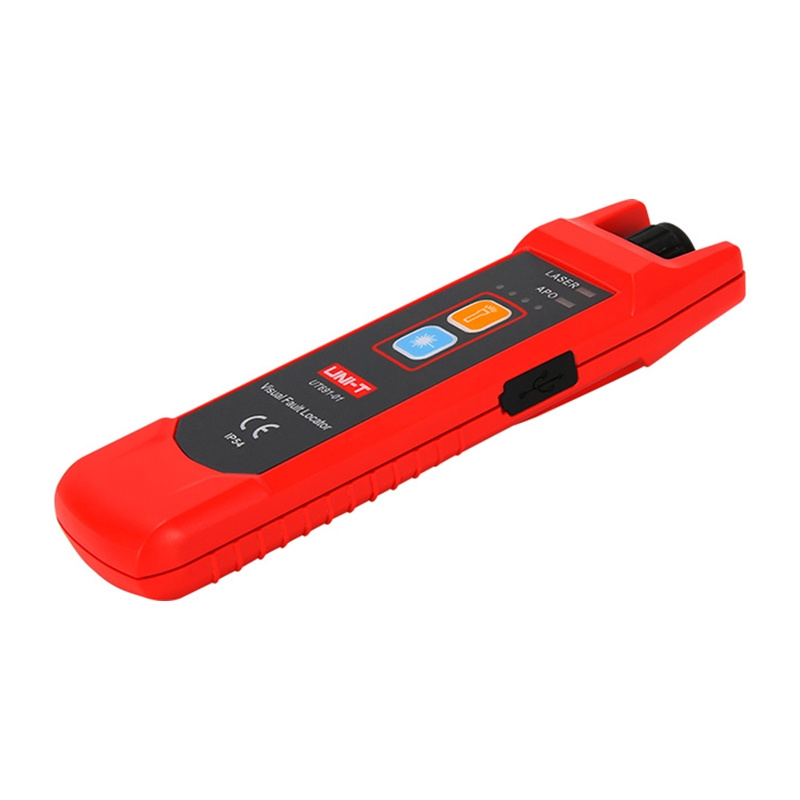

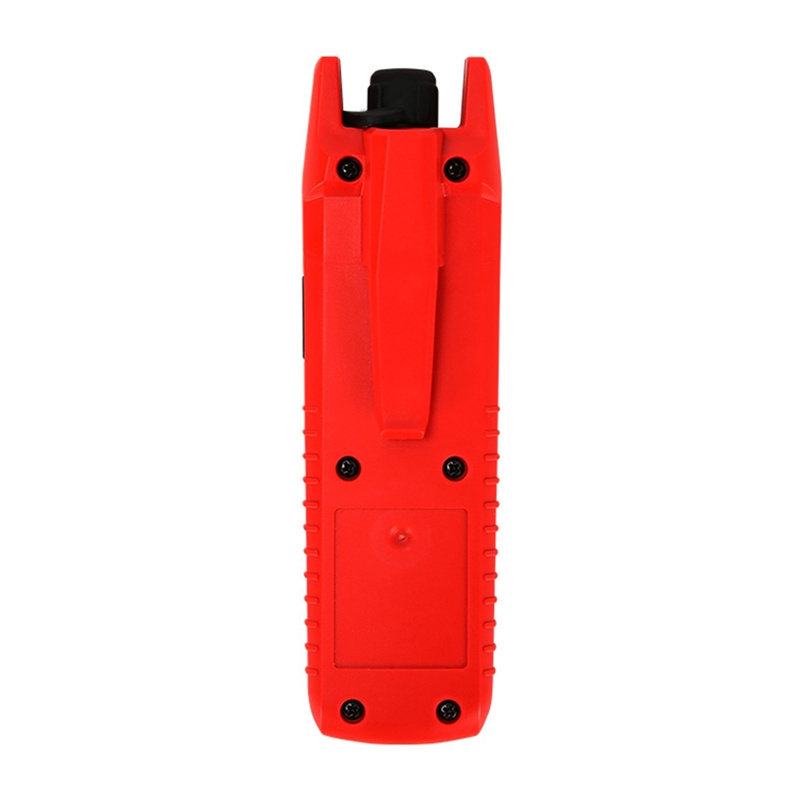

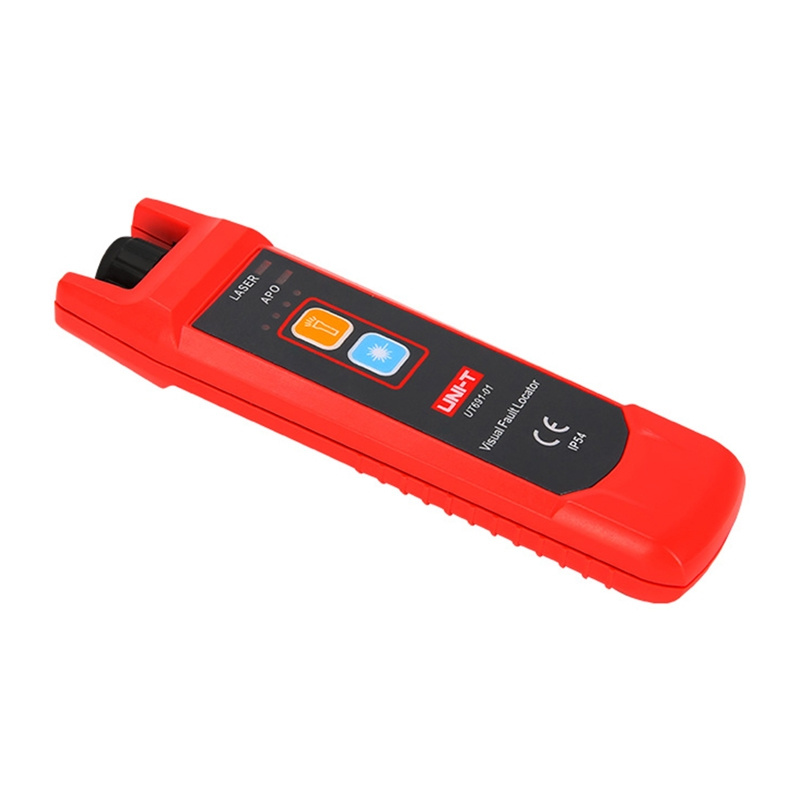

Uni-T UT691-01 Visual Fault Locator
Price: 27.40 €
| Products ID: | 176112 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750569108 |
Delivery options to:
Choose countryThe Uni-T UT691-01 is a visual fault locator designed for detecting faults in optical fibers, identifying fibers, and performing maintenance work on optical installations.
Key Features
- Red laser with 650 ±10 nm wavelength in continuous and pulsed modes
- Output power of ≥1 mW for optical fiber sections from 2 to 3 km

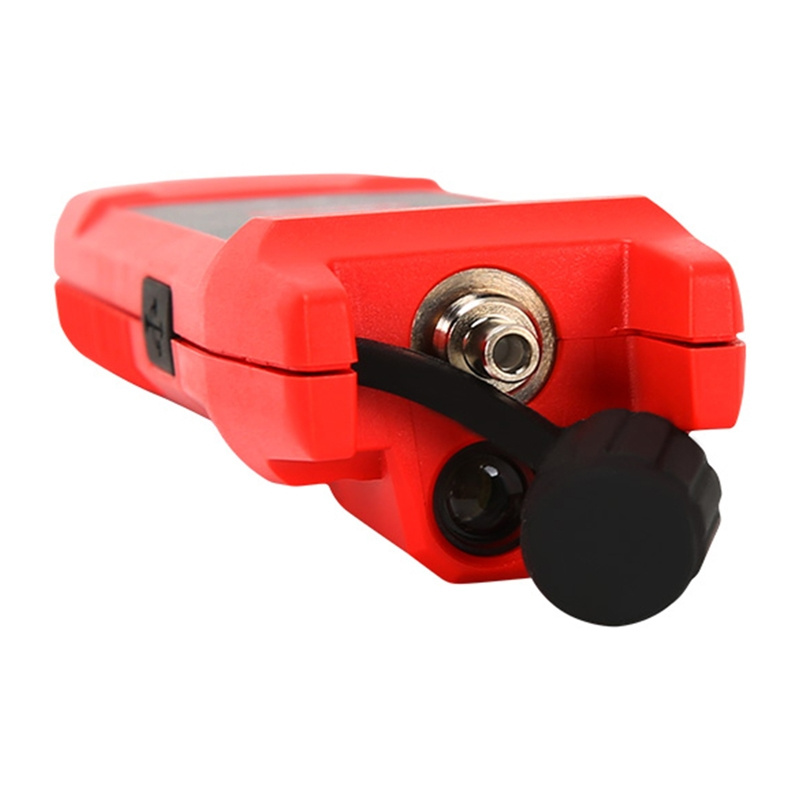

- Universal 2.5 mm FC connector
- 3.7 V 1050 mAh lithium-polymer battery offering over 12 hours of operating time
- Built-in LED flashlight and automatic shut-off after 15 minutes
- IP54-rated housing with 1-meter drop resistance
| Manufacturer | Uni-T |
|---|---|
| Model | UT691-01 |
| Laser wavelength | 650 ± 10 nm |
| Laser output power | ≥1 mW |
| Testing range | 2–3 km |
| Connector type | Universal 2.5 mm (FC) |
| Laser operating modes | Continuous, pulsed |
| Power supply | 3.7 V / 1050 mAh lithium-polymer rechargeable battery |
| Operating time | >12 h |
| Battery status indicator | 4 blue LEDs |
| Protection rating | IP54 |
| Drop resistance | 1 m |
| Dimensions | 130 × 38 × 27 mm |
| Weight | 62 g |
What is the testing range of the Uni-T UT691-01?
It operates on fiber optic sections ranging from 2 to 3 km in length.
What connector does this visual fault locator use?
It features a universal 2.5 mm FC connector.
What is included in the package?
The package includes the visual fault locator and a user manual.
