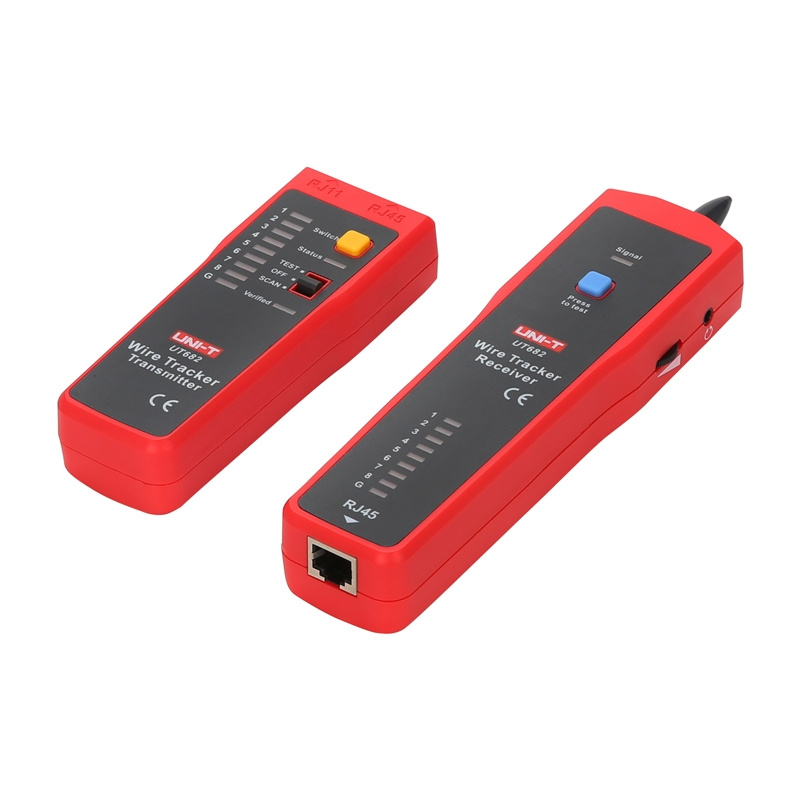

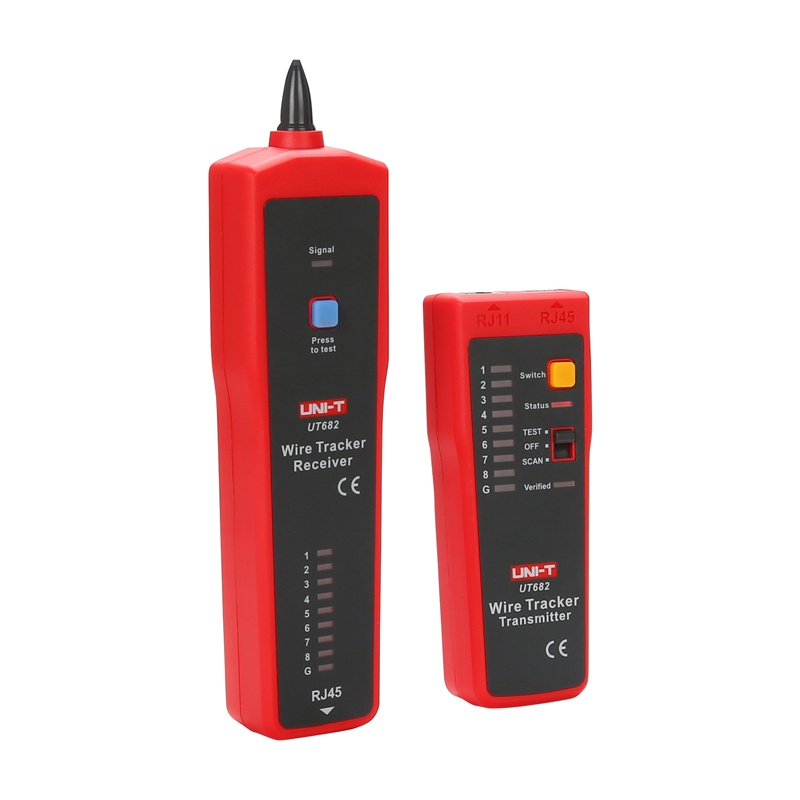

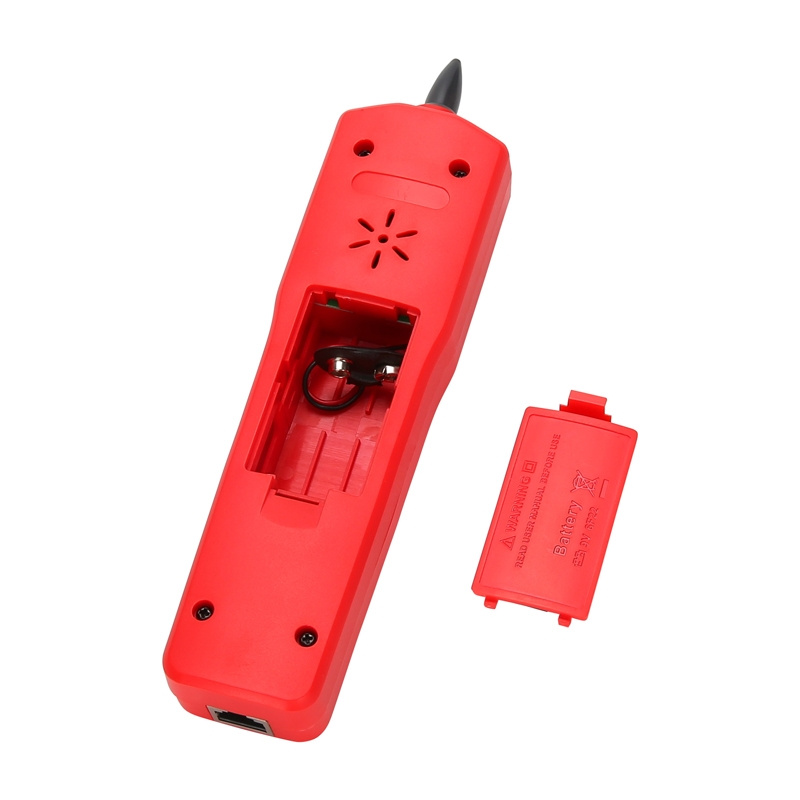

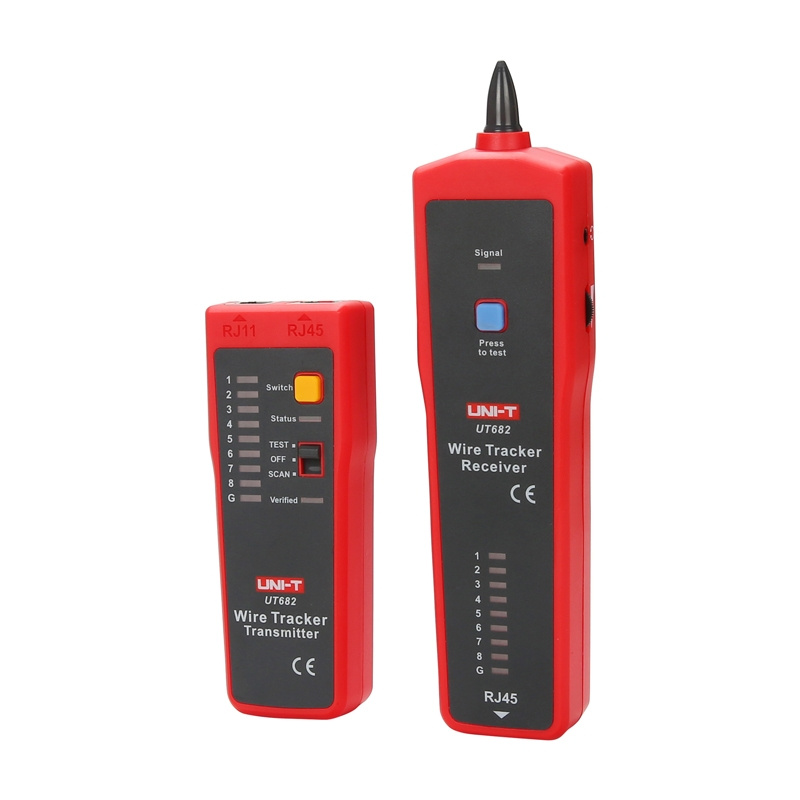

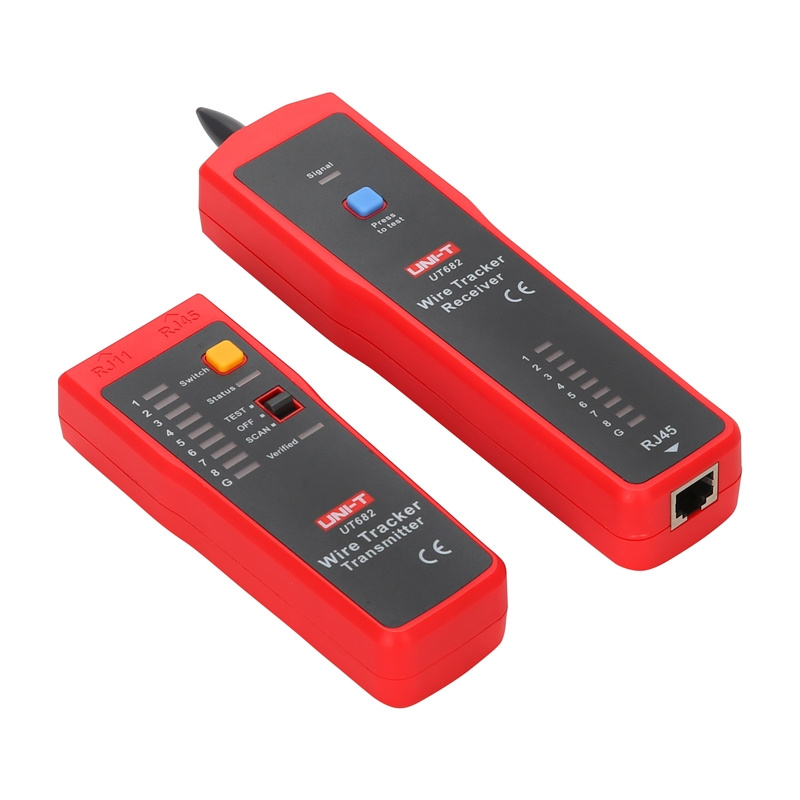

UNI-T UT682 Wire Tracker and Cable Locator

UNI-T UT682 Wire Tracker and Cable Locator — image 3

UNI-T UT682 Wire Tracker and Cable Locator — image 4

UNI-T UT682 Wire Tracker and Cable Locator — image 5

Price: 38.60 €

Products ID:	175194
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750568255

Delivery options to:

Choose country

UNI-T UT682 Wire Tracker and Cable Locator

The UNI-T UT682 is a multi-functional wire locator and cable tester designed for diagnosing LAN, telephone, coaxial, and electrical lines.

Key Features

Cable tracking up to 3000 m for telephone lines and up to 320 m for unshielded cables
Wire sequence verification for LAN cables using 9 independent LEDs
Detection of short circuits, breaks, and DC voltage polarity ±(5V~52V)
Tracking capability in active switchboards (≥100 m)
Light indication for signal strength, volume control, and integrated headphone socket
Complete with transmitter, receiver, two 9V batteries, test leads, and carrying case

Manufacturer	Uni-T
Model	UT682
Supported cables	LAN, telephone lines, coaxial cables, electrical cables
Cable tracking range	Telephone lines up to 3000 m; unshielded/shielded up to 320 m
Switchboard tracking	Yes (≥100 m)
Polarity indication	±(5V~52V)
Wire sequence measurement	9 independent LEDs
Headphone socket	Yes
Volume control	Yes
Power supply	9V battery (for transmitter and receiver)
Transmitter weight	125 g
Receiver weight	153 g
Certifications	CE, UKCA

Which cable types are compatible with the UNI-T UT682?

The device supports LAN cables, telephone lines, coaxial cables, and standard electrical cables.

What is the maximum cable tracking distance?

It can track telephone lines up to 3,000 meters and unshielded or shielded cables up to 320 meters.

What items are included in the package?

The package contains the UNI-T UT682 transmitter and receiver, 2 × 9V batteries, an RJ11 cable, an RJ11 cable with crocodile clips, an RJ45 cable, a carrying case, and a user manual.
