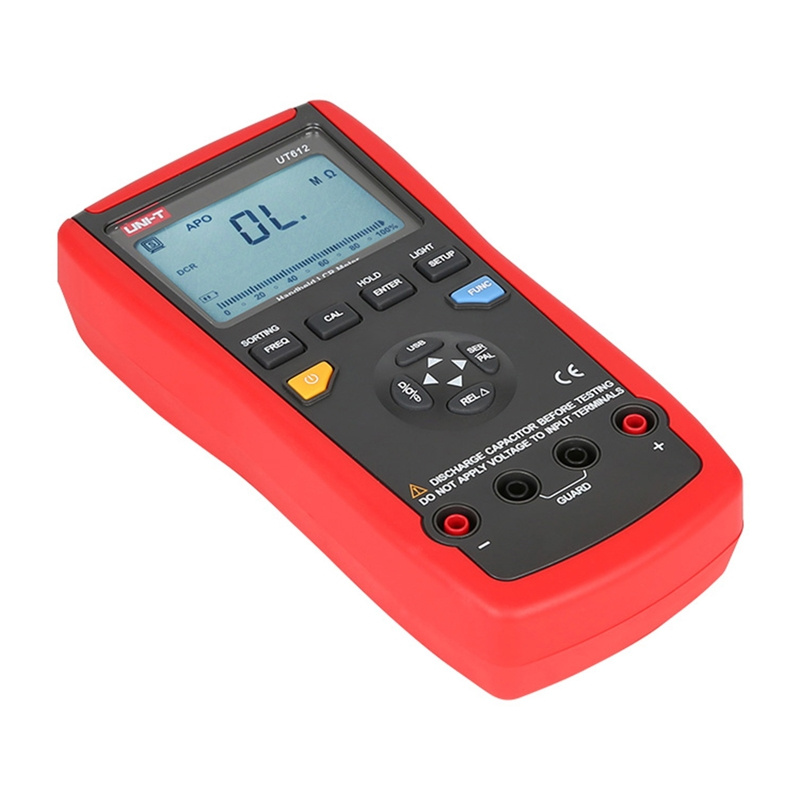

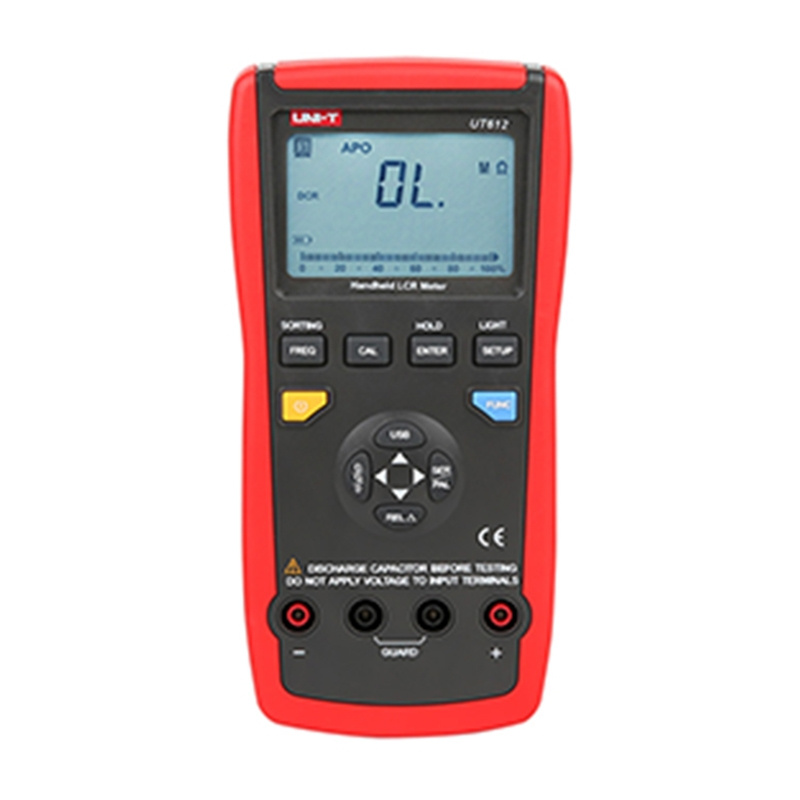

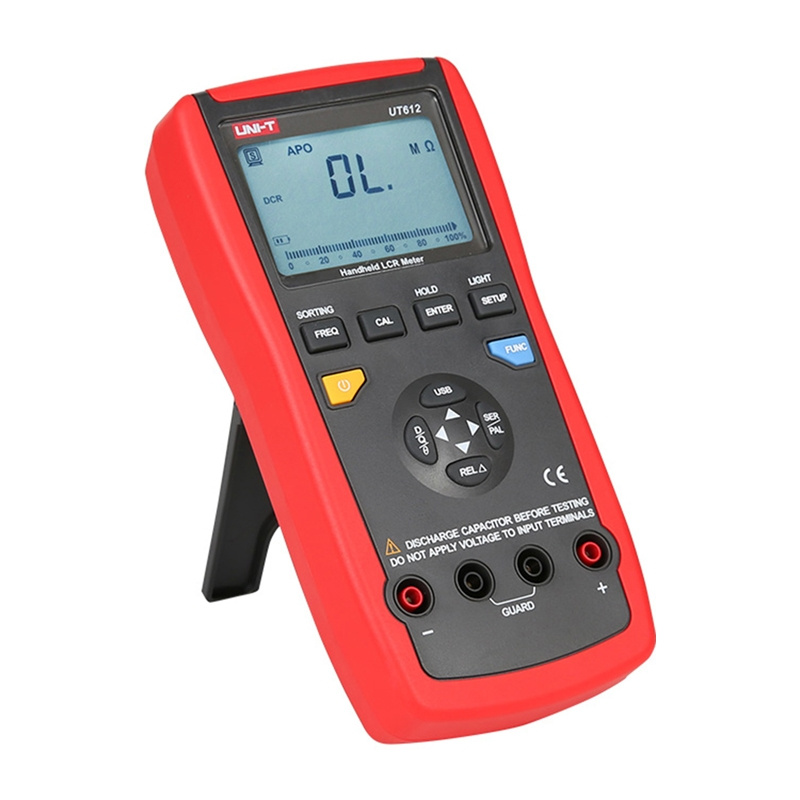

Uni-T UT612 LCR Meter
Price: 143.80 €
| Products ID: | 176399 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750561201 |
Delivery options to:
Choose countryThe Uni-T UT612 is a measurement instrument designed for testing inductance, capacitance, and resistance across a wide range, featuring automatic component recognition and USB data logging.
Key Features
- Measures L, C, R, DCR, Q, D, θ, and ESR parameters
- Five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz
- Series and parallel measurement modes
- Tolerance comparison and deviation measurement functions
- USB interface capable of storing up to 60,000 results
- Powered by a 9V battery or via USB connection
| Manufacturer | Uni-T |
|---|---|
| Model | UT612 |
| Inductance | 20 µH ~ 2000 H (±0.5% + 5) |
| Capacitance | 200 pF ~ 20 mF (±0.5% + 5) |
| Resistance | 20 Ω ~ 200 MΩ (±0.3% + 5) |
| Supported parameters | L, C, R, DCR, Q, D, θ, ESR |
| Test frequencies | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz |
| Test voltage | 0.6 Vrms |
| Display | LCD (40 × 63 mm) |
| Counts | 20,000 |
| D/Q counts | 2,000 |
| D/Q resolution | 0.001 |
| Power supply | 9V battery (6F22) or USB power |
| Dimensions | 96 × 193 × 47 mm |
| Weight | 374 g |
What is included with the Uni-T UT612?
The package includes a battery, SMD probe, USB cable, multifunction socket, and user manual.
What test frequencies are available?
The device operates at five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.
How is the meter powered?
It can be powered using a standard 9V battery (6F22) or directly via USB power.
