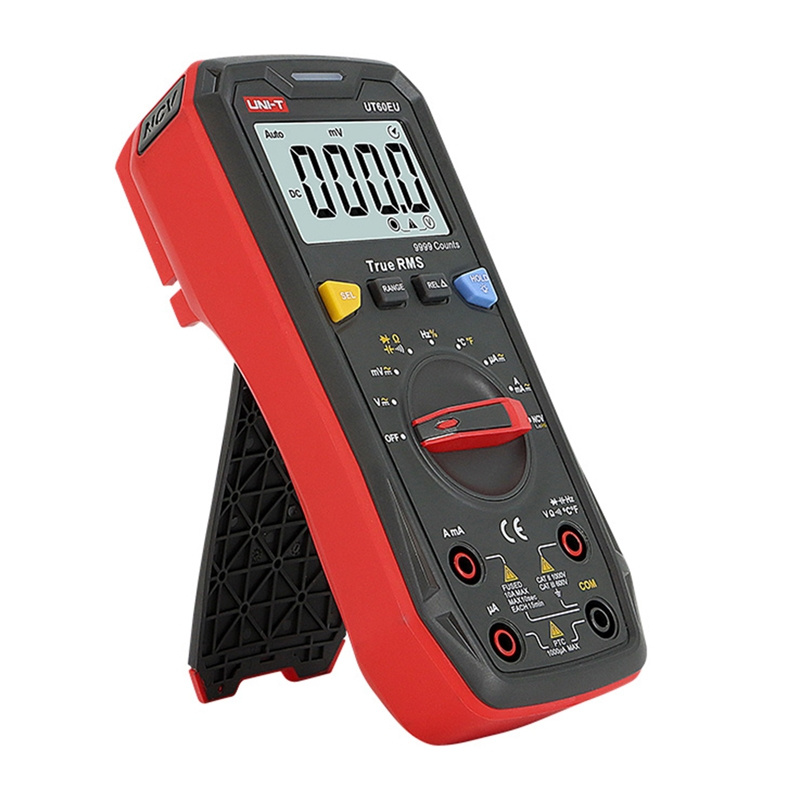

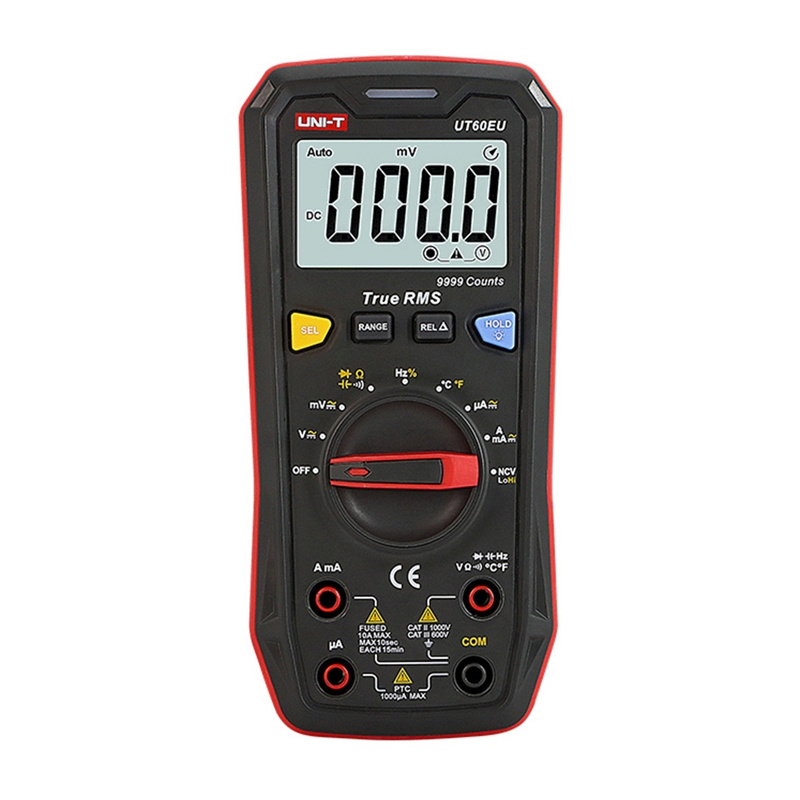

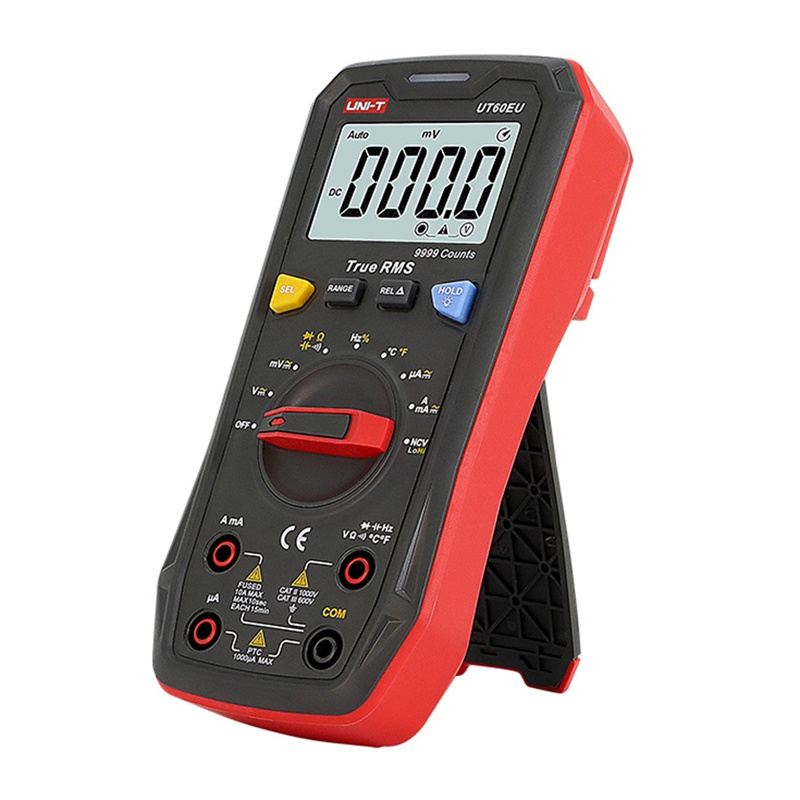

UNI-T UT60EU Digital Multimeter
Price: 38.80 €
| Products ID: | 175192 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750560242 |
Delivery options to:
Choose countryThe UNI-T UT60EU is a digital multimeter with a 9999-count resolution and True RMS capability, designed for accurate electrical measurements in workshops and installations.
Key Features
- AC and DC voltage measurement up to 1000 V and current measurement up to 10 A
- Resistance measurement up to 99.99 MΩ and capacitance up to 99.99 mF
- Frequency measurement up to 9.999 MHz and temperature testing from -40°C to 1000°C
- Non-contact voltage detection (NCV), diode testing, and continuity check
- Backlit display, Data Hold function, and automatic shutdown after 15 minutes
- Meets CAT II 1000V and CAT III 600V safety standards
| Manufacturer | UNI-T |
|---|---|
| Model | UT60EU |
| DC voltage measurement range | 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.5%+3) |
| AC voltage measurement range | 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.8%+3) |
| DC current measurement range | 999.9uA/999.9mA/9.999A/10A ±(0.8%+3) |
| AC current measurement range | 999.9uA/999.9mA/9.999A/10A ±(1.0%+3) |
| Resistance measurement range | 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ ±(0.8%+2) |
| Capacitance measurement range | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/9.99mF ±(4.0%+5) |
| Frequency measurement range | 99.99Hz～9.999MHz ±(0.1%+5) |
| Duty cycle | 0.1～99.9% ±(3%+5) |
| Temperature measurement range | –40℃～1000℃/–40°F～1832°F ±4℃/±5℉ |
| Power supply | 3x 1.5V AAA |
| Weight | 290 g |
| Dimensions | 169 x 81 x 46 mm |
What type of batteries does the UNI-T UT60EU use?
The multimeter is powered by three 1.5V AAA batteries.
Does this multimeter feature non-contact voltage detection?
Yes, it includes an NCV function with audible and visual indicators.
What is the temperature measurement range of this device?
It measures temperatures from -40°C to 1000°C (-40°F to 1832°F).
