Uni-T UT582+ RCD Tester
Price: 110.20 €
| Products ID: | 176349 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750558218 |
Delivery options to:

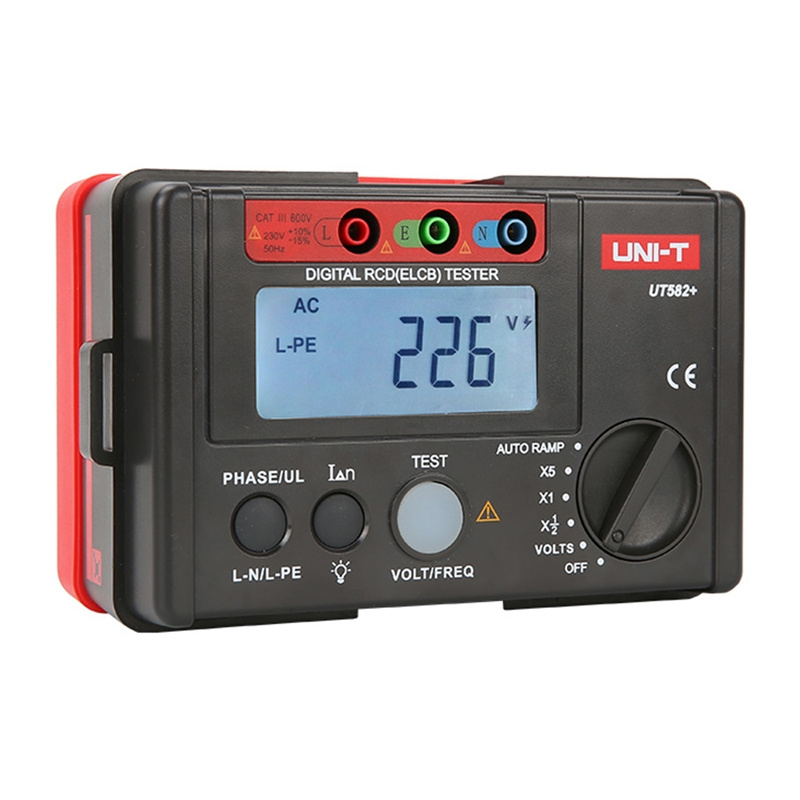

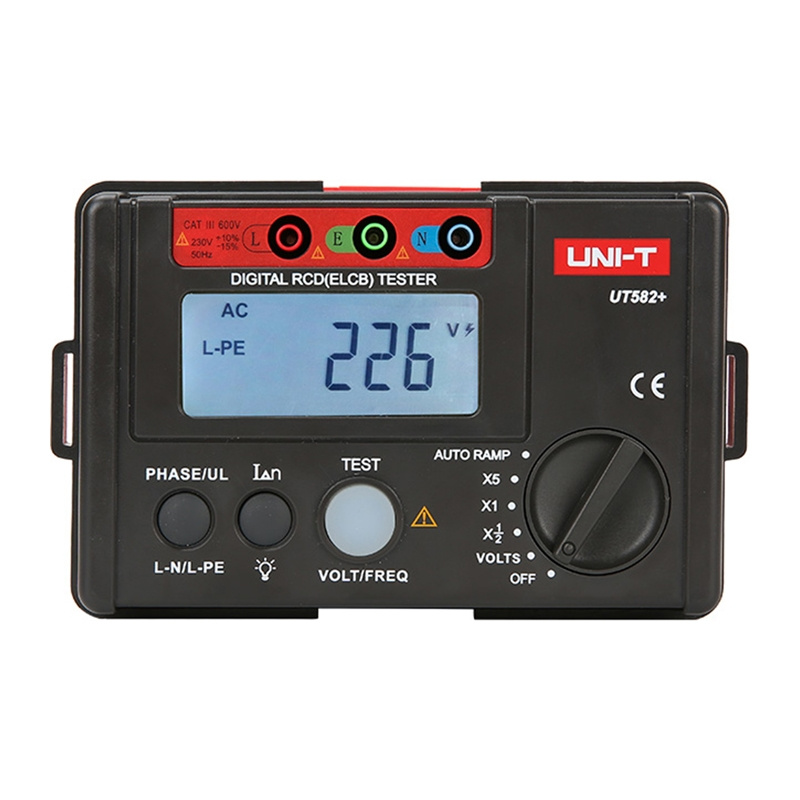

Choose countryThe Uni-T UT582+ is a dedicated tester designed to verify the operation of residual current devices (RCDs) in single-phase electrical installations during inspections and maintenance.
Key Features
- Measurement of RCD trip time and trip current across multiple rated values
- AUTO RAMP function for automatic trip threshold verification
- Voltage measurement capability from 30V to 600V
- Backlit display with Data Hold function
- Audible indicators, connection checking, and auto power off
| Manufacturer | Uni-T |
|---|---|
| Model | UT582+ |
| Product type | RCD tester |
| Operating voltage range | 195–253 V |
| Voltage measurement range | 30–600 V ±(3% + 3) |
| Frequency range | 45–65 Hz |
| Test currents | 10 mA / 20 mA / 30 mA / 100 mA / 300 mA / 500 mA |
| Response time range | 40–2000 ms |
| Response time accuracy | ±(2% + 2) |
| Maximum display reading | 999 |
| Power supply | 6 × 1.5 V AA batteries (LR6) |
| Display dimensions | 71 × 34 mm |
| Dimensions | 160 × 100 × 71 mm |
| Weight | 400 g |
| Certifications | CE, UKCA |
What is included in the package with the Uni-T UT582+?
The package includes the RCD tester, 1 pair of test leads, 6 AA batteries (LR6), a carrying case, a wrist strap, and a user manual.
Which test current settings are available on the UT582+?
The device provides test currents of 10 mA, 20 mA, 30 mA, 100 mA, 300 mA, and 500 mA.
