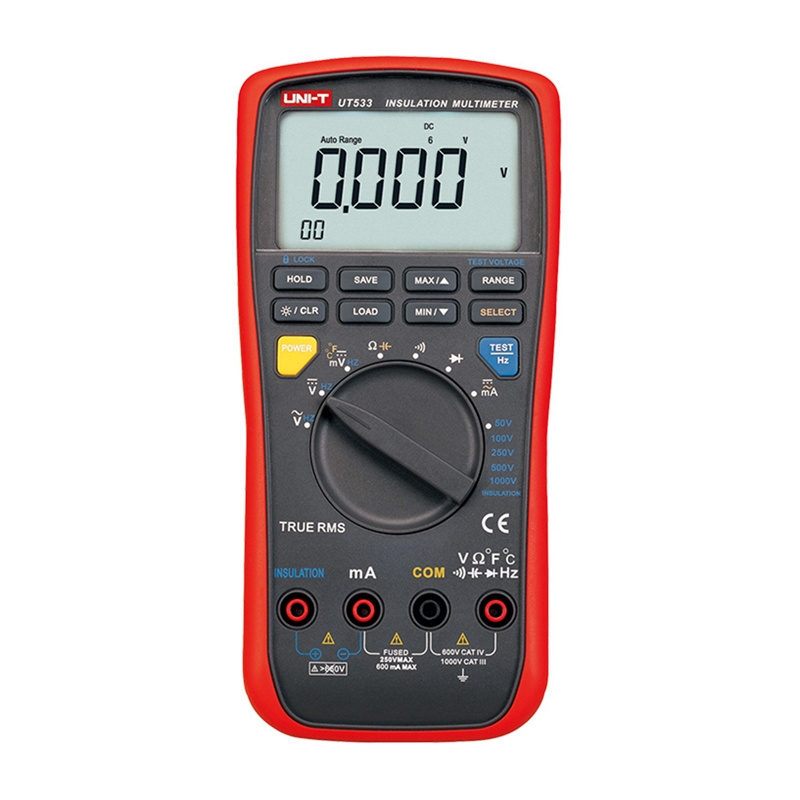

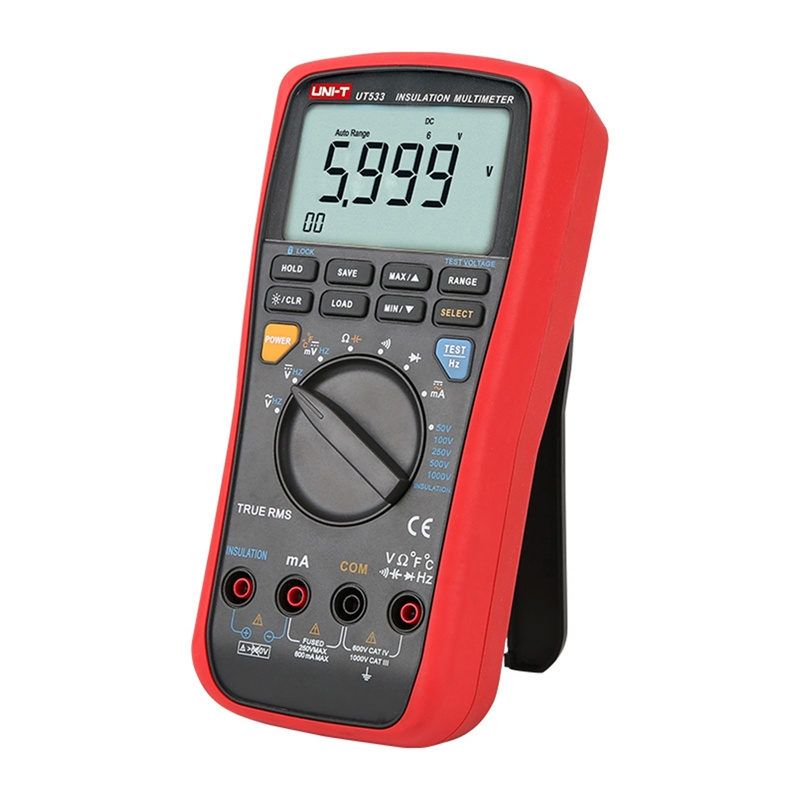

Uni-T UT533 Insulation Resistance Tester and Multimeter
Price: 218.60 €
| Products ID: | 176327 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750553305 |
Delivery options to:
Choose countryThe Uni-T UT533 is a 2-in-1 measuring device that combines the functions of a digital RMS multimeter with an insulation resistance tester supporting test voltages up to 1000V. It enables accurate measurement of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature, as well as condition testing of electrical insulation.
Key Features
- Insulation resistance testing up to 2GΩ with test voltages from 50V to 1000V
- RMS measurement capability for accurate readings on distorted signals
- Backlit 5999-count display with dual parameter readout
- Practical functions including HOLD, MAX/MIN, and auto power-off
- Meets CAT III 1000V and CAT IV 600V safety categories
| Manufacturer | Uni-T |
|---|---|
| Model | UT533 |
| Insulation resistance measurement | 0.1MΩ – 2GΩ (±5%+5) |
| Test voltage | 50V – 1000V |
| AC voltage | 6V – 1000V (±2%+3) |
| DC voltage | 6mV – 1000V (±0.3%+4) |
| AC current | 60mA – 600mA (±1.5%+2) |
| DC current | 60mA – 600mA (±1.0%+2) |
| Resistance | 600Ω – 40MΩ (±1.5%+3) |
| Capacitance | 10nF – 100µF (±3%+5) |
| Power supply | 6 × 1.5V LR6 batteries |
| Dimensions | 96.7 × 202.8 × 46 mm |
| Weight | 505 g |
| Safety standards | CAT III 1000V, CAT IV 600V |
What is included in the package?
The package includes test leads, batteries, alligator clips, and a Type K temperature probe.
What is the test voltage range for insulation resistance?
The test voltage range for insulation resistance testing is 50V to 1000V.
