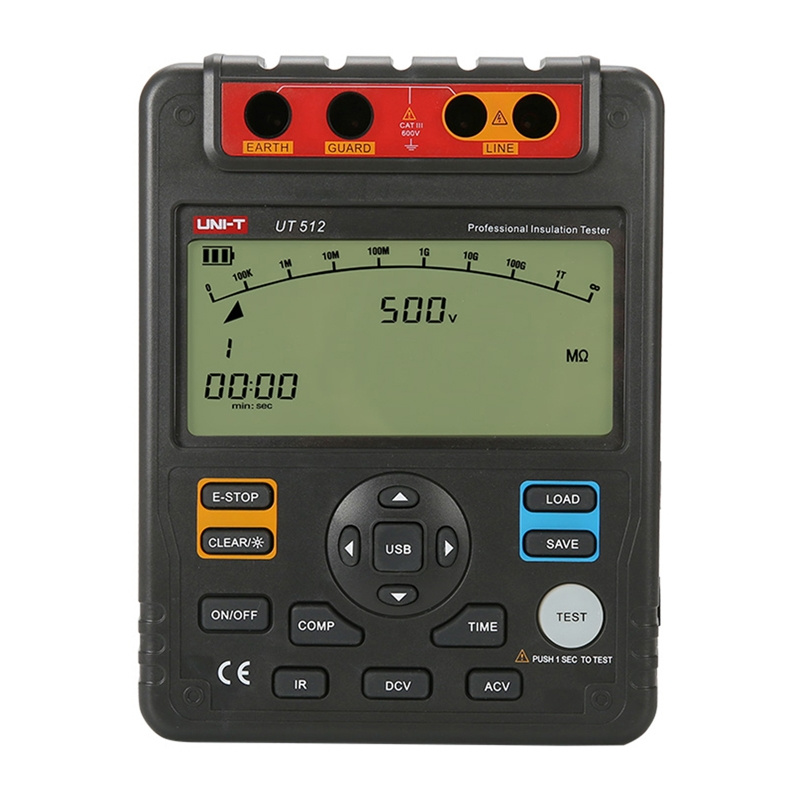

Uni-T UT512 High-Voltage Insulation Resistance Tester

Price: 159.20 €

Products ID:	176328
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750551202

Delivery options to:

Choose country

The Uni-T UT512 High-Voltage Insulation Resistance Tester is designed for testing and diagnosing electrical installations, transformers, generators, and high-voltage motors.

Key Features

Selectable test voltages: 500 V, 1000 V, and 2500 V with insulation resistance up to 100 GΩ
Built-in Polarization Index (PI) and Dielectric Absorption Ratio (DAR) measurement functions
Internal memory storing up to 18 data sets with USB PC connection
Backlit 9999-count display featuring a 30-segment analogue bar graph
Continuous measurement mode, auto power off, and automatic current discharge

Manufacturer	Uni-T
Model	UT512
Test voltages	500 V, 1000 V, 2500 V
Insulation resistance range	up to 100 GΩ
Measurement accuracy	up to ±(3%+5)
Data memory	18 sets
Display	9999 counts with 30-segment bar graph
Power supply	8 × 1.5V LR14 batteries or AC adapter
Dimensions	202 × 155 × 94 mm
Weight	approx. 1.8 kg
Certifications	CE, UKCA

What test voltages are supported by the Uni-T UT512?

The UT512 offers three test voltage options: 500 V, 1000 V, and 2500 V.

Can test data be exported to a PC?

Yes, the device stores up to 18 measurement sets and includes a USB cable and PC software for data transfer and analysis.

What items are included in the package?

The package includes the UT512 tester, one two-pin red test lead with alligator clip, two single-pin test leads with alligator clips, an AC adapter, a USB cable, a PC software CD, and 8 LR14 batteries.
