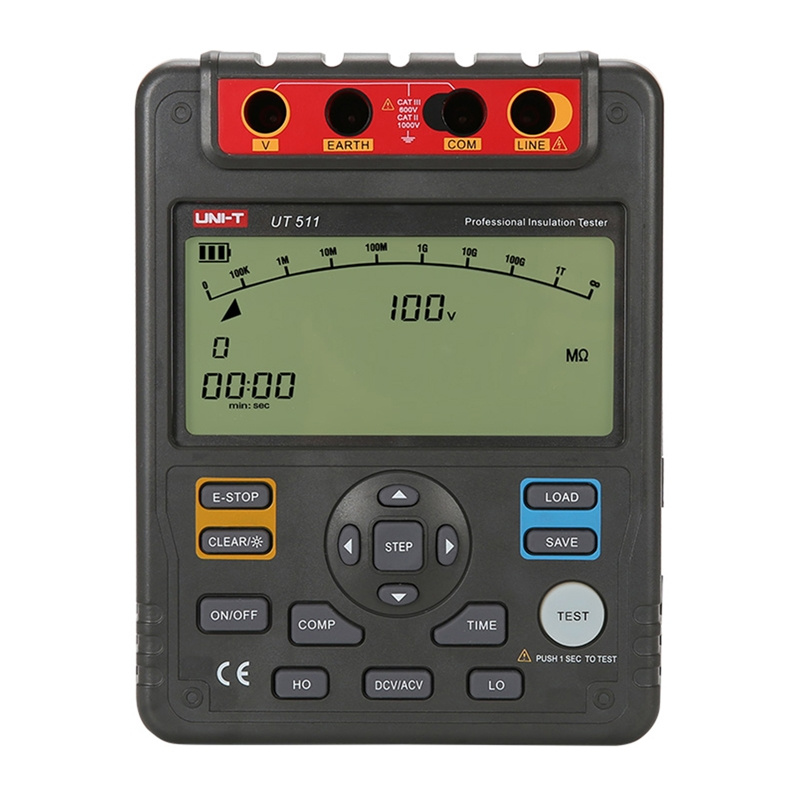

Uni-T UT511 High-Voltage Insulation Resistance Tester

120.70 € 124.30 € You save 3.60 € incl. VAT
In supplier warehouse · 10+ pcs.Delivery Time: 4–10 business days

Delivery options to:

Choose country

The Uni-T UT511 is a high-voltage insulation resistance tester designed for testing electrical installations, motors, and medium-voltage equipment with test voltages up to 1000 V and a measurement range up to 10 GΩ.

Key Features

  • Test voltage settings: 100 V, 250 V, 500 V, and 1000 V
  • Polarization Index (PI) and Dielectric Absorption Ratio (DAR) measurements
  • Built-in data storage for up to 18 measurement records
  • 9999-count display with a 30-segment analogue bar graph
  • Automatic discharge after testing and high-voltage indicator
  • Continuous mode and timed measurement up to approximately 30 minutes

ManufacturerUni-T
ModelUT511
Test voltages100 V / 250 V / 500 V / 1000 V
Insulation resistance rangeup to 10 GΩ
Accuracy±(3% + 5)
Display9999 counts + 30-segment bar graph
Data memory18 measurements
Power supply8 × 1.5 V (LR14)
Dimensions202 × 155 × 94 mm
Weightapprox. 1.2 kg
Package contentsUni-T UT511 tester, red two-pin test lead with alligator clip, 2 single-pin test leads with alligator clips, battery pack
EAN6935750551103
What test voltages are supported by the Uni-T UT511?

The device provides four test voltage levels: 100 V, 250 V, 500 V, and 1000 V.

How many measurement results can be stored in memory?

The Uni-T UT511 has internal memory capacity to store up to 18 measurement results.

What items are included in the package?

The package includes the Uni-T UT511 tester, a red two-pin test lead with alligator clip, two single-pin test leads with alligator clips, and a battery pack.
