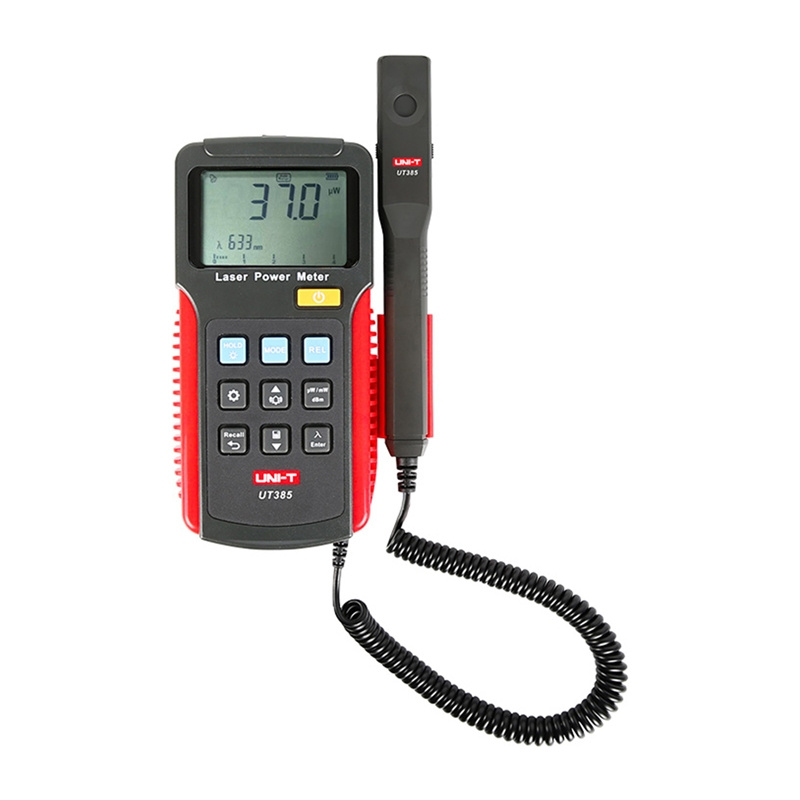

Uni-T UT385 Laser Power Meter

Price: 162.80 €

Products ID:	176329
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750538500

Delivery options to:

Choose country

The Uni-T UT385 is a laser power meter designed to measure laser beam power in the range from 0 µW to 39.99 mW across wavelengths from 400 nm to 1100 nm. Featuring a split-body design with a flexible sensor cable, it is suitable for testing, maintenance, and laboratory applications.

Key Features

Measurement range from 0 µW to 39.99 mW with 400–1100 nm wavelength support
Wavelength presets at 520 nm, 633 nm, 650 nm, and 780 nm
Backlit 4-digit LCD screen with a 0.5-second sampling rate
Data memory for up to 199 measurement sets
Threshold alarm function for monitoring preset limits
Split sensor design for convenient positioning

Manufacturer	Uni-T
Model	UT385
Measurement range	0 µW ~ 39.99 mW
Accuracy	0–10 µW: ±(5% + 0.3); 10 µW–39.9 mW: ±5%
Wavelength range	400 nm ~ 1100 nm
Wavelength presets	520 nm, 633 nm, 650 nm, 780 nm
Display	4-digit LCD, backlit
Sampling frequency	0.5 s
Data memory	199 sets
Operating temperature	0°C ~ 40°C
Operating humidity	≤80% RH (non-condensing)
Storage temperature	-10°C ~ 50°C
Power supply	9V battery (6F22)
Dimensions	198 × 104 × 35 mm
Weight	319 g
Certifications	CE, RoHS

What wavelength range does the Uni-T UT385 measure?

The meter supports wavelengths from 400 nm to 1100 nm, with presets for 520 nm, 633 nm, 650 nm, and 780 nm.

How many measurement sets can be stored in the memory?

The device has a data memory capacity of 199 sets.

What items are included in the package?

The package includes the Uni-T UT385 meter, a 9V battery, a USB cable, an English user manual, a document download guide, packaging, and a storage box.
